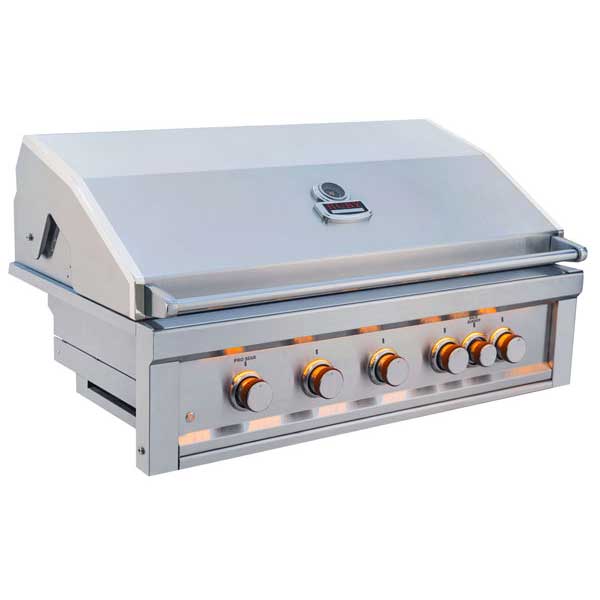

Sunstone Ruby 42" Pro-Sear Grill with Infrared Rear Burner and Rotisserie
The Sunstone Ruby 42" Pro-Sear is the largest Ruby gas grill, combining five main burners with a dedicated infrared rear burner and factory rotisserie system. It is intended for larger outdoor kitchens where the buyer wants multiple heat zones, broad grate space, and a separate rear heat source for rotisserie cooking.
Unlike the smaller standard Ruby configurations, the RUBY5BIR is built around the infrared/rotisserie package. It also carries the Ruby line's 304 stainless steel construction, Pro-Sear cooking hardware, illuminated controls, interior grill lighting, service-access panel, and heat-riser/spill-away warming-grid design.

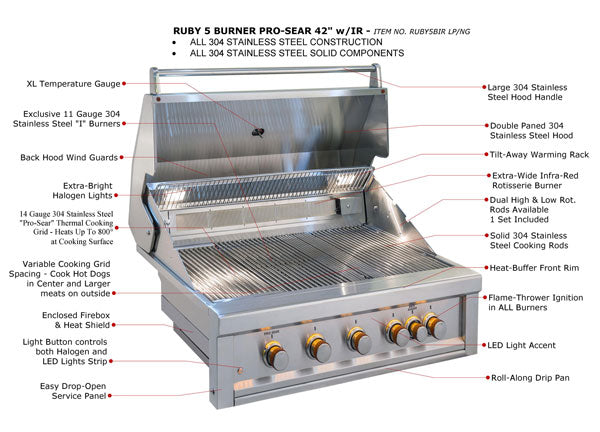

Key Features
- Five fabricated 304 stainless steel I-burners with 75,000 BTUs of total main-burner output
- 15,000-BTU extra-wide infrared rear burner

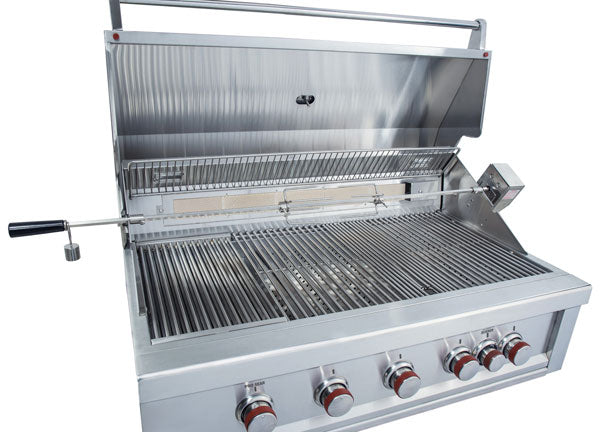

- Rotisserie rod and heavy-duty motor included
- 304 stainless steel grill body, hood, firebox, grates, and major structural components
- Pro-Sear cooking grate included

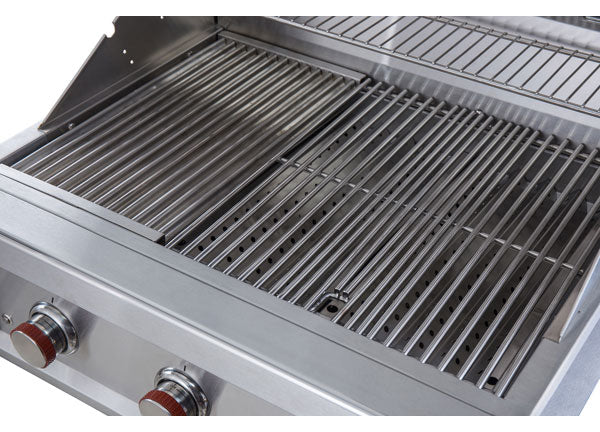

- Variable cooking-grid spacing

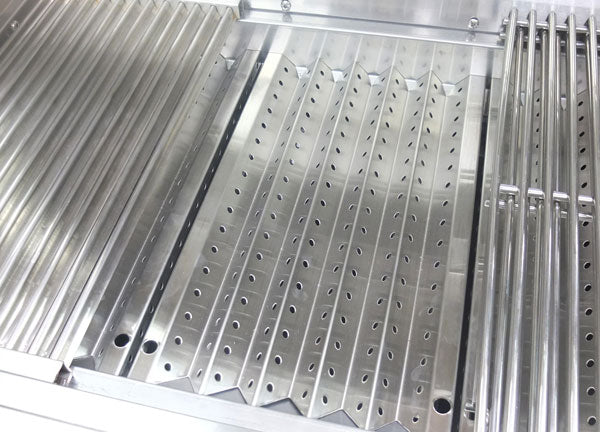

- Heat-riser and spill-away warming-grid design
- Flame-thrower ignition

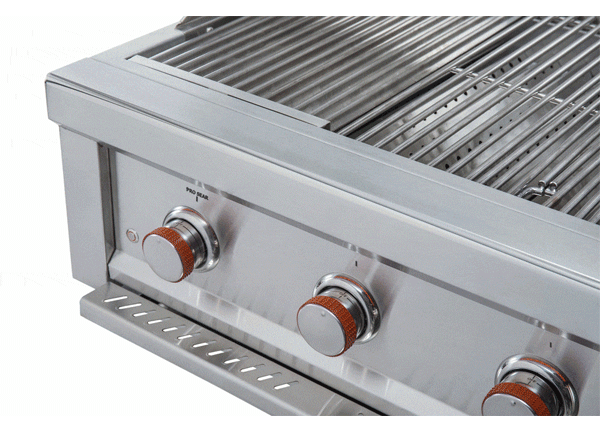

- LED control-panel lighting and bright interior grill lights
- Double-lined hood, wind guards, temperature gauge, roll-out drip tray, and drop-open service panel
Technical Specifications
| Brand | Sunstone |
|---|---|
| Series | Ruby Pro-Sear |
| Models | RUBY5BIR-LP / RUBY5BIR-NG |
| Fuel | Liquid propane or natural gas |
| Main Burners | 5 |
| Main Burner Output | 75,000 BTUs total |
| Infrared Rear Burner | 15,000 BTUs |
| Primary Cooking Area | 770.25 sq. in. |
| Warming Rack Area | 217.25 sq. in. |
| Total Cooking Area | 987.5 sq. in. |
| Cooking Grid | 39 1/2" W x 19 1/2" D |
| Overall Dimensions | 42" W x 27" D x 22" H |
| Cutout Dimensions | 39 1/2" W x 22" D x 10" H |
| Construction | 304 stainless steel |
| Pro-Sear Grate | Included |
| Rotisserie System | Included |
Installation & Ordering Notes
Order the LP or NG model to match the planned fuel supply. The Ruby 42" also uses electrical power for the lighting and rotisserie systems, so utility access should be planned before the island is finished.
Follow Sunstone’s current instructions for self-rimming support, enclosure ventilation, combustible clearances, gas connections, leak testing, and wind exposure. Do not rely on nominal grill width when building the opening; use the manufacturer specification sheet.
Manuals & Documentation
Warranty
Sunstone's Ruby Series manual lists limited lifetime coverage for the main burners, cooking grates, flavorizer grids, and stainless steel firebox/housing components under the stated warranty terms. Valves, knobs, lights, and other components have shorter coverage. Review the owner’s manual for complete warranty terms and exclusions.
Frequently Asked Questions
Is the infrared burner standard on the Ruby 42"?
Yes. The RUBY5BIR configuration includes a dedicated 15,000-BTU infrared rear burner.
Does the Ruby 42" include a rotisserie?
Yes. Sunstone lists the rotisserie rod and heavy-duty motor as included with the RUBY5BIR.
Is the Ruby 42" available for both propane and natural gas?
Yes. RUBY5BIR-LP is the propane model and RUBY5BIR-NG is the natural gas model.
What should be planned before installing the Ruby 42"?
Confirm the correct fuel version, electrical access for lighting and rotisserie equipment, enclosure ventilation, combustible clearances, and wind conditions using the current Sunstone documentation.
