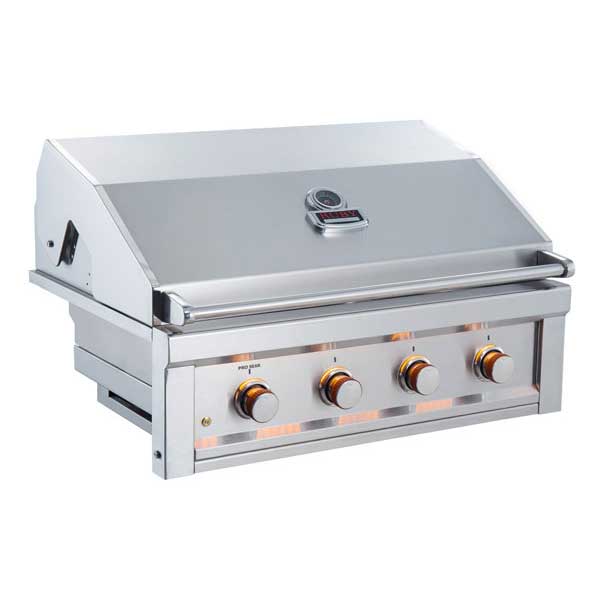

Sunstone Ruby 36" Pro-Sear 4-Burner Built-In Gas Grill

Sunstone Ruby 36" Pro-Sear Grill with Standard and Infrared Configurations

The Sunstone Ruby 36" Pro-Sear expands the Ruby platform to four main burners and a larger cooking surface. Backyard Patio Oasis offers both the standard RUBY4B configuration and the RUBY4B-IR version, allowing buyers to choose between the core four-burner setup or a factory infrared rear-burner/rotisserie configuration.

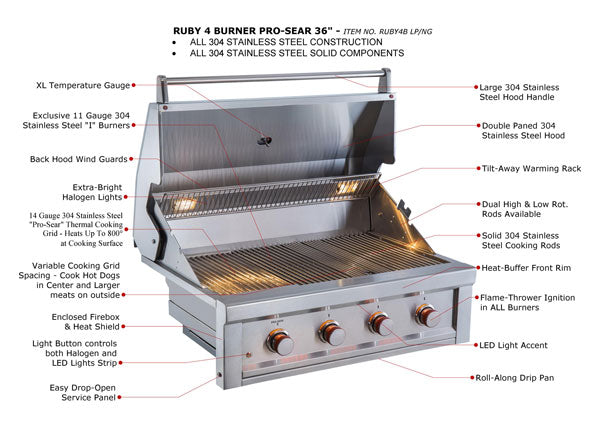

Both versions use 304 stainless steel construction, fabricated I-burners, Pro-Sear cooking hardware, LED control-panel lighting, interior grill lights, and Sunstone's heat-riser/spill-away warming-grid system.

Key Features

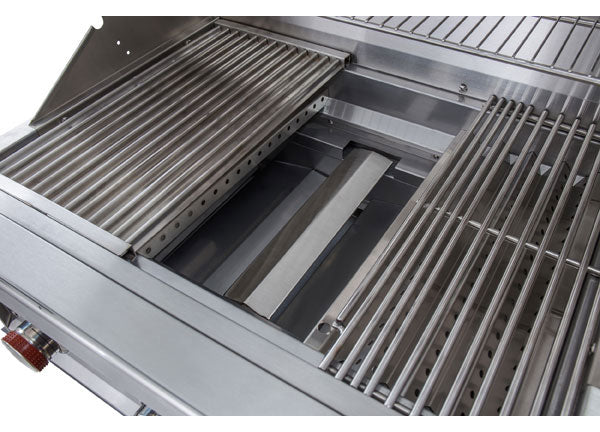

• Four fabricated 304 stainless steel I-burners producing 60,000 BTUs of main-burner output
• 304 stainless steel body, hood, firebox, grates, and major structural components

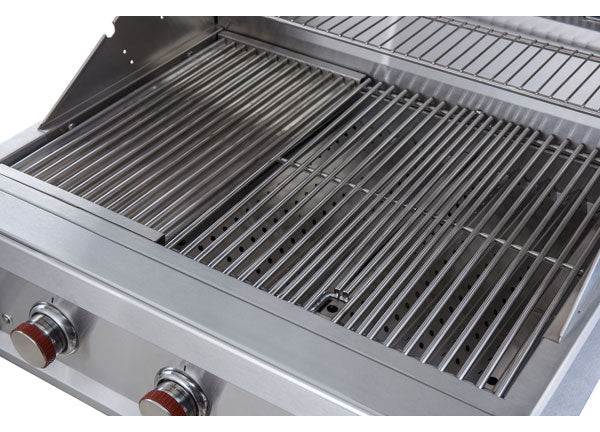

• Pro-Sear cooking grate included
• Variable cooking-grid spacing

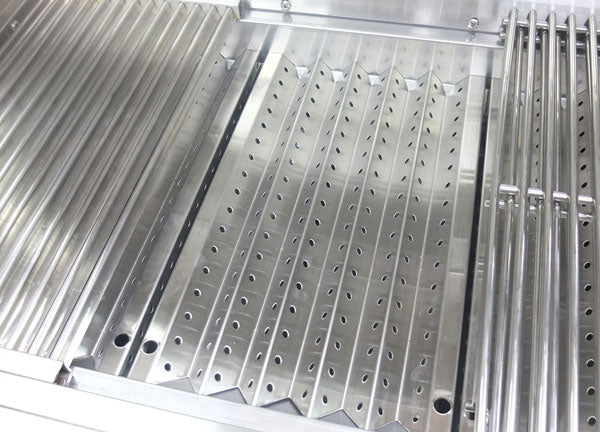

• Heat-riser and spill-away warming-grid design
• Flame-thrower ignition for the main burners
• LED control-panel lighting and bright interior grill lights
• Double-lined hood, wind guards, temperature gauge, and roll-out drip tray
• Drop-open service panel for access behind the controls

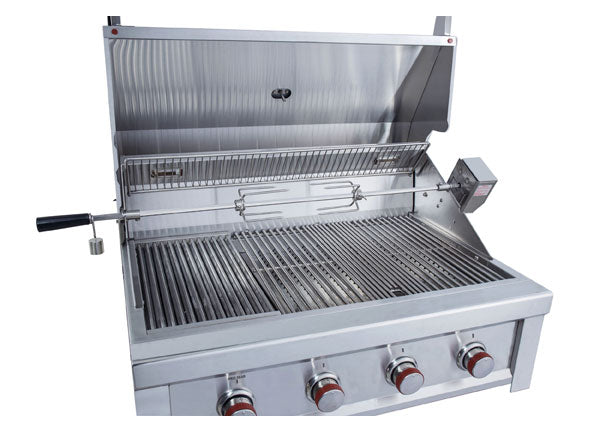

• RUBY4B-IR variants add a 15,000-BTU infrared rear burner plus rotisserie rod and heavy-duty motor

Technical Specifications

Installation & Ordering Notes

Choose the exact variant based on both fuel type and whether the infrared rear-burner/rotisserie configuration is wanted. Do not assume that the standard RUBY4B includes the rear infrared burner or rotisserie hardware.

Sunstone uses a self-rimming installation and requires attention to enclosure ventilation, combustible clearances, gas connection, electrical access for lighting, and prevailing wind. Follow the current Ruby Series manual and the specification sheet for the exact variant being installed.

Manuals & Documentation

• Sunstone Ruby Series Grill Owner's Manual
• Sunstone RUBY4B Specification Sheet
• Sunstone RUBY4B-IR Specification Sheet

Warranty

Sunstone's Ruby Series manual lists limited lifetime coverage for the main burners, cooking grates, flavorizer grids, and stainless steel firebox/housing components under the stated warranty terms. Other components have shorter coverage. Review the owner’s manual for the complete warranty conditions and exclusions.

Frequently Asked Questions

What is the difference between RUBY4B and RUBY4B-IR?

The standard RUBY4B is the four-main-burner version. The RUBY4B-IR configuration adds a 15,000-BTU infrared rear burner and includes the rotisserie rod and heavy-duty motor.

Can I order the Ruby 36" for propane or natural gas?

Yes. Both the standard and infrared configurations are offered in LP and NG versions. Select the factory fuel configuration that matches the installation.

Does every Ruby 36" include the rotisserie system?

No. The rotisserie system is included with the RUBY4B-IR configuration. Sunstone lists it as optional on the standard RUBY4B.

What installation details should be verified before ordering?

Verify fuel type, electrical access, enclosure ventilation, combustible clearances, and wind exposure using Sunstone’s current manual and the specification sheet for the selected variant.
