Fire Magic Legacy Deluxe 24" Built-In Gas Grill - 11-S1S1N/P-A
Gas Type
Fire Magic Legacy Deluxe 24" Built-In Gas Grill - 11-S1S1N/P-A
Propane
1802 Chico Avenue
1802 Chico Avenue
South El Monte CA 91733
United States
Compact Legacy Deluxe Grill for Existing Fire Magic Installations

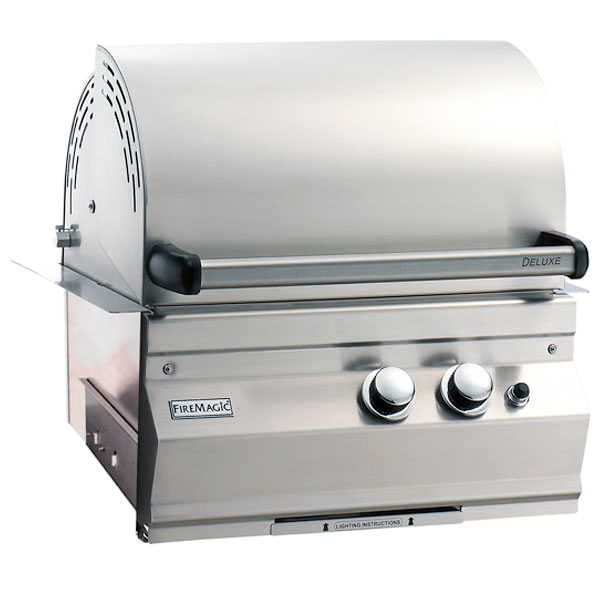

The Fire Magic Legacy Deluxe 11-S1S1 is a 24" built-in gas grill that remains listed in Fire Magic's current specification guide. Its 23" x 16" cooking surface provides 368 sq. in. of primary cooking space, and two cast stainless steel main burners produce 42,000 BTUs.
This model is especially relevant for replacing or matching an existing Legacy Deluxe installation because its cutout differs from current Choice and Aurora grills. Before ordering, verify the model number, fuel type, and existing opening rather than selecting a replacement by nominal grill width alone.
Key Features
- 368 sq. in. primary cooking surface: 23" W x 16" D
- Two cast stainless steel main burners
- 42,000 BTUs total main-burner output
- Stainless steel grill construction
- Available in natural gas and propane configurations
- Optional infrared burner capability is documented for the Legacy Deluxe family
Installation and Ordering Notes
Fire Magic's current specification guide lists a 24 3/4" W x 17 3/4" D x 12" H cutout for model 11-S1S1N(P)-A. Do not use the cutout dimensions for the 31-S1S1 Deluxe Classic or 3C-S1S1 Deluxe Gourmet models; those are different Legacy products.
For installations that require an insulating liner, Fire Magic currently lists liner 3100-51 for the Deluxe Built-In Grill. Follow the current liner instructions and applicable Fire Magic installation requirements.
Technical Specifications
| Brand | Fire Magic |
|---|---|
| Series | Legacy Deluxe |
| Natural Gas Model | 11-S1S1N-A |
| Propane Model | 11-S1S1P-A |
| Main Burners | 2 cast stainless steel burners |
| Main Burner Output | 42,000 BTU total |
| Primary Cooking Area | 368 sq. in. (23" x 16") |
| Cutout | 24 3/4" W x 17 3/4" D x 12" H |
| Maximum Overall Width | 28" |
| Maximum Overall Depth | 23 1/4" |
| Compatible Insulating Liner | 3100-51, when required |
Manuals & Documentation
- Fire Magic Product Specifications Guide
- Fire Magic Legacy Manuals Directory
- Fire Magic Warranty Information
Warranty
Fire Magic's current warranty provides lifetime coverage for cast stainless steel burners, stainless steel cooking grids, and stainless steel housings for the original purchaser under the stated residential-use terms. Other components have separate coverage periods. Review the current Fire Magic warranty for complete terms and exclusions.
FAQ
Is the Legacy Deluxe 11-S1S1 still recognized by Fire Magic?
Yes. Fire Magic's current specifications guide continues to list 11-S1S1N(P)-A as the 24" Deluxe Built-In Grill.
What is the cutout for the 11-S1S1?
The current Fire Magic specifications guide lists 24 3/4" W x 17 3/4" D x 12" H.
Is 11-S1S1 the same as 31-S1S1?
No. The 11-S1S1 is the Deluxe Built-In Grill. The 31-S1S1 is a different Legacy Deluxe Classic model with different dimensions.
Which insulating liner is listed for the Deluxe Built-In Grill?
Fire Magic currently lists insulating liner 3100-51.
