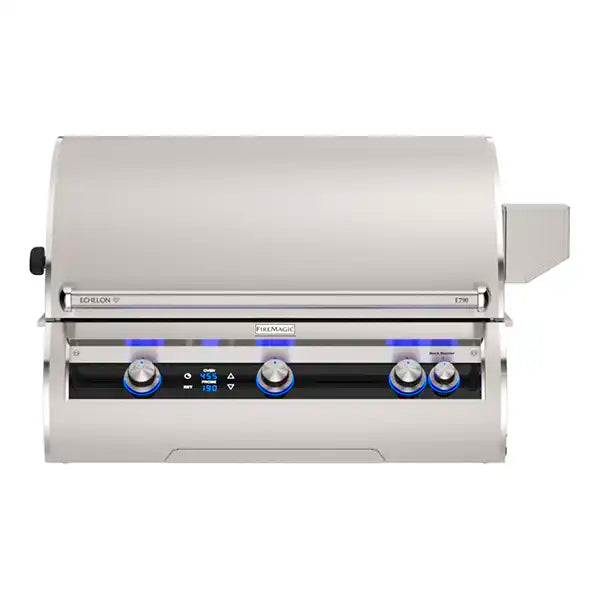

Echelon E790i Built-In Grill
The Fire Magic Echelon E790i is a 36" built-in gas grill engineered for serious outdoor kitchens. Built in the USA from 304 stainless steel, it combines 3 cast stainless steel E-burners (93,000 BTUs total) with a 13,000 BTU back-burner for rotisserie cooking, all managed through a contoured control panel with back-lit safety knobs and a four-zone illuminated digital thermometer with meat probe.

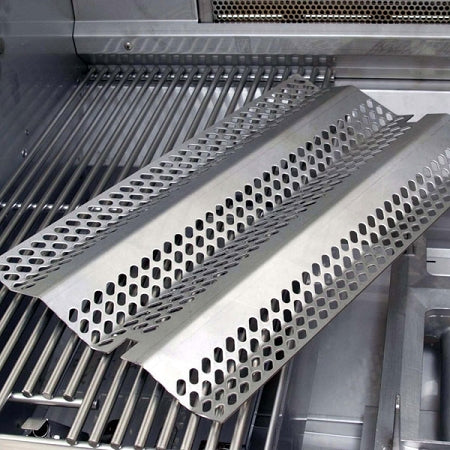

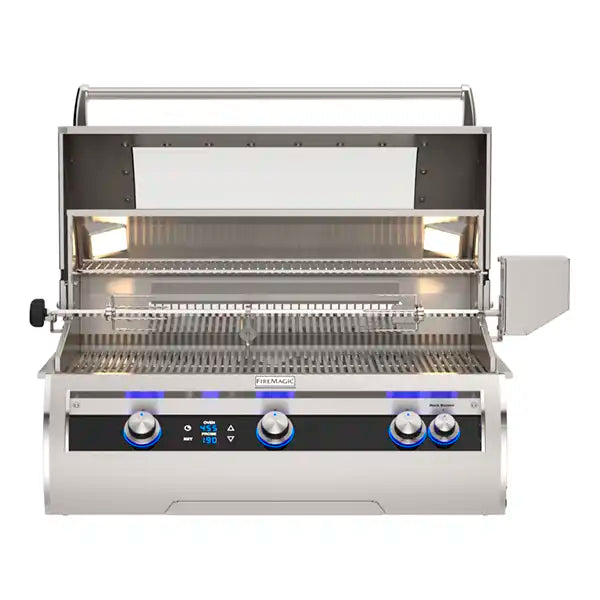

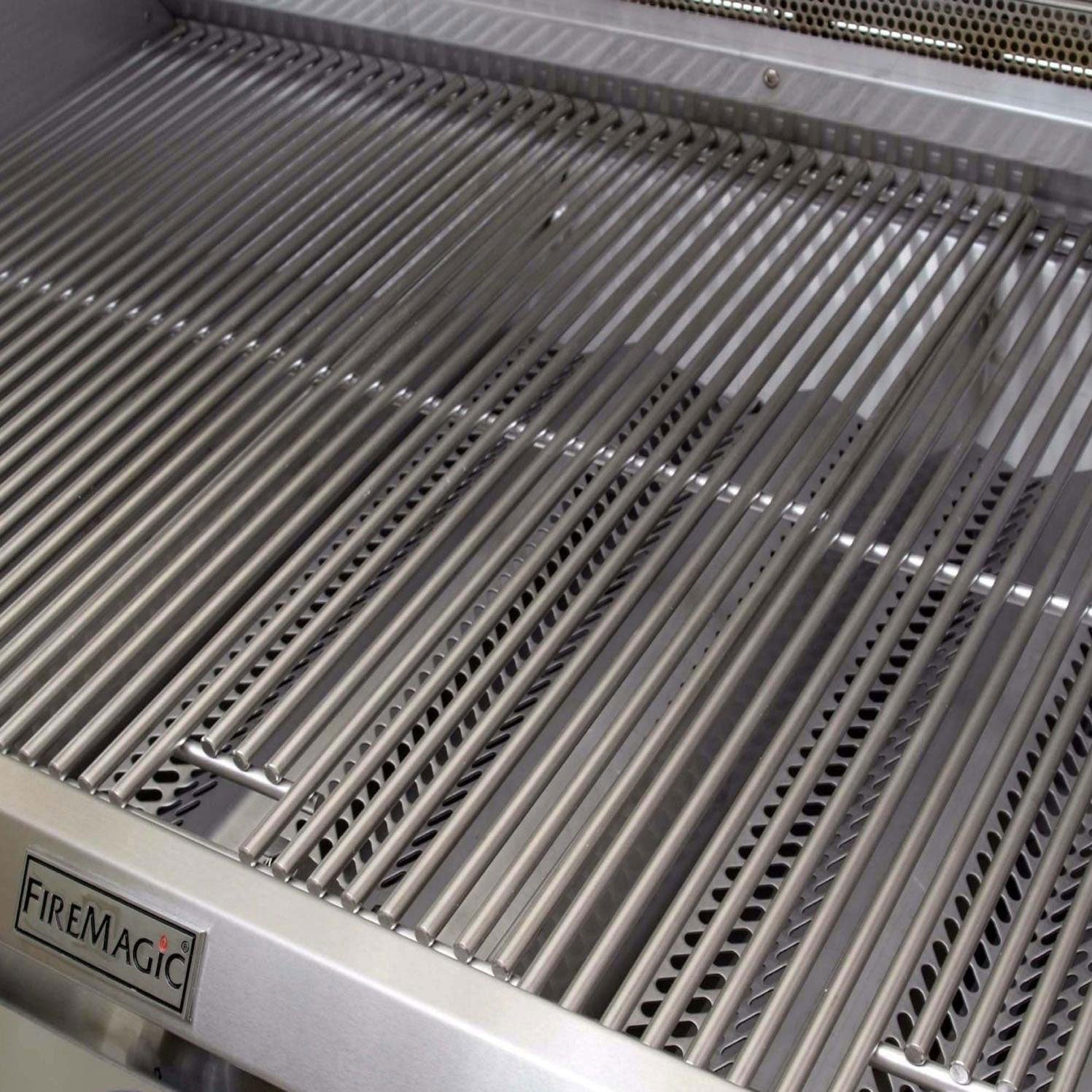

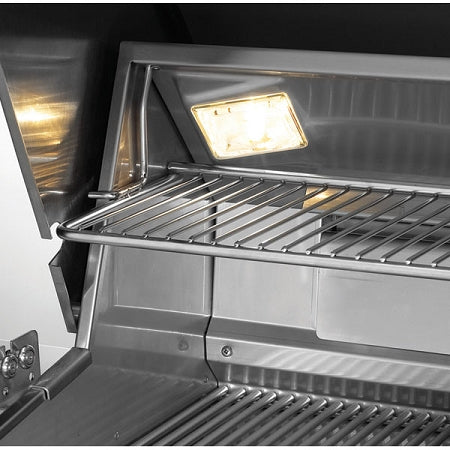

The 792 sq. in. primary cooking surface (36" x 22") is lined with 16-gauge stainless steel flavor grids and all stainless steel cooking grids for high-heat searing and even browning. A 288 sq. in. warming rack (36"w x 8"d) keeps food staged and ready. Halogen lamps make evening grilling practical without additional task lighting.
Key Specs
- Primary cooking surface: 792 sq. in. (36" x 22")
- Warming rack: 288 sq. in. (36" x 8")
- 3 primary burners: 93,000 BTUs total
- Back-burner: 13,000 BTUs

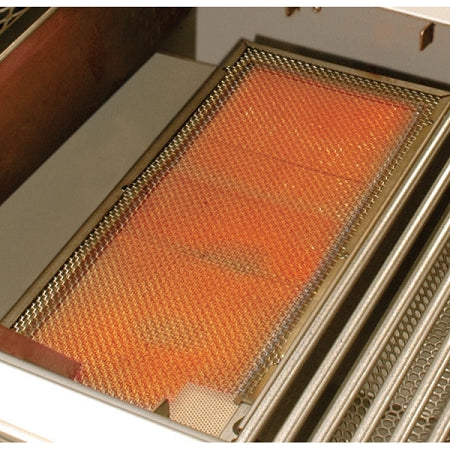

- Burner options: All cast stainless steel E-burners OR one infrared burner (factory-installed, left side)
- Construction: 304 stainless steel, Made in USA
- Power: 110V required
- Rotisserie kit: Included
- Optional: Magic View Window
- Cutout dimensions: 37"W x 23 1/2"D x 11 1/2"H
- Grill dimensions: 29 3/4"L x 37"W x 27"H
- Fuel: Natural Gas or Propane
Key Features
- Four-zone illuminated digital thermometer with meat probe for precise temperature management
- State-of-the-art under-glass electronic thermometer display

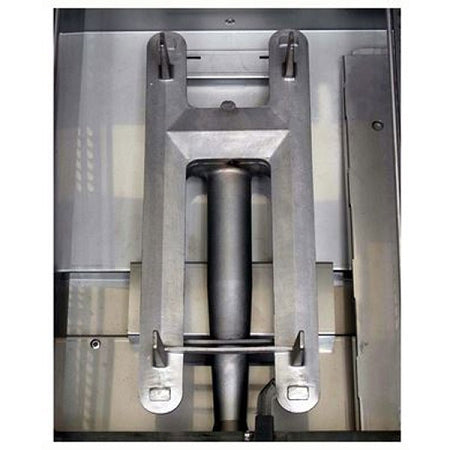

- Cast stainless steel E-burners built for high-heat grilling and long-term durability
- Heat zone separators for multi-zone cooking control
- Back-lit safety knobs and halogen lamps for nighttime use

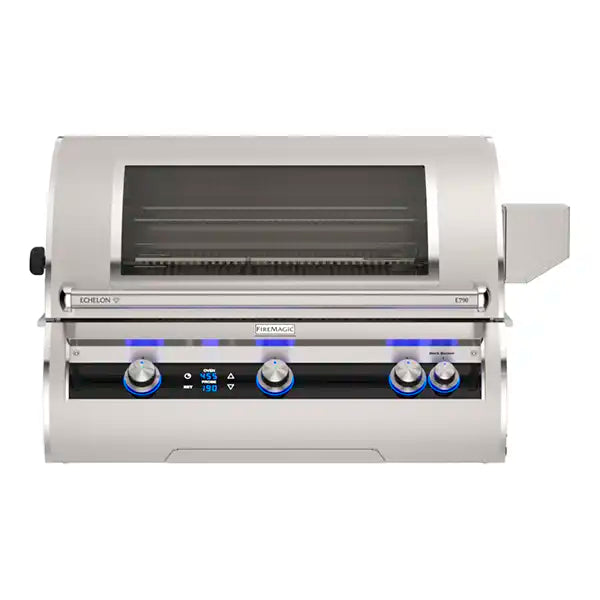

- Optional Magic View Window to monitor food without lifting the hood

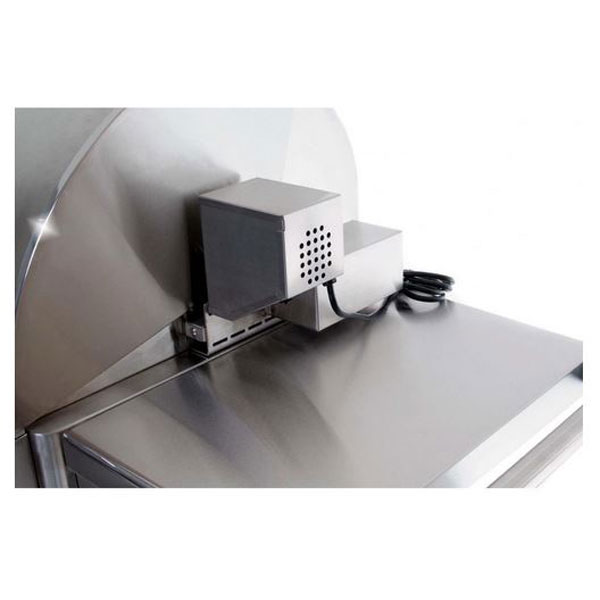

- Rotisserie kit included with 13,000 BTU back-burner
Practical Note
This grill requires a 110V power source for the digital thermometer and lighting. If you are building a new island, confirm electrical access and whether your configuration includes the Magic View Window, as it affects cutout planning and clearances.
