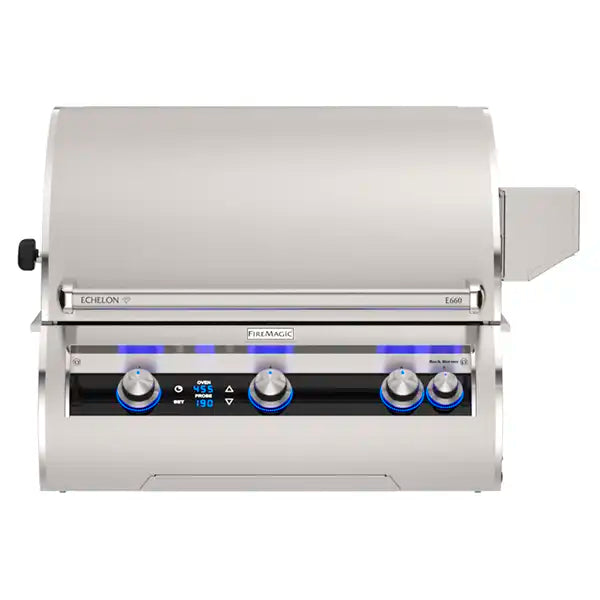

Fire Magic Echelon E660i Built-In Grill - Rotisserie & Digital Thermometer
Feature: A 30" built-in Fire Magic Echelon grill with a digital thermometer and Bluetooth-enabled control, designed for outdoor kitchens that want precise heat management, strong searing, and refined nighttime usability.
Burner Style
Gas Type

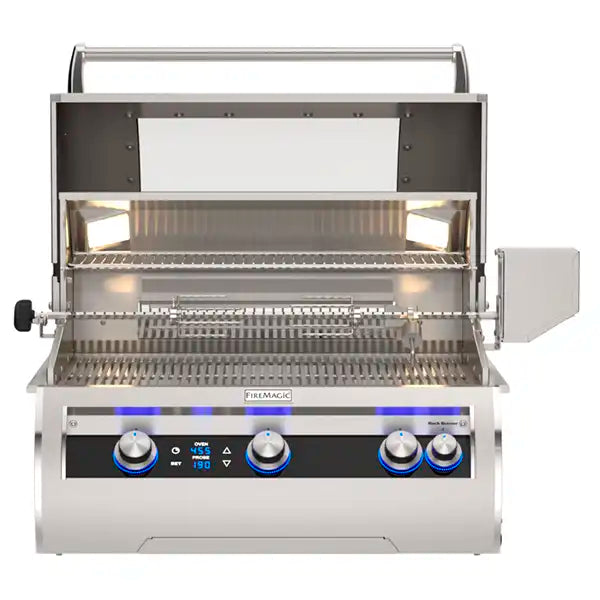

Magic View Window
Fire Magic Echelon E660i Built-In Grill - Rotisserie & Digital Thermometer
All Cast Stainless Steel Burners / Natural Gas (NG) / With Window
1802 Chico Avenue
1802 Chico Avenue
South El Monte CA 91733
United States
Fire Magic Echelon Diamond E660i Digital Built-In Outdoor Cooking
Fire Magic Echelon Diamond E660i Digital is a Echelon Diamond built-in grill designed for permanent outdoor-kitchen installations. It provides 660 sq. in. of primary cooking space with 75,000 BTU of main cooking power. The page covers multiple factory configurations, so the exact fuel, burner package, backburner, window, and thermometer options should be confirmed from the selected SKU before ordering.
What Sets This Model Apart

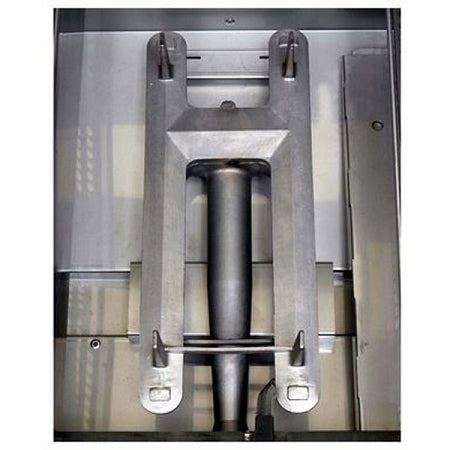

- 3 cast stainless steel main burners
- 660 sq. in. primary cooking area
- 288 sq. in. warming area
- 11,000 BTU

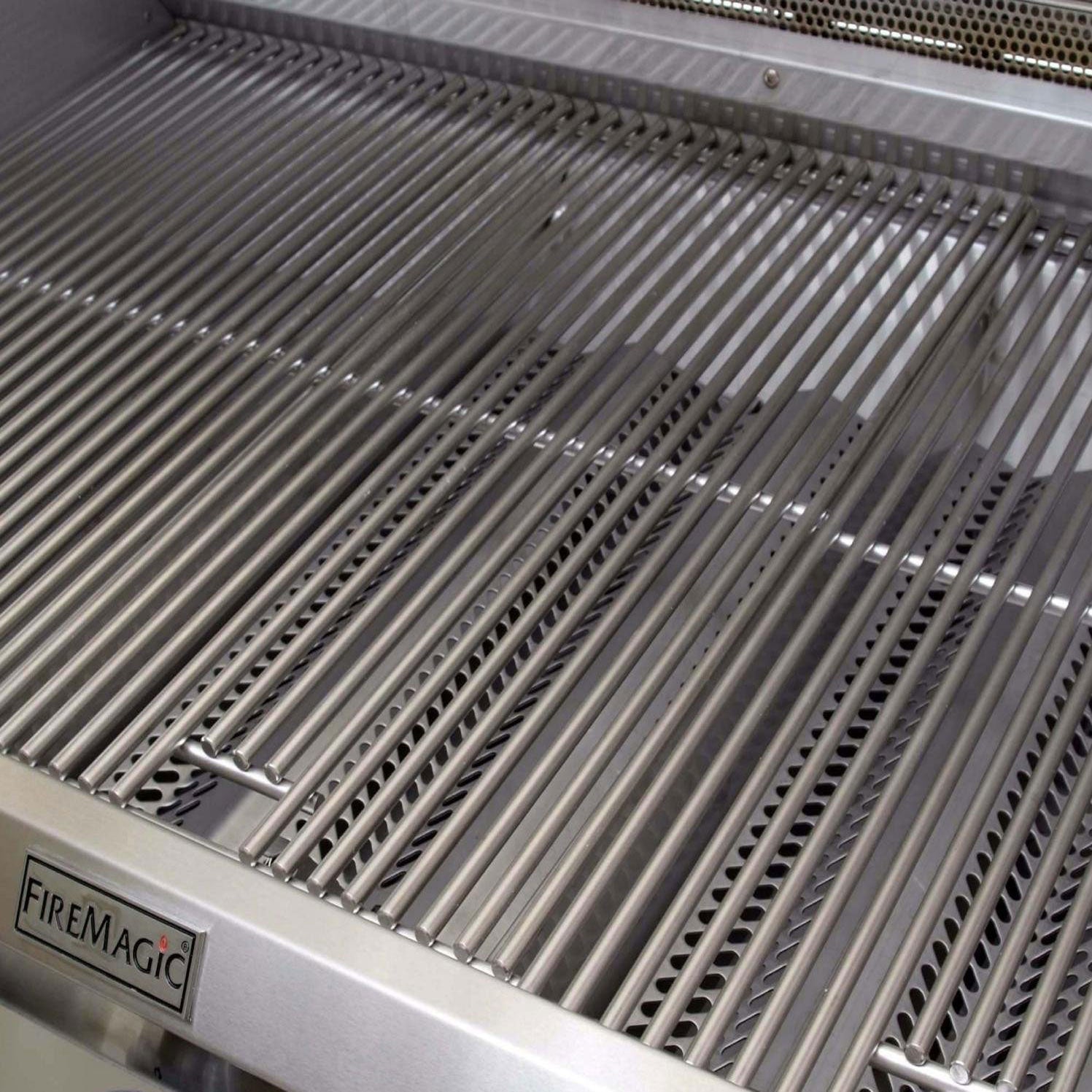

- Fire Magic stainless-steel construction with Diamond Sear cooking grids on Aurora/Echelon configurations where specified by Fire Magic
- Digital underglass touchscreen with smart monitoring temperature monitoring
Variant and Ordering Notes

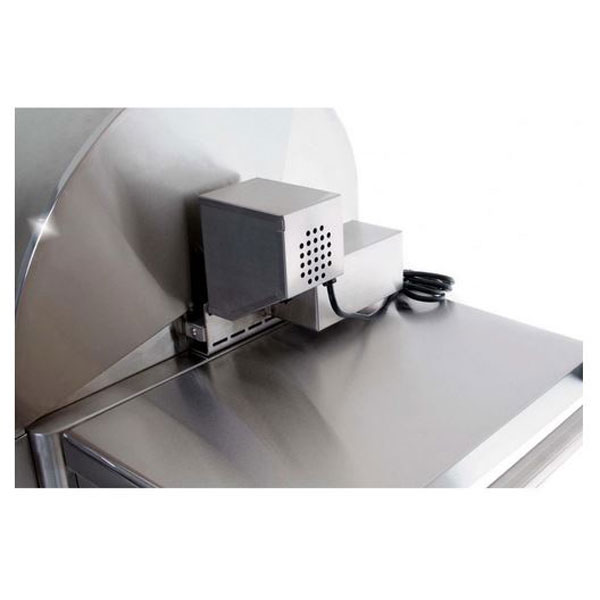

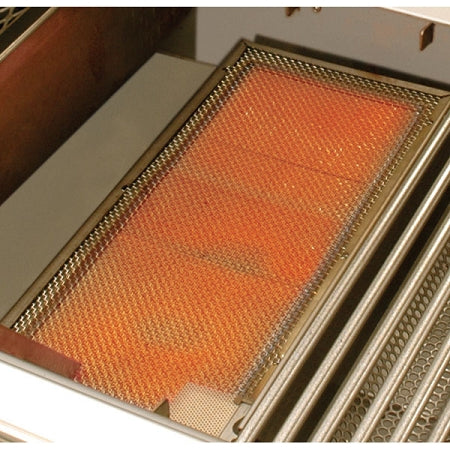

All listed E660i 9-series variants include the rotisserie backburner; E/L in the SKU identifies all cast stainless main burners versus one infrared searing burner, and W identifies the Magic View Window option. Natural-gas and propane versions use distinct model codes. Confirm the exact SKU shown in the selected variant before ordering.
Technical Specifications
| Series | Echelon Diamond |
|---|---|
| Nominal Size | 30" |
| Primary Cooking Area | 660 sq. in. |
| Warming Area | 288 sq. in. |
| Main Burner Output | 75,000 BTU |
| Backburner / Secondary Heat | 11,000 BTU |
| Cutout | 31 1/4" W x 23 1/2" D x 11 1/2" H |
Installation & Ordering Notes
Use the current Fire Magic owner manual for enclosure ventilation, clearances, gas supply, electrical requirements, and combustible-construction rules. Where Fire Magic requires an insulating liner, use the model-specific liner listed in the current manufacturer documentation. Do not build the island opening from the advertised grill width alone.
Manuals & Documentation
- Fire Magic Echelon Diamond Owner / Installation Manual
- Fire Magic Product Specifications Guide
- Fire Magic Current Product Catalog & Warranty Highlights
Warranty
Fire Magic's current residential warranty provides lifetime coverage on cast stainless-steel burners, stainless-steel cooking grids, and stainless-steel housings, with different coverage periods for valves, liners, backburners, infrared burners, ignition systems, electronics, and other components. Coverage is subject to Fire Magic's current written warranty terms and proof-of-purchase requirements.
FAQ
How do I choose the correct Fire Magic variant?
Match the selected SKU to the required fuel and factory options. Fire Magic model codes distinguish natural gas versus propane, burner configuration, thermometer type, backburner package, and certain window options.
Can I use the advertised grill width for the island cutout?
No. Use the current Fire Magic cutout dimensions and installation manual for the exact model.
