Fire Magic Echelon Diamond E660i A-Series Gas Grill - Rotisserie & Analog Thermometer

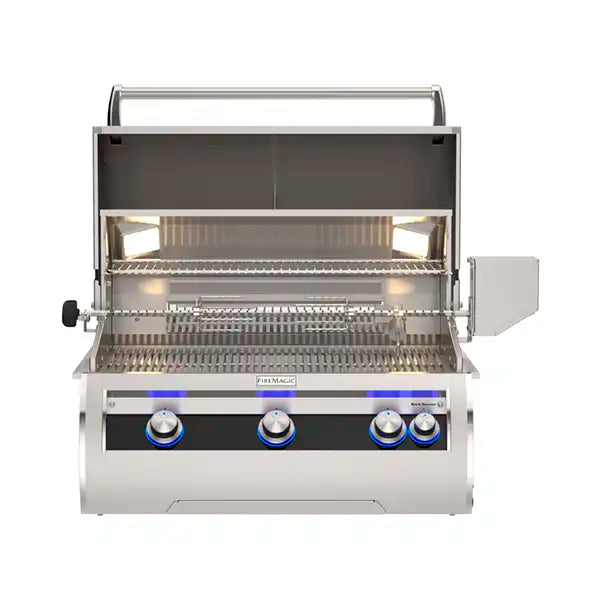

Echelon Diamond E660i A-Series Built-In Grill (Analog Thermometer)

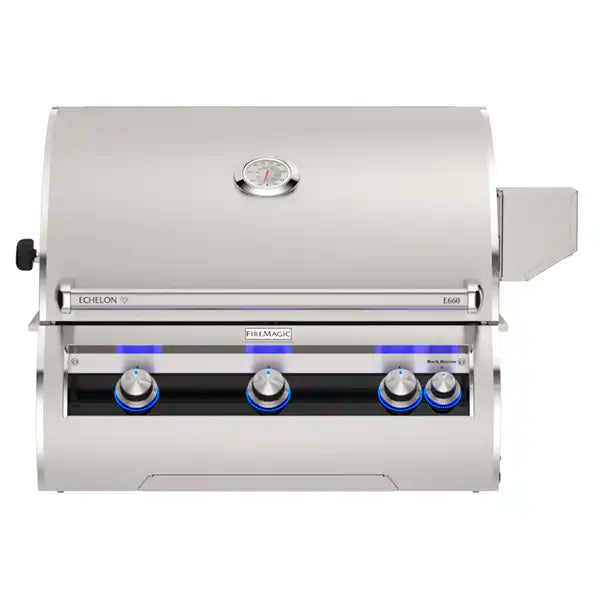

The Fire Magic Echelon Diamond E660i A-Series is a 30" built-in gas grill built for outdoor kitchens that want serious heat output and a clean, analog-controlled cooking experience. Made in the USA from 304 stainless steel, it runs 3 cast stainless steel E-burners (75,000 BTUs total) with an 11,000 BTU back-burner for rotisserie cooking, all managed through a contoured control panel with back-lit safety knobs and an analog thermometer with polished bezel.

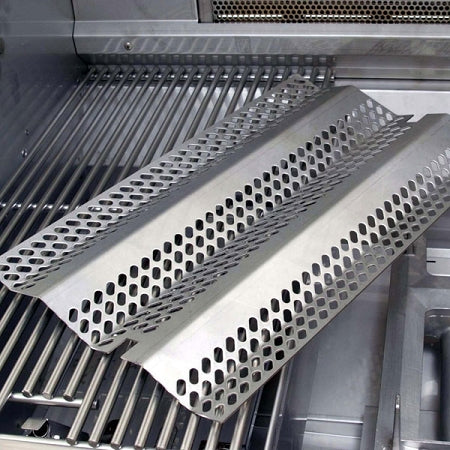

The 660 sq. in. primary cooking surface (30" x 22") is paired with Diamond Sear cooking grids and 16-gauge stainless steel flavor grids for high-heat searing and even browning. A 288 sq. in. warming rack (30"w x 8"d) keeps food staged and ready. Two angled halogen lamps and a 90-degree double-walled hood round out a grill built for serious evening cooks.

Key Specs

• Primary cooking surface: 660 sq. in. (30" x 22")
• Warming rack: 288 sq. in. (30" x 8")
• 3 primary burners: 75,000 BTUs total
• Back-burner: 11,000 BTUs
• Wood chip smoker: 3,000 BTU dedicated burner

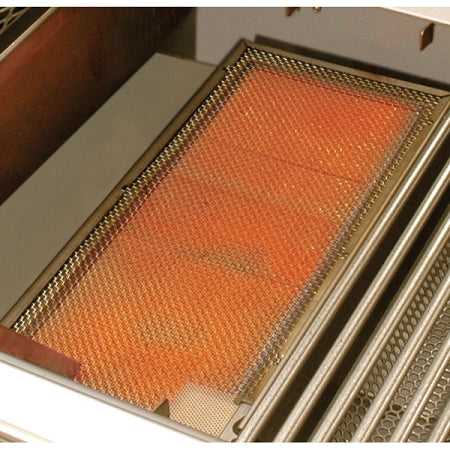

• Burner options: All cast stainless steel E-burners OR one infrared burner (factory-installed, left side)
• Analog thermometer with polished bezel
• Construction: 304 stainless steel, Made in USA
• Rotisserie kit: Included
• Optional: Magic View Window (note: analog thermometer is replaced with portable thermometer when window is selected)
• Grill dimensions: 33 3/4"L x 26"W x 27"H
• Cutout dimensions: 31 1/4"W x 23 1/2"D x 11 1/2"H
• Fuel: Natural Gas or Propane

Key Features

• Analog thermometer with polished bezel for at-a-glance heat monitoring

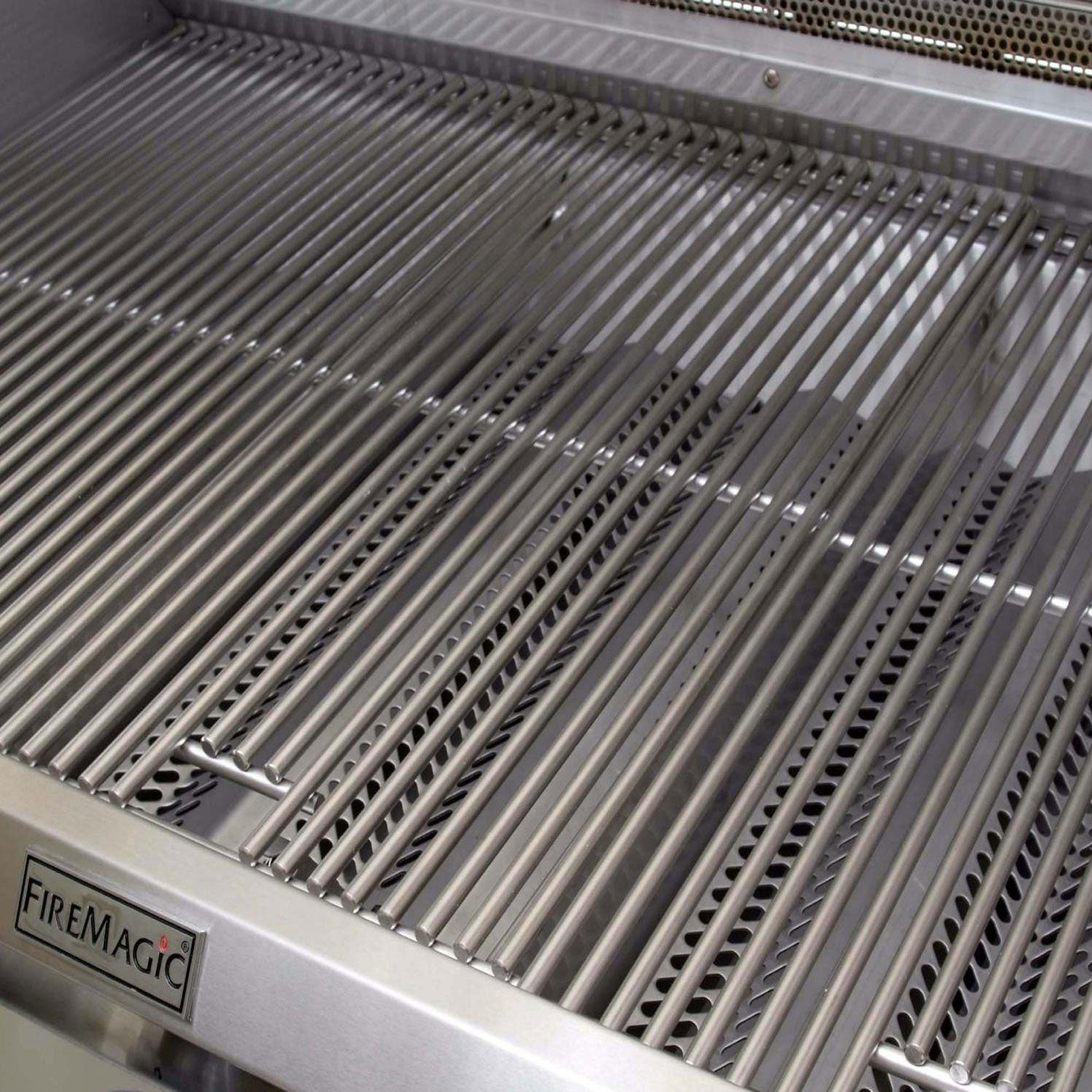

• Diamond Sear cooking grids with patented flat-top bar design for superior searing
• Wood chip smoker with dedicated 3,000 BTU burner for low-and-slow cooking

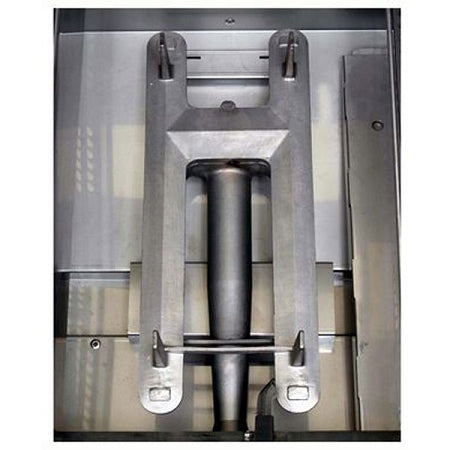

• Cast stainless steel E-burners built for high-heat grilling and long-term durability
• Heat zone separators for independent multi-zone cooking control

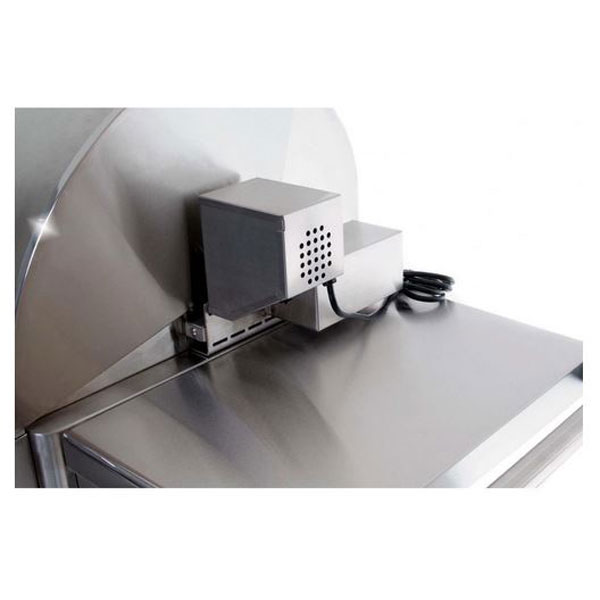

• 11,000 BTU recessed infrared back-burner with rotisserie kit included
• 90-degree double-walled hood for superior heat retention

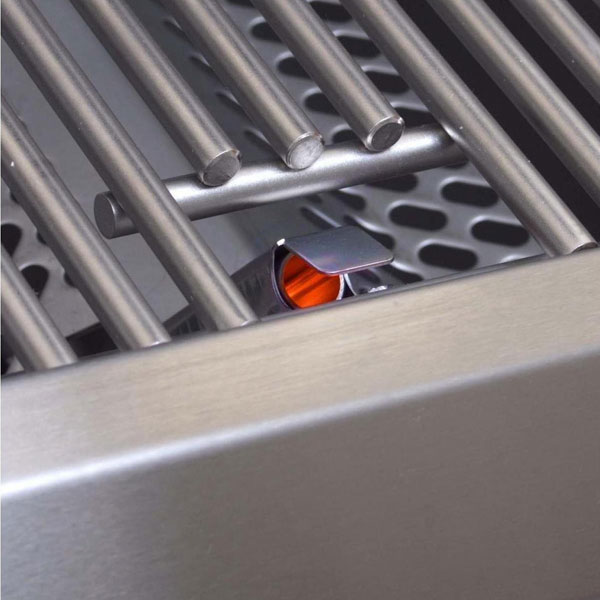

• Back-lit safety knobs and halogen lamps for nighttime use
• Echelon drip tray for easy cleanup

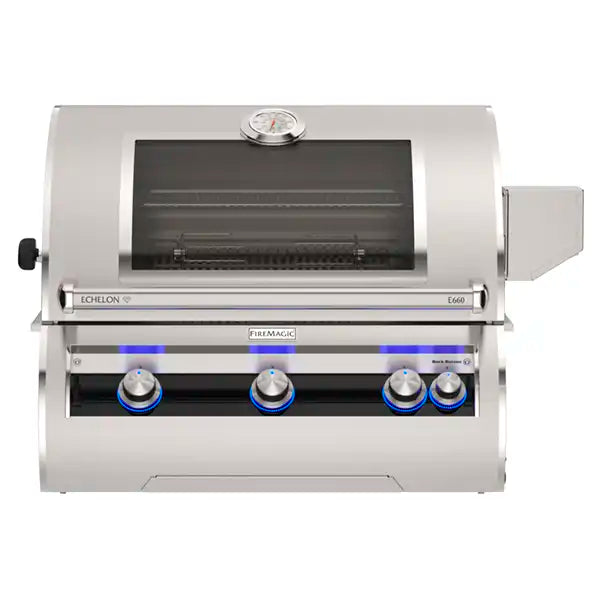

• Optional Magic View Window to monitor food without lifting the hood

Practical Note

If you select the Magic View Window option, the analog thermometer is replaced with a portable thermometer that can be viewed through the window. Confirm this before ordering if thermometer placement matters for your island design. This model ships LTL freight and does not qualify for standard free shipping.
