Fire Magic Echelon Diamond E1060i Gas Grill - Rotisserie & Digital Thermometer

Echelon Diamond E1060i Built-In Grill (Digital Thermometer)

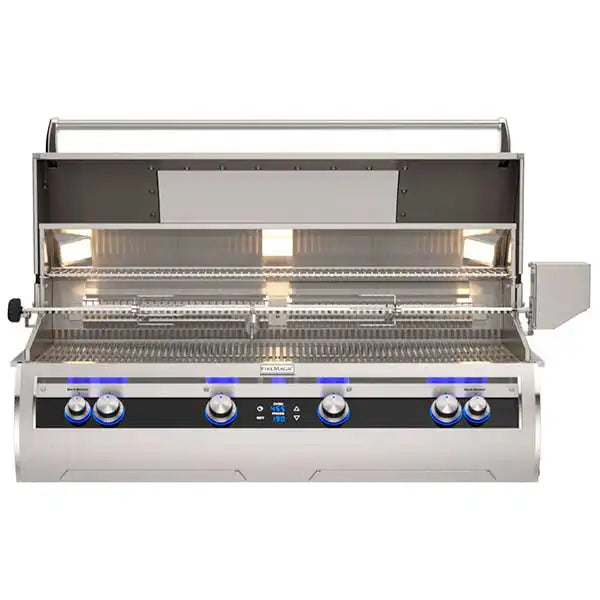

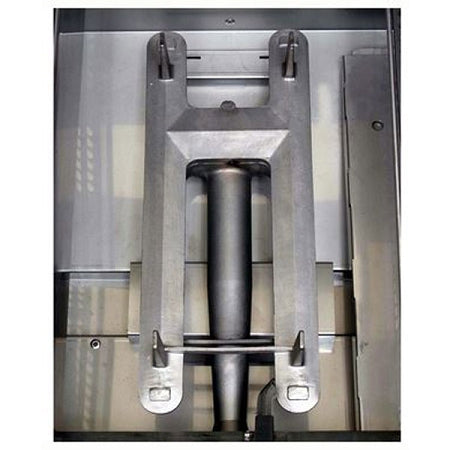

The Fire Magic Echelon Diamond E1060i is a 48" built-in gas grill built for large outdoor kitchens that demand serious output. Made in the USA from 304 stainless steel, it runs 4 cast stainless steel E-burners (112,000 BTUs total) backed by two 11,000 BTU rotisserie back-burners (22,000 BTUs combined), all controlled through a contoured panel with back-lit safety knobs and a four-zone illuminated digital thermometer with meat probe.

The 1,056 sq. in. primary cooking surface (48" x 22") pairs with a 288 sq. in. warming rack and 16-gauge stainless steel flavor grids for high-heat searing across multiple zones. A dedicated wood chip smoker with a 3,000 BTU burner adds low-and-slow capability. Halogen lamps and back-lit controls keep the cook going well after dark.

Key Specs

• Primary cooking surface: 1,056 sq. in. (48" x 22")
• Warming rack: 288 sq. in.
• 4 primary burners: 112,000 BTUs total
• 2 back-burners: 22,000 BTUs total (11,000 BTUs each)
• Wood chip smoker: 3,000 BTU dedicated burner

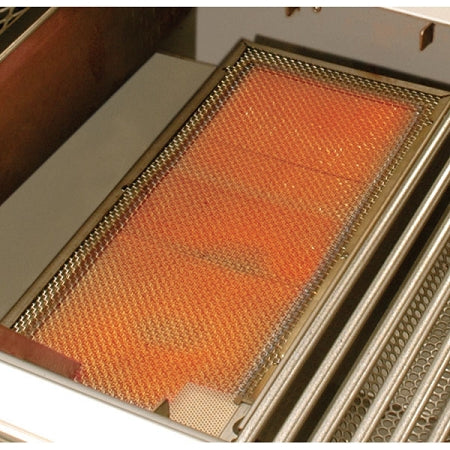

• Burner options: All cast stainless steel E-burners OR one infrared burner (factory-installed, left side)
• Construction: 304 stainless steel, Made in USA
• Power: 110V required

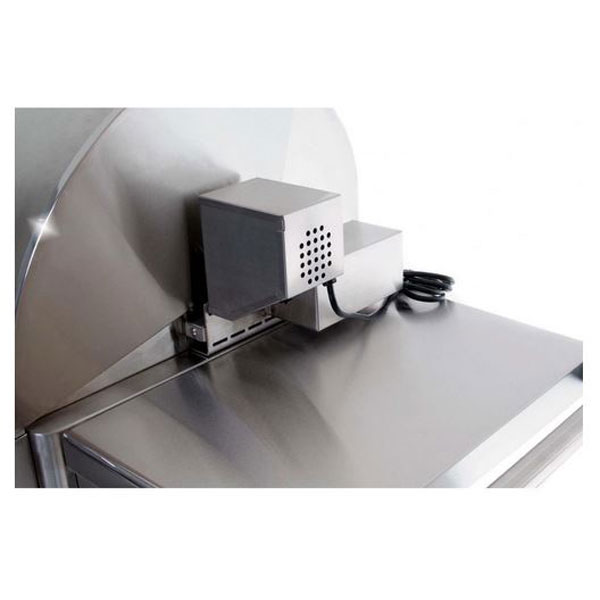

• Rotisserie kit: Included
• Optional: Magic View Window
• Cutout dimensions: 50"W x 23 1/2"D x 12"H
• Fuel: Natural Gas or Propane

Key Features

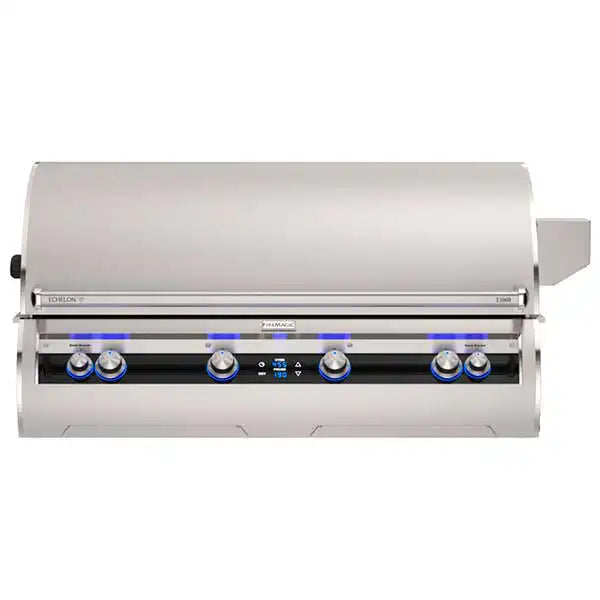

• Four-zone illuminated digital thermometer with meat probe for precise temperature management
• Bluetooth smart control for remote monitoring
• Wood chip smoker with dedicated 3,000 BTU burner for low-and-slow cooking

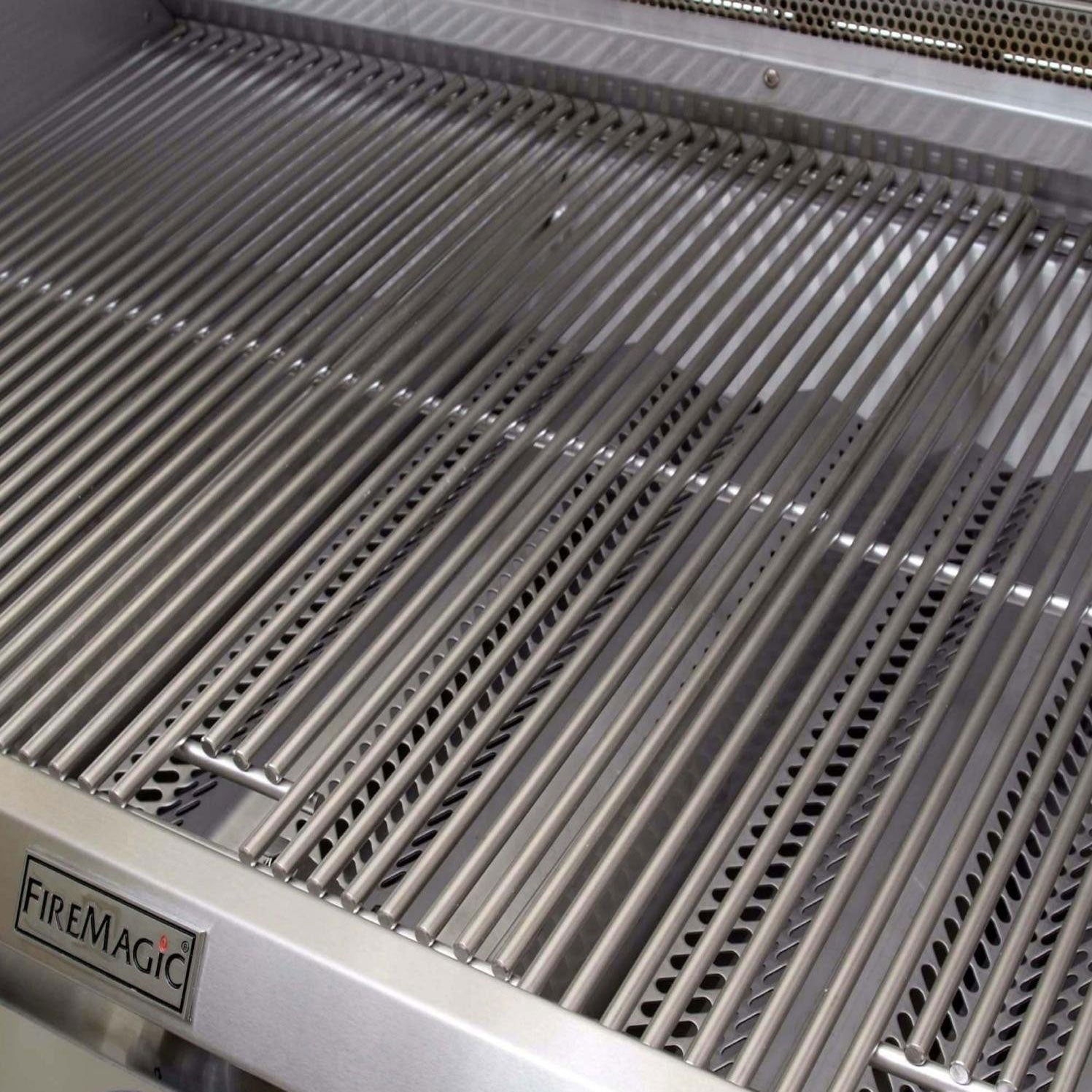

• Patented Diamond Sear cooking grids for superior searing and browning
• Heat zone separators for independent multi-zone control
• Echelon drip tray and grid lifter for easy cleanup

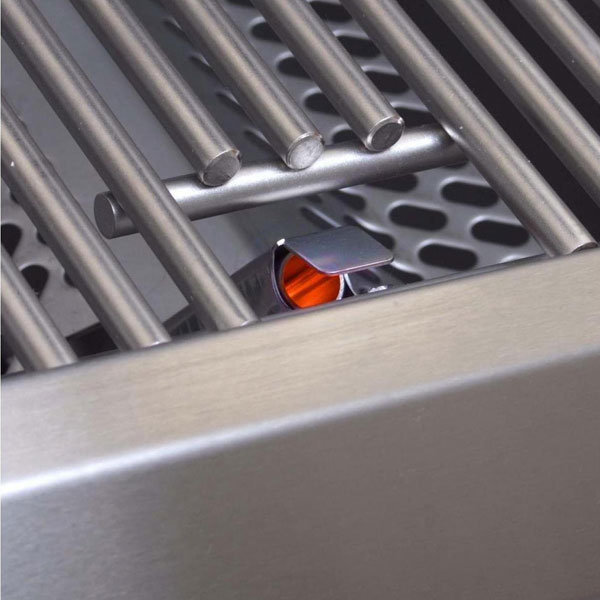

• Back-lit safety knobs and halogen lamps for nighttime use

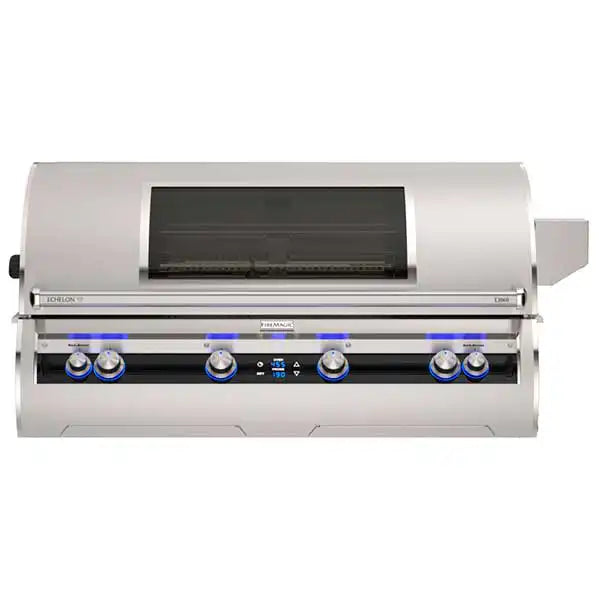

• Optional Magic View Window to monitor food without lifting the hood

Practical Note

This grill requires a 110V power source for the digital thermometer and lighting. If you are building a new island, confirm electrical access and whether your configuration includes the Magic View Window, as it affects cutout planning and clearances. This model ships LTL freight and does not qualify for standard free shipping.

Freight Delivery Details

Freight delivery is required when packages exceed the limits of small parcel carriers (i.e. FedEx, UPS, and USPS etc.), either by size and/or weight of 150 lbs or more. All such packages will be shipped via a freight truck carrier.

• The shipping company will contact you at the phone number you provided to schedule a delivery time for your package.
• If for any reason, you miss your delivery without notifying the delivery service provider, you will be responsible for contacting and rescheduling a new delivery date and time. And, you will be responsible for any additional cost, such as; any reschedule delivery charges.
• When your shipment is in your local area, a representative from the delivery company should call you to arrange an exact delivery date and 4-hour delivery window.
• When the shipping company delivers your package, you or someone over the age of 18 must be present to inspect and sign for your package.
• At the time of delivery: inspect your package for visible damage, if any visible damage is found, refuse the package and contact us at 1-888-528-0885 option# 2.
• If there isn't any visible damage, sign for your package and inspect it for concealed damage, if there is concealed damage contact us at 1-888-528-0885 option# 2.

Standard Curbside Delivery Details

• Curbside Delivery means the package will be delivered literally, to the curb, outside your home.
• All items will be unloaded from the truck to the curb by skilled professionals.
• Further movement or placement of your package is up to you and we recommend having an extra person(s) or a dolly to help move your package.
