Fire Magic Echelon Diamond E1060i A-Series Gas Grill - Rotisserie & Analog Thermometer

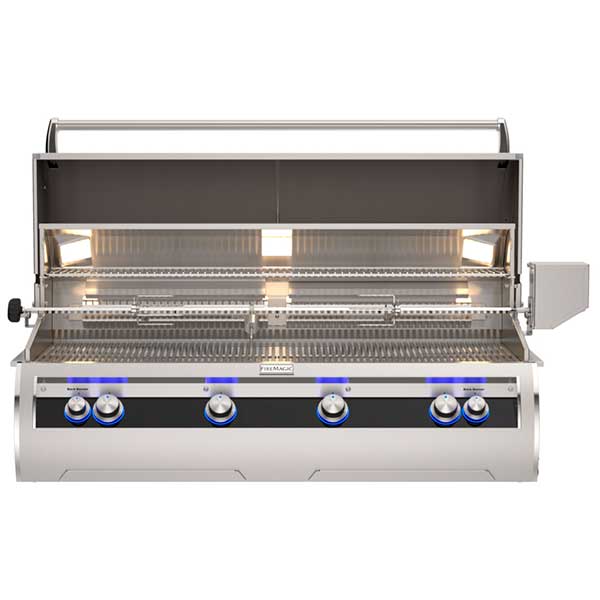

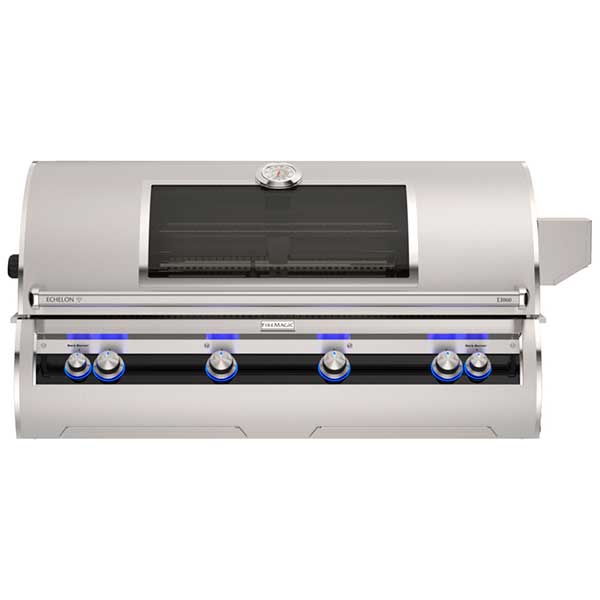

Echelon Diamond E1060i A-Series Built-In Grill (Analog Thermometer)

The Fire Magic Echelon Diamond E1060i A-Series is a 48" built-in gas grill built for large outdoor kitchens that demand maximum output and a clean, analog-controlled cooking experience. Made in the USA from 304 stainless steel, it runs 4 cast stainless steel E-burners (112,000 BTUs total) with two 11,000 BTU rotisserie back-burners (22,000 BTUs combined), all managed through a contoured control panel with back-lit safety knobs and an analog thermometer rated to 1,000°F.

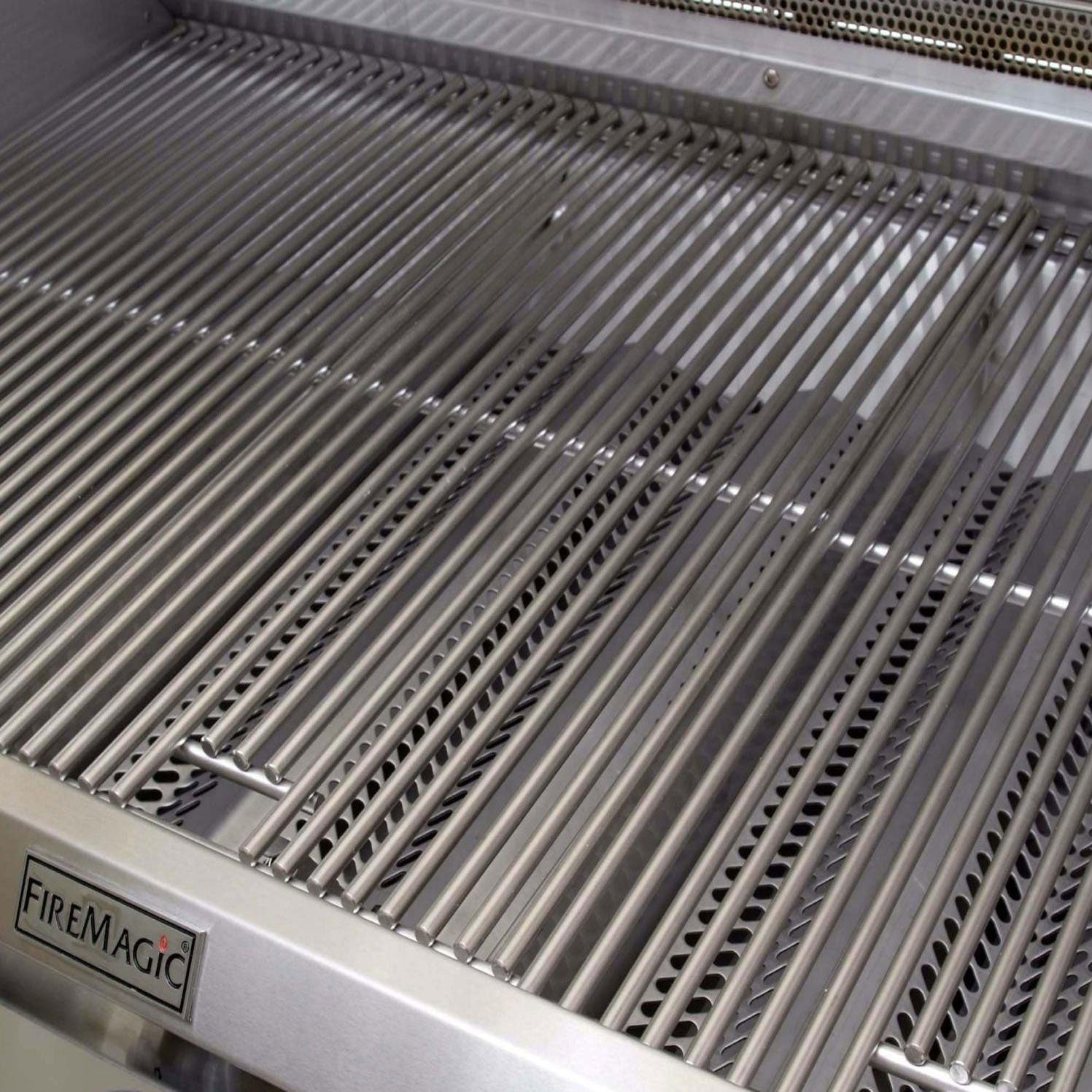

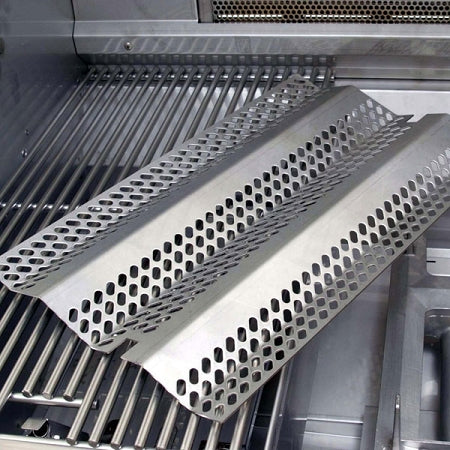

The 1,056 sq. in. primary cooking surface (48" x 22") pairs with a 384 sq. in. warming rack (48"w x 8"d) and 16-gauge stainless steel flavor grids for high-heat searing across multiple independent zones. A dedicated wood chip smoker with a 3,000 BTU burner adds low-and-slow capability. Halogen lamps and back-lit controls keep the cook going well after dark.

Key Specs

• Primary cooking surface: 1,056 sq. in. (48" x 22")
• Warming rack: 384 sq. in. (48" x 8")
• 4 primary burners: 112,000 BTUs total
• 2 back-burners: 22,000 BTUs total (11,000 BTUs each)
• Wood chip smoker: 3,000 BTU dedicated burner

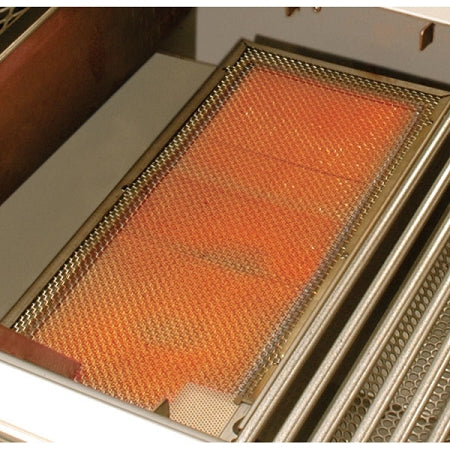

• Burner options: All cast stainless steel E-burners OR one infrared burner (factory-installed, left side)
• Analog thermometer: measures up to 1,000°F
• Construction: 304 stainless steel, Made in USA
• Power: 110V required
• Rotisserie kit: Included
• Optional: Magic View Window (note: analog thermometer is replaced with portable thermometer when window is selected)
• Grill dimensions: 52 1/2"L x 26"W x 27"H
• Cutout dimensions: 50"W x 23 1/2"D x 12"H
• Fuel: Natural Gas or Propane

Key Features

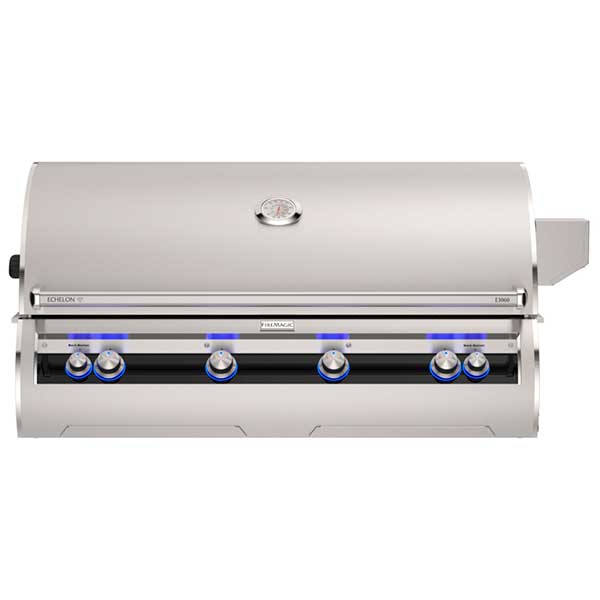

• Analog thermometer with polished bezel rated to 1,000°F for at-a-glance heat monitoring
• Wood chip smoker with dedicated 3,000 BTU burner for low-and-slow cooking

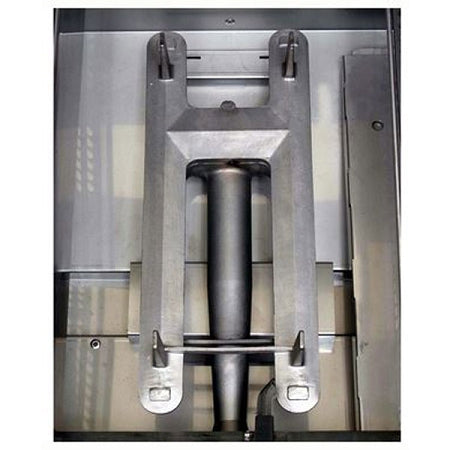

• Cast stainless steel E-burners built for high-heat grilling and long-term durability
• Heat zone separators for independent multi-zone cooking control

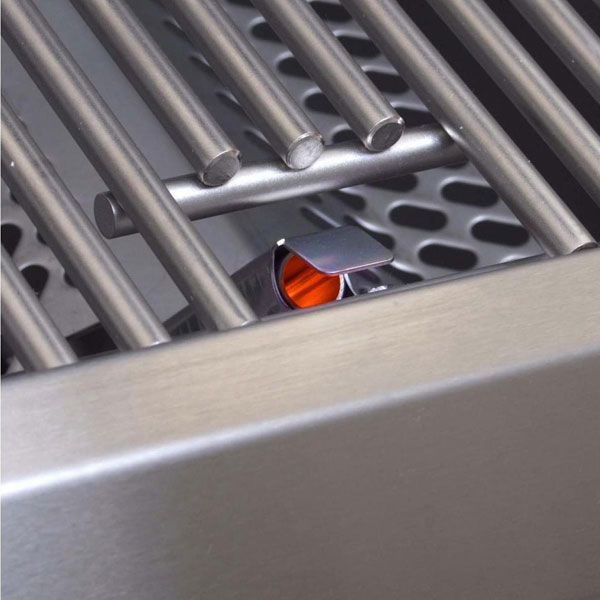

• Back-lit safety knobs and halogen lamps for nighttime use

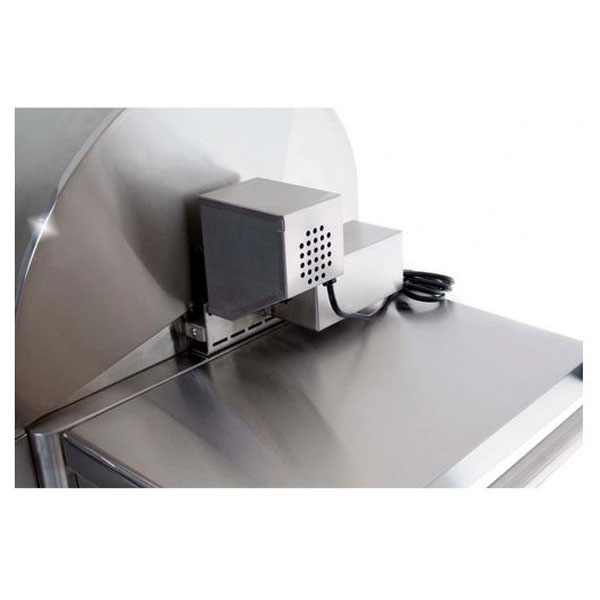

• Rotisserie kit included with dual 11,000 BTU back-burners
• Echelon drip tray and grid lifter for easy cleanup
• Optional Magic View Window to monitor food without lifting the hood

Practical Note

If you select the Magic View Window option, the analog thermometer is replaced with a portable thermometer that can be viewed through the window. This grill also requires a 110V power source for lighting. Confirm electrical access and window preference before ordering, as both affect island cutout planning. This model ships LTL freight and does not qualify for standard free shipping.
