Fire Magic Echelon Diamond E790i A-Series Gas Grill - Rotisserie & Analog Thermometer

Echelon Diamond E790i A-Series Built-In Grill (Analog Thermometer)

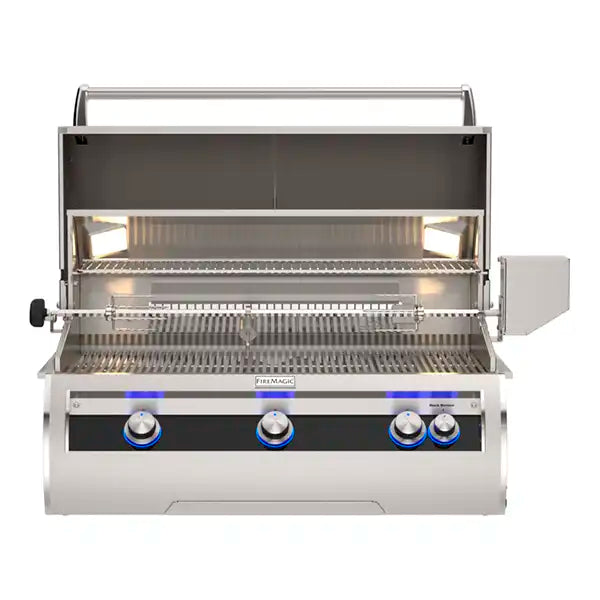

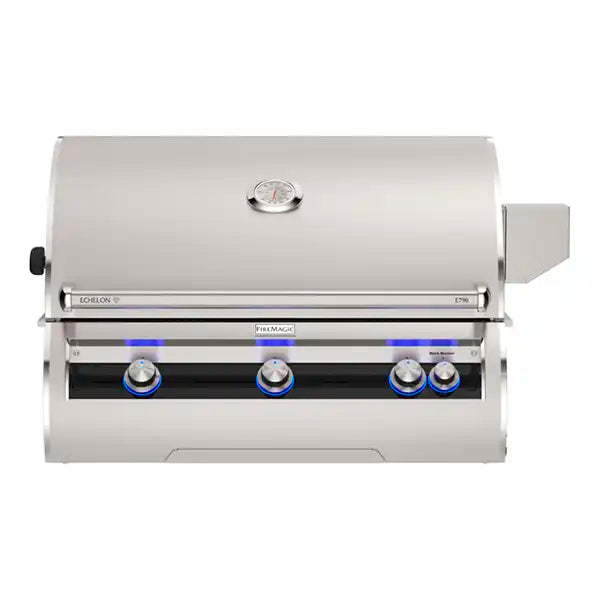

The Fire Magic Echelon Diamond E790i A-Series is a 36" built-in gas grill built for outdoor kitchens that want serious heat output and a clean, analog-controlled cooking experience. Made in the USA from 304 stainless steel, it runs 3 cast stainless steel E-burners (99,000 BTUs total) with a 13,000 BTU back-burner for rotisserie cooking, all managed through a contoured control panel with back-lit comfort touch knobs and an analog thermometer rated to 1,000°F.

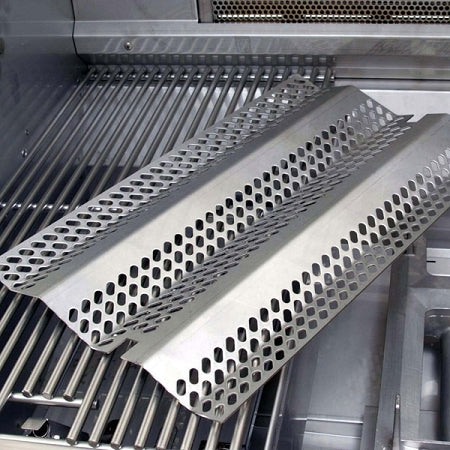

The 792 sq. in. primary cooking surface (36" x 22") is paired with Diamond Sear cooking grids and 16-gauge stainless steel flavor grids for high-heat searing and even browning. A 288 sq. in. warming rack (36"w x 8"d) keeps food staged and ready. Two angled halogen lamps make evening grilling practical without additional task lighting.

Key Specs

• Primary cooking surface: 792 sq. in. (36" x 22")
• Warming rack: 288 sq. in. (36" x 8")
• 3 primary burners: 99,000 BTUs total
• Back-burner: 13,000 BTUs

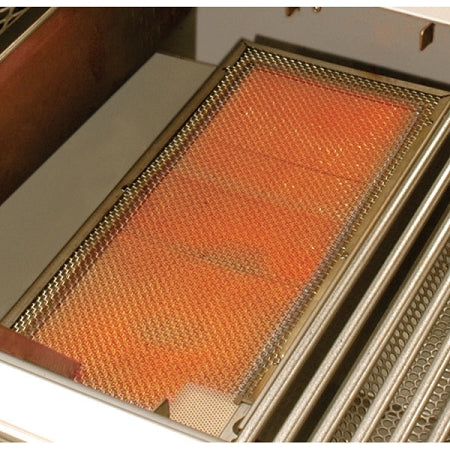

• Burner options: All cast stainless steel E-burners OR one infrared burner (factory-installed, left side)
• Analog thermometer: measures up to 1,000°F
• Construction: 304 stainless steel, Made in USA
• Rotisserie kit: Included
• Optional: Magic View Window (note: analog thermometer is replaced with portable thermometer when window is selected)
• Grill dimensions: 29 3/4"L x 37"W x 27"H
• Cutout dimensions: 37"W x 23 1/2"D x 12"H
• Fuel: Natural Gas or Propane

Key Features

• Analog thermometer with polished bezel rated to 1,000°F for at-a-glance heat monitoring

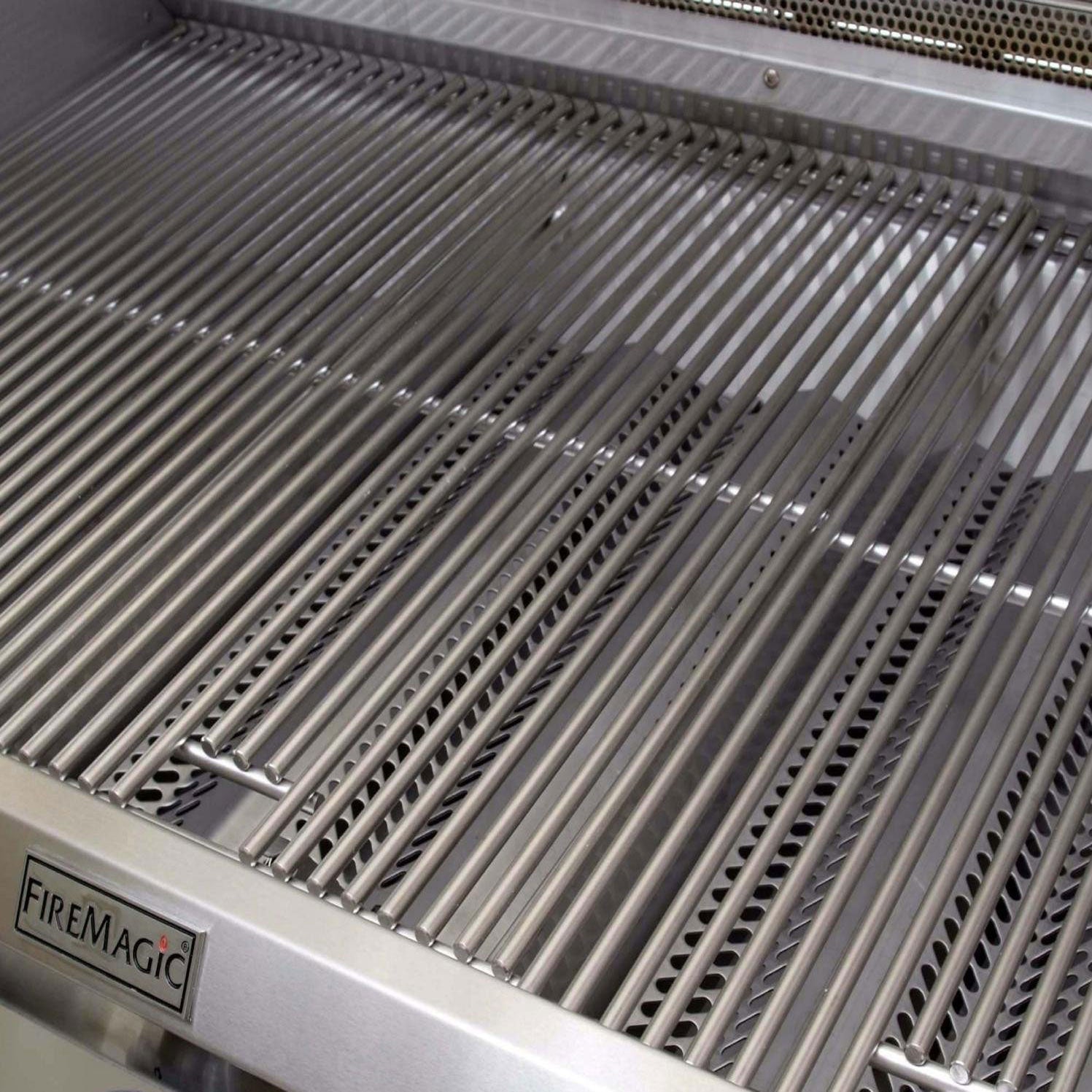

• Diamond Sear cooking grids with patented flat-top bar design for superior searing

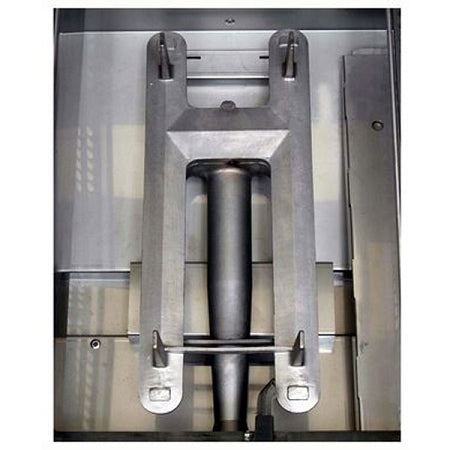

• Cast stainless steel E-burners built for high-heat grilling and long-term durability
• Heat zone separators for independent multi-zone cooking control
• Back-lit comfort touch knobs and halogen lamps for nighttime use

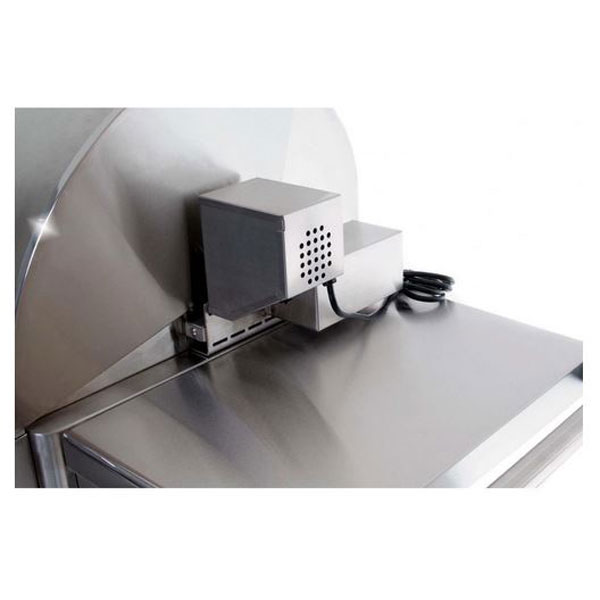

• 13,000 BTU recessed infrared back-burner with rotisserie kit included

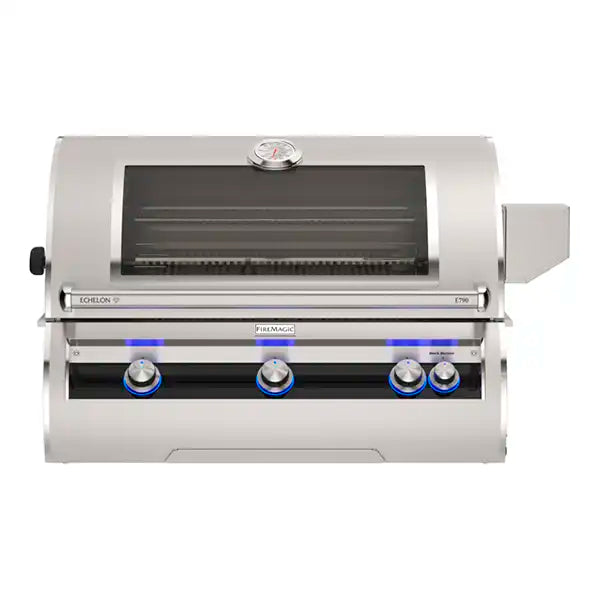

• Optional Magic View Window to monitor food without lifting the hood
• 90-degree double-walled hood and Echelon drip tray for durability and easy cleanup

Practical Note

If you select the Magic View Window option, the analog thermometer is replaced with a portable thermometer that can be viewed through the window. Confirm this before ordering if thermometer placement matters for your island design. This model ships LTL freight and does not qualify for standard free shipping.
