30" Choice Grill with Three Independent Cooking Zones

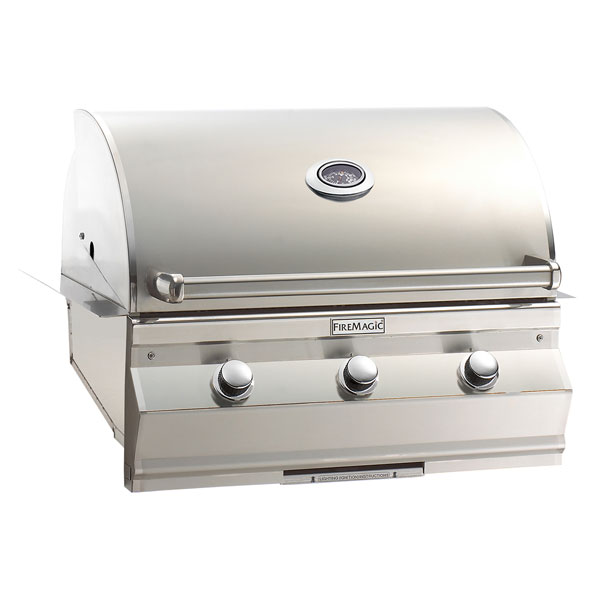

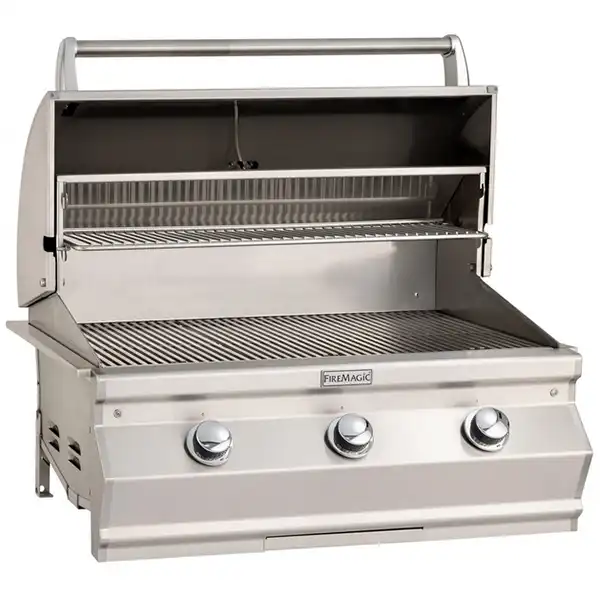

The Fire Magic Choice C540i is a 30" built-in gas grill for buyers who want more cooking width than the C430i while keeping the simpler controls and satin stainless finish of the Choice series. Its 30" x 18" primary cooking surface is divided across three stainless steel U-shaped burners, which makes it easier to run separate temperature zones for direct and indirect cooking.

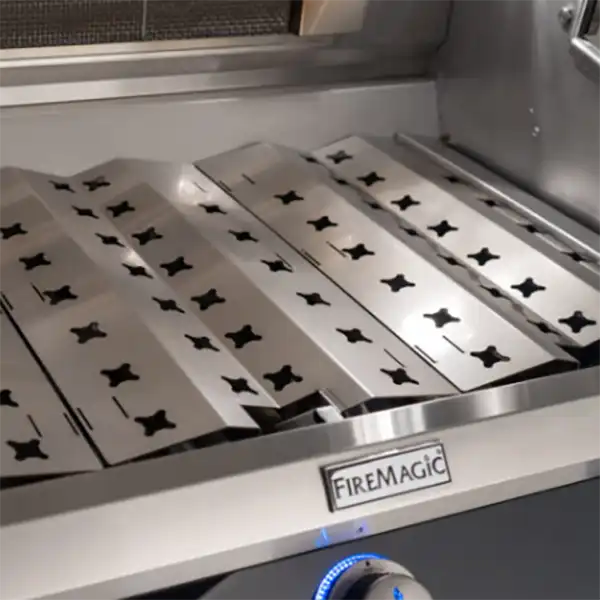

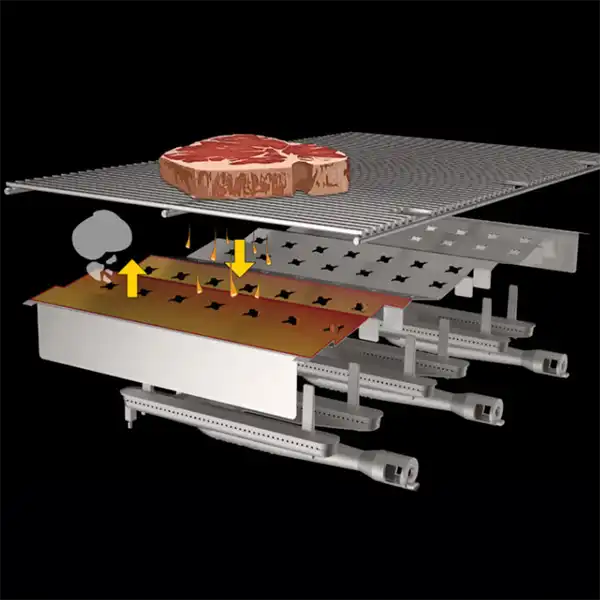

Diamond Sear stainless steel cooking grids provide a broad food-contact surface, while 16-gauge 304 stainless steel flavor grids sit over the burners to distribute heat and help manage flare-ups. Turn-to-Light ignition keeps startup simple without requiring external electrical power or batteries for ignition.
Key Features
- Three stainless steel U-shaped main burners
- Fire Magic's current model-specific product page lists 57,000 BTUs total main-burner output
- 540 sq. in. primary cooking surface: 30" W x 18" D
- 240 sq. in. warming rack: 30" W x 8" D
- Diamond Sear stainless steel cooking grids
- 16-gauge 304 stainless steel flavor grids
- Turn-to-Light ignition with no external power or batteries required for ignition
- Available for natural gas or propane
Installation and Ordering Notes
The current Fire Magic owner manual and specifications guide list a 32" W x 19 1/2" D x 11 1/2" H non-combustible cutout for the C540i. This is the installation dimension BPO recommends using rather than older 12"-high cutout references still found on some product pages.
If the grill is installed in a combustible enclosure, Fire Magic lists insulating liner 23150-52 for the C540i. Follow the liner instructions for the required enclosure opening and all current Fire Magic ventilation and clearance requirements.
Technical Specifications
| Brand | Fire Magic |
|---|---|
| Series | Choice |
| Model Family | C540i-RT1 |
| Fuel Options | Natural gas or propane |
| Main Burners | 3 stainless steel U-shaped burners |
| Main Burner Output | 57,000 BTU total per current model-specific Fire Magic product page |
| Primary Cooking Area | 540 sq. in. (30" x 18") |
| Warming Rack | 240 sq. in. (30" x 8") |
| Non-Combustible Cutout | 32" W x 19 1/2" D x 11 1/2" H |
| Maximum Grill Width | 34 1/8" |
| Maximum Grill Depth | 25 3/4" |
| Compatible Insulating Liner | 23150-52, when required |
Manuals & Documentation
- Fire Magic Choice Built-In Grill Owner's Manual
- Fire Magic Product Specifications Guide
- Fire Magic Warranty Information
Warranty
Fire Magic's current warranty provides lifetime coverage for Choice stainless steel U-shaped burners, stainless steel cooking grids, and stainless steel housings for the original purchaser under the stated residential-use terms. Other components have separate coverage periods. Review Fire Magic's current warranty for complete details.
FAQ
How many burners does the C540i have?
The current Fire Magic owner manual identifies three main burners for the C540i.
What cutout does the C540i require?
The current owner manual and specifications guide list 32" W x 19 1/2" D x 11 1/2" H for a non-combustible enclosure.
Does the C540i require electricity for ignition?
No. Turn-to-Light ignition does not require external power or batteries for ignition.
Which insulating liner fits the C540i?
Fire Magic lists the 23150-52 insulating liner when a liner is required for the installation.
