24" Choice Built-In Grill for Straightforward Outdoor Cooking

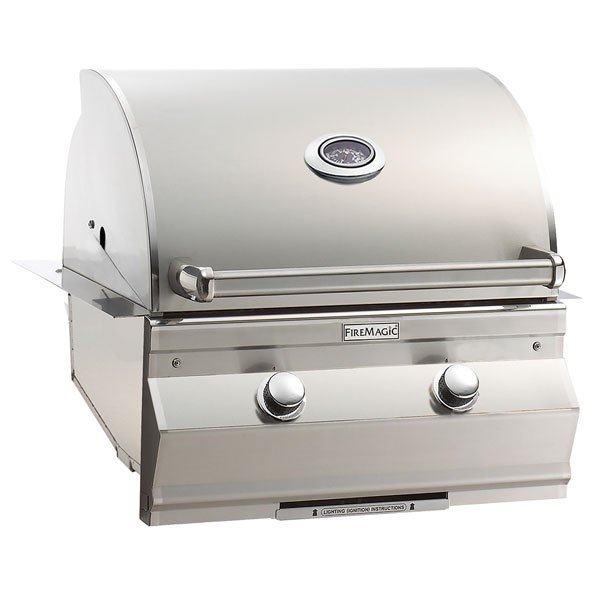

The Fire Magic Choice C430i is a compact built-in gas grill for outdoor kitchens where cooking space matters but a larger grill head is not necessary. It uses two stainless steel U-shaped burners with 46,000 BTUs across a 24" x 18" primary cooking surface, giving you two independently controlled heat zones in a 24" grill format.
The Choice series keeps the controls simple. Turn-to-Light ignition does not require external power or batteries, while the hood-mounted analog thermometer gives you an at-a-glance temperature reference. Fire Magic's Diamond Sear stainless steel cooking grids and 16-gauge 304 stainless steel flavor grids manage the cooking surface and heat distribution.
Key Features

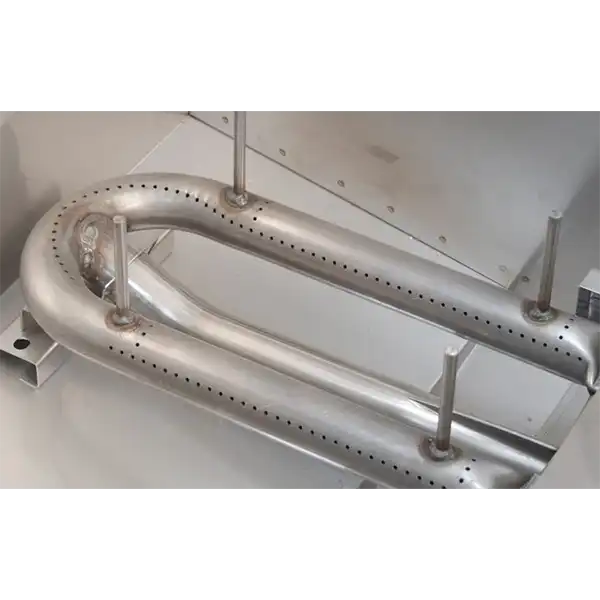

- Two stainless steel U-shaped main burners with 46,000 BTUs total
- 432 sq. in. primary cooking surface: 24" W x 18" D
- 192 sq. in. warming rack: 24" W x 8" D

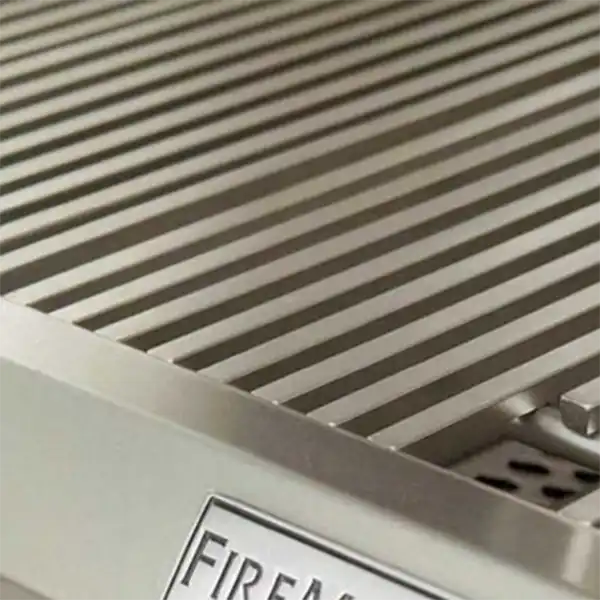

- Diamond Sear stainless steel cooking grids

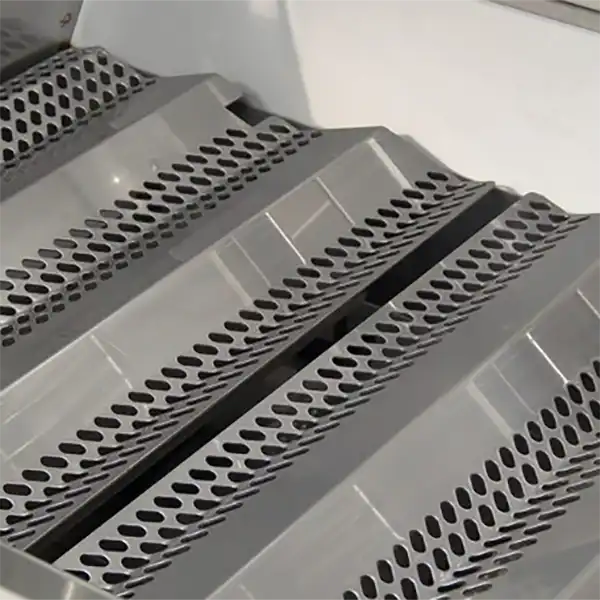

- 16-gauge 304 stainless steel flavor grids

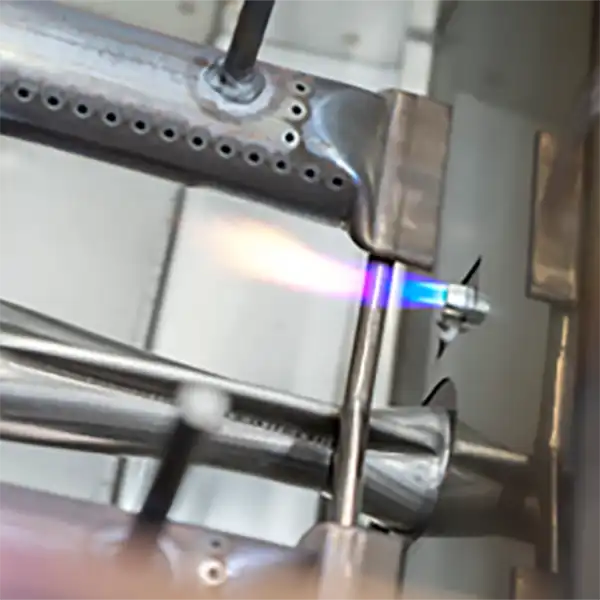

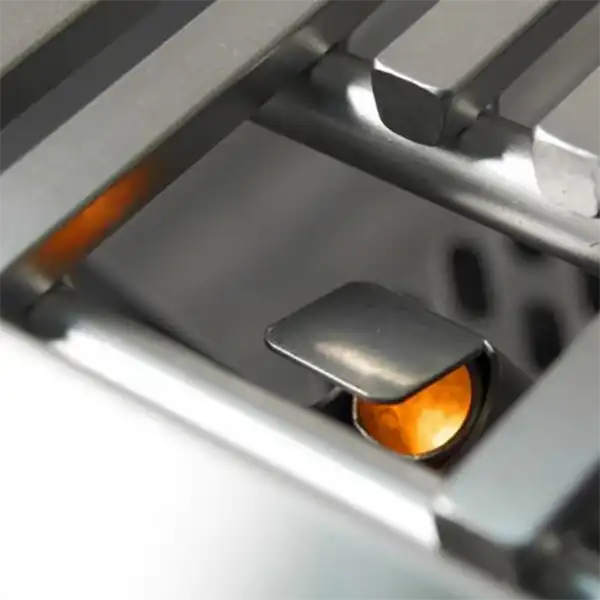

- Turn-to-Light ignition with no external power or batteries required for ignition

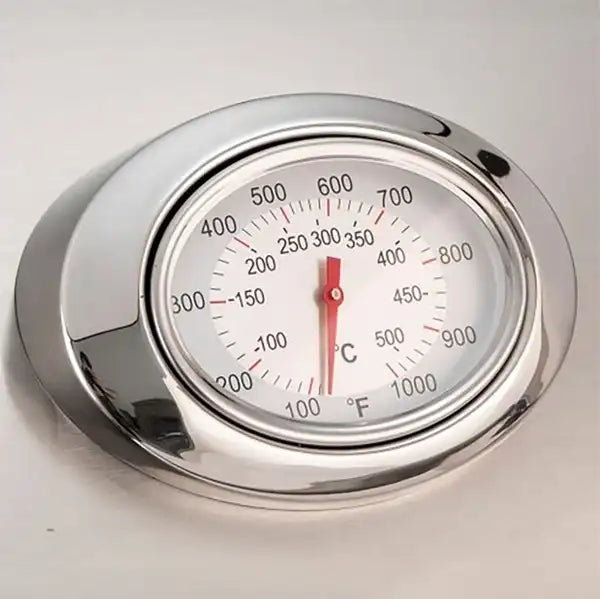

- Analog thermometer built into the hood

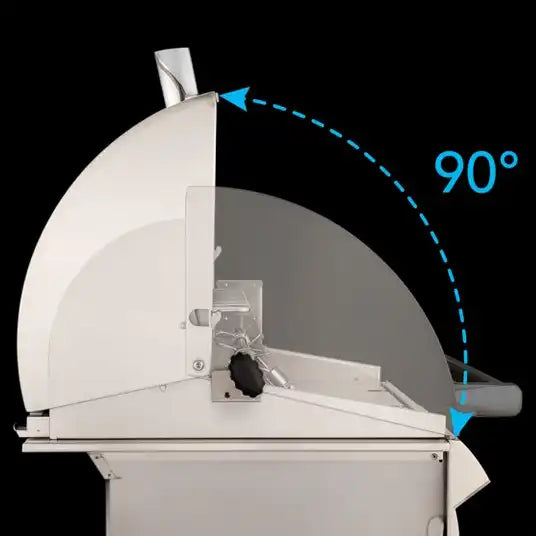

- Double-wall 304 stainless steel hood with 90-degree opening and spring assist
- Available in natural gas and propane configurations
Installation and Ordering Notes
For a non-combustible enclosure, the current Fire Magic owner manual specifies a 25 1/2" W x 19 1/2" D x 11 1/2" H cutout. If the grill is installed in a combustible enclosure, Fire Magic specifies the compatible 23130-52 insulating liner and requires the liner instructions to be followed for the applicable opening dimensions.
Select the fuel type that matches the outdoor kitchen gas supply. The C430i is available as C430i-RT1N for natural gas and C430i-RT1P for propane.
Technical Specifications
| Brand | Fire Magic |
|---|---|
| Series | Choice |
| Model Family | C430i-RT1 |
| Fuel Options | Natural gas or propane |
| Main Burners | 2 stainless steel U-shaped burners |
| Main Burner Output | 46,000 BTU total |
| Primary Cooking Area | 432 sq. in. (24" x 18") |
| Warming Rack | 192 sq. in. (24" x 8") |
| Non-Combustible Cutout | 25 1/2" W x 19 1/2" D x 11 1/2" H |
| Maximum Grill Width | 27 5/8" |
| Maximum Grill Depth | 25 3/4" |
| Compatible Insulating Liner | 23130-52, when required |
Manuals & Documentation
- Fire Magic Choice Built-In Grill Owner's Manual
- Fire Magic Product Specifications Guide
- Fire Magic Warranty Information
Warranty
Fire Magic's current warranty provides lifetime coverage for Choice stainless steel U-shaped burners, stainless steel cooking grids, and stainless steel housings for the original purchaser under the stated residential-use terms. Other components have separate coverage periods. Review the current Fire Magic warranty for complete terms and exclusions.
FAQ
Does the C430i need electricity for ignition?
No. Fire Magic's Turn-to-Light ignition does not require external power or batteries for ignition.
What is the current cutout for the C430i?
The current Fire Magic owner manual lists a 25 1/2" W x 19 1/2" D x 11 1/2" H non-combustible cutout.
Which insulating liner fits the C430i?
Fire Magic lists insulating liner 23130-52 for the C430i when an insulating liner is required.
Is the C430i available in natural gas and propane?
Yes. Choose the fuel configuration that matches the outdoor kitchen gas supply.
