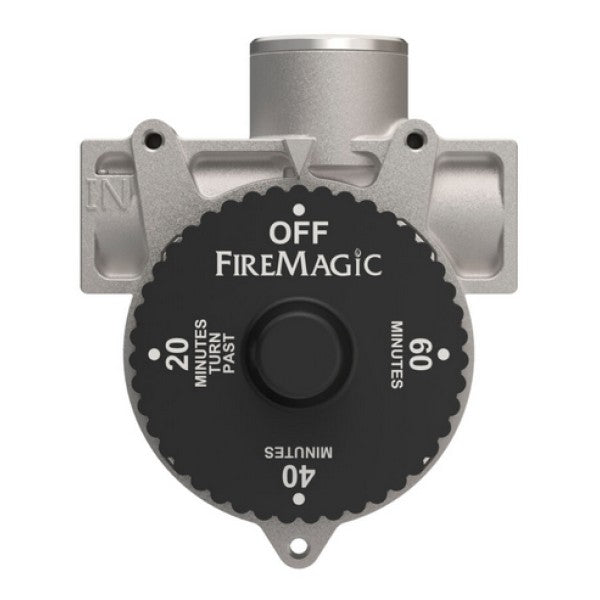

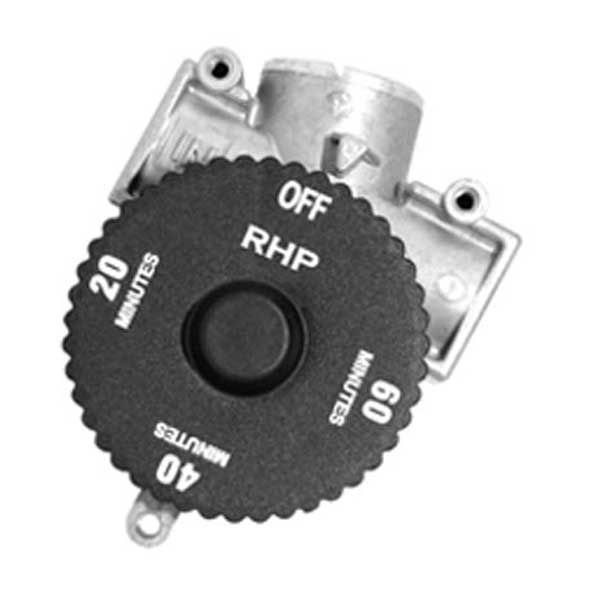

Fire Magic 1Hr Automatic Timer Safety Gas Shut Off Valve

Fire Magic Automatic Timer Safety Gas Shut Off Valve (1 Hour) - 3092D

$108.00 $120.00
Save $12.00
Part Number: 3092D
Availability: In stock
Fire Magic automatic 1-hour timer gas shut-off valve that limits gas flow time and shuts off automatically, rated up to 100,000 BTU. 1/2" NPT in/out.

Quantity:
Pickup available at 1802 Chico Avenue Usually ready in 2-4 days

Fire Magic Automatic Timer Safety Gas Shut Off Valve (1 Hour) - 3092D

1802 Chico Avenue

Pickup available, usually ready in 2-4 days

1802 Chico Avenue
South El Monte CA 91733
United States

+18885280885

1-Hour Automatic Timer Gas Shut-off Valve

Product Description

The Fire Magic 1-hour automatic timer shut-off valve is an in-line safety accessory that limits how long gas can flow to a grill or other gas appliance. You set a countdown time, and the valve shuts off gas automatically when the dial returns to OFF. It’s commonly used in shared-wall settings like apartments and condos, or anywhere you want a clear “time limit” on gas flow as part of a safer outdoor kitchen setup.

Key Features

  • Automatic gas shutoff using a mechanical countdown dial
  • Up to 60 minutes of run time with 20-minute dial increments
  • Rated up to 100,000 BTU and a maximum ambient temperature of 125°F
  • 1/2" NPT connections on both ends for in-line installation
  • May be installed horizontally or vertically

Why Buy

  • Helps prevent a grill from being left on indefinitely by limiting the gas flow time
  • Simple, mechanical operation with no programming
  • Fits standard 1/2" NPT gas piping used in many outdoor kitchen installs

Practical Note

The instructions specify installing the timer in the gas supply line before the grill and connecting the gas supply to the side marked “IN.” It must not be installed within 18" of the grill to avoid overheating that can damage the timer and potentially lead to a leak.

For shorter cook times, the instructions call out an important dial step: if you’re setting less than 20 minutes, turn the dial past 20 minutes first to activate it, then turn it back to your desired time.

What’s Included

  • (1) Automatic timer shut-off valve (1-hour)

Care & Use Note

This is a gas-line component. Installation should follow local codes and is best handled by a qualified installer. After installation, leak-test all joints before operating the appliance.

Technical Specifications

Specification Detail
Brand Fire Magic (R.H. Peterson)
Item Type Automatic timer gas shut-off valve
Model (1-hour) 3092 (instructions) / 3092D (current Fire Magic listing)
Maximum Timer Range 20-60 minutes (max 1 hour)
Dial Markings 20-minute increments
Gas Connection Size 1/2" NPT (inlet and outlet)
Flow Capacity Up to 100,000 BTU
Max Temperature Rating 125°F
Mounting Orientation Horizontal or vertical
Install Placement Requirement Do not install within 18" of the grill

FAQs

  • Is this a true 1-hour timer?
    It’s a 1-hour maximum shut-off timer. The instructions show time settings from 20 to 60 minutes.
  • How do I set a time under 20 minutes?
    Turn the dial past 20 minutes first to activate, then turn it back to the shorter time.
  • Where does the valve install?
    It installs in-line in the gas supply before the appliance. Connect the gas supply to the side marked “IN.”
  • Can it be installed vertically?
    Yes. Fire Magic lists that it may be installed horizontally or vertically.
  • Is professional installation recommended?
    Yes. It’s a gas-line component, so installation should follow local codes and include leak testing.

Check out timer instructions: 1-hour Automatic Timer Instructions
