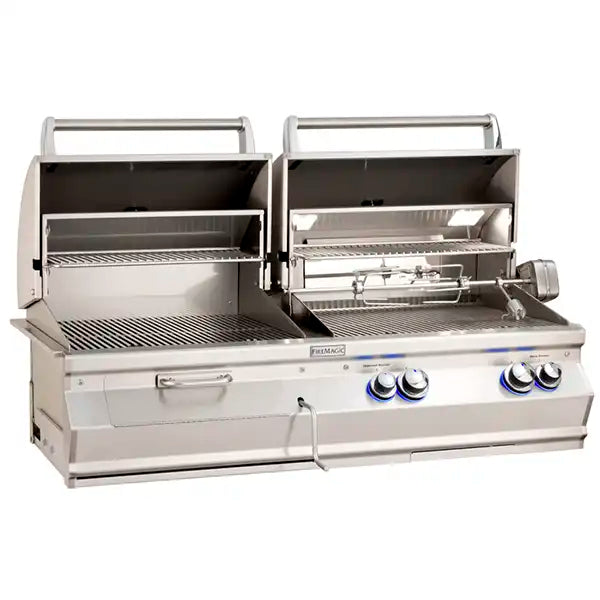

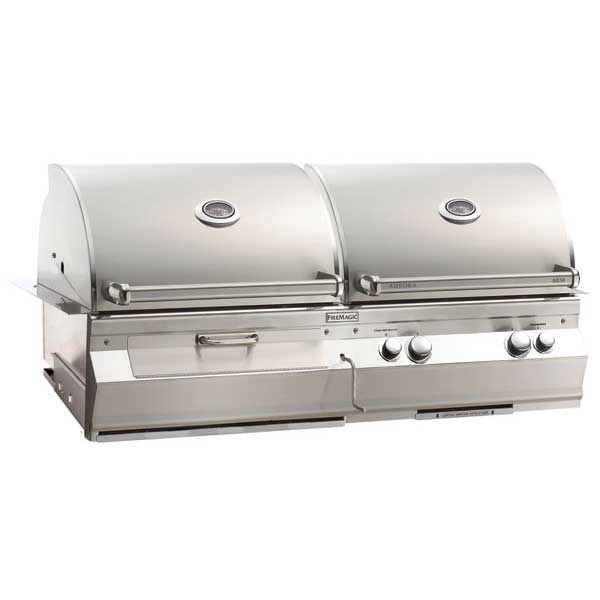

Fire Magic Aurora A830i Gas/Charcoal Combo Built-In Outdoor Cooking
Fire Magic Aurora A830i Gas/Charcoal Combo is a Aurora built-in grill designed for permanent outdoor-kitchen installations. It provides 828 sq. in. total (432 gas + 396 charcoal) of primary cooking space with 50,000 BTU gas-side main burners of main cooking power. The page covers multiple factory configurations, so the exact fuel, burner package, backburner, window, and thermometer options should be confirmed from the selected SKU before ordering.
What Sets This Model Apart
- gas cooking section plus adjustable charcoal section
- 828 sq. in. total (432 gas + 396 charcoal) primary cooking area
- 368 sq. in. total warming area
- 11,000 BTU backburner if equipped; 26,000 BTU charcoal igniter
- Fire Magic stainless-steel construction with Diamond Sear cooking grids on Aurora/Echelon configurations where specified by Fire Magic
- Analog temperature monitoring
Variant and Ordering Notes
The gas side and charcoal side are separate cooking zones. Backburner and rotisserie equipment apply only to variants configured with that package. Natural-gas and propane versions use distinct model codes. Confirm the exact SKU shown in the selected variant before ordering.
Technical Specifications
| Series | Aurora |
|---|---|
| Nominal Size | 50" class |
| Primary Cooking Area | 828 sq. in. total (432 gas + 396 charcoal) |
| Warming Area | 368 sq. in. total |
| Main Burner Output | 50,000 BTU gas-side main burners |
| Backburner / Secondary Heat | 11,000 BTU backburner if equipped; 26,000 BTU charcoal igniter |
| Cutout | 50 1/4" W x 19 1/2" D x 11 1/2" H |
Installation & Ordering Notes
Use the current Fire Magic owner manual for enclosure ventilation, clearances, gas supply, electrical requirements, and combustible-construction rules. Where Fire Magic requires an insulating liner, use the model-specific liner listed in the current manufacturer documentation. Do not build the island opening from the advertised grill width alone.
Manuals & Documentation
- Fire Magic Aurora Owner / Installation Manual
- Fire Magic Product Specifications Guide
- Fire Magic Current Product Catalog & Warranty Highlights
Warranty
Fire Magic's current residential warranty provides lifetime coverage on cast stainless-steel burners, stainless-steel cooking grids, and stainless-steel housings, with different coverage periods for valves, liners, backburners, infrared burners, ignition systems, electronics, and other components. Coverage is subject to Fire Magic's current written warranty terms and proof-of-purchase requirements.
FAQ
How do I choose the correct Fire Magic variant?
Match the selected SKU to the required fuel and factory options. Fire Magic model codes distinguish natural gas versus propane, burner configuration, thermometer type, backburner package, and certain window options.
Can I use the advertised grill width for the island cutout?
No. Use the current Fire Magic cutout dimensions and installation manual for the exact model.
Does the A830i use both gas and charcoal?
Yes. It combines a gas cooking section with a separate adjustable charcoal section and a dedicated charcoal igniter.
