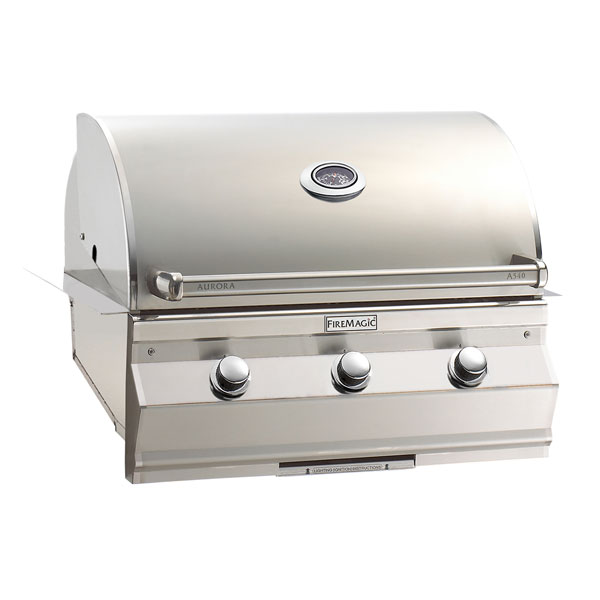

Fire Magic Aurora A540i Built-In Outdoor Cooking
Fire Magic Aurora A540i is a Aurora built-in grill designed for permanent outdoor-kitchen installations. It provides 540 sq. in. of primary cooking space with 63,000 BTU of main cooking power. The page covers multiple factory configurations, so the exact fuel, burner package, backburner, window, and thermometer options should be confirmed from the selected SKU before ordering.
What Sets This Model Apart

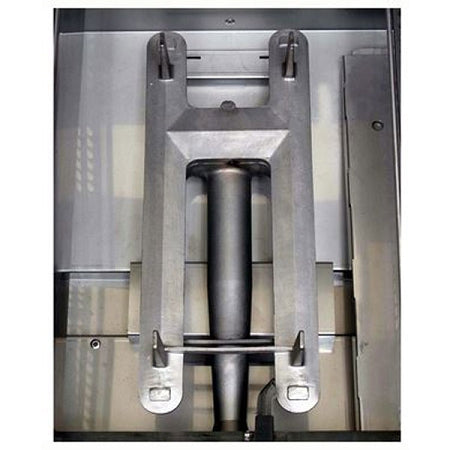

- 3 cast stainless steel main burners
- 540 sq. in. primary cooking area
- 240 sq. in. warming area
- 11,000 BTU if equipped

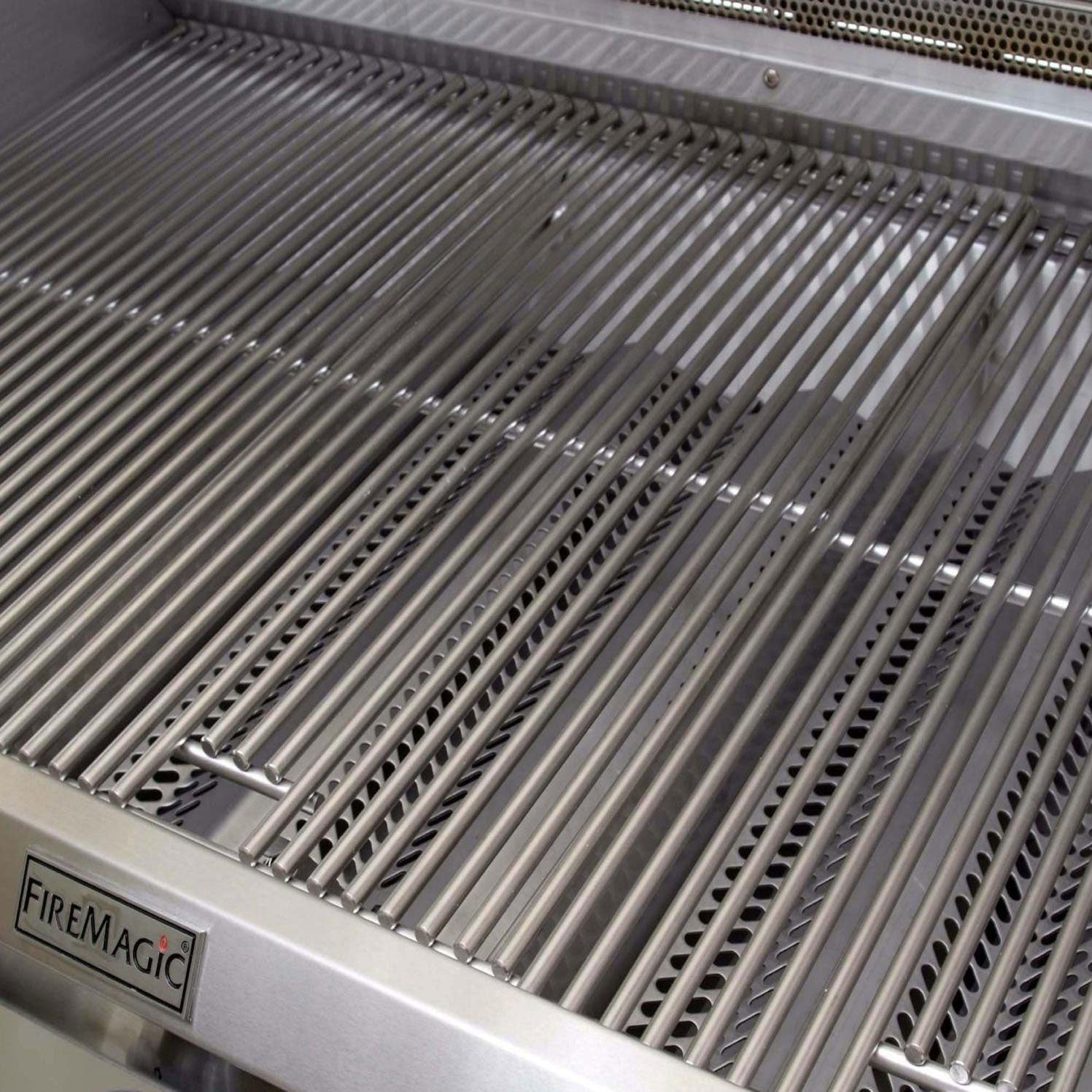

- Fire Magic stainless-steel construction with Diamond Sear cooking grids on Aurora/Echelon configurations where specified by Fire Magic
- Analog temperature monitoring
Variant and Ordering Notes

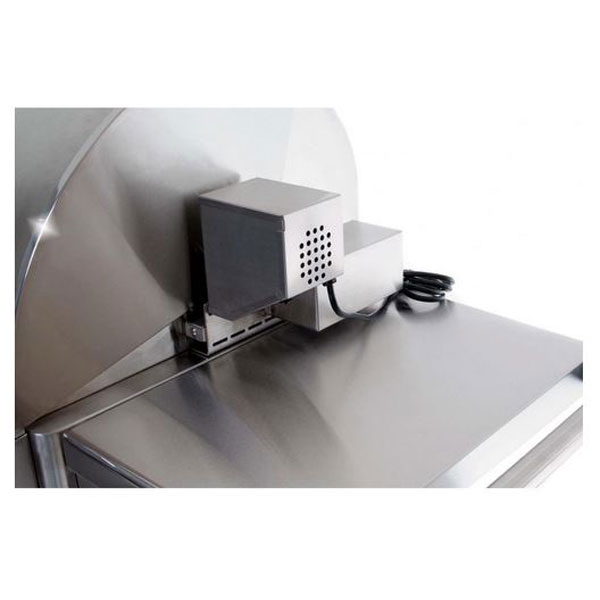

Available with or without the backburner/rotisserie package; E models use all cast stainless main burners and L models substitute one factory-installed infrared searing burner. Natural-gas and propane versions use distinct model codes. Confirm the exact SKU shown in the selected variant before ordering.
Technical Specifications
| Series | Aurora |
|---|---|
| Nominal Size | 30" |
| Primary Cooking Area | 540 sq. in. |
| Warming Area | 240 sq. in. |
| Main Burner Output | 63,000 BTU |
| Backburner / Secondary Heat | 11,000 BTU if equipped |
| Cutout | 32" W x 19 1/2" D x 11 1/2" H |
Installation & Ordering Notes
Use the current Fire Magic owner manual for enclosure ventilation, clearances, gas supply, electrical requirements, and combustible-construction rules. Where Fire Magic requires an insulating liner, use the model-specific liner listed in the current manufacturer documentation. Do not build the island opening from the advertised grill width alone.
Manuals & Documentation
- Fire Magic Aurora Owner / Installation Manual
- Fire Magic Product Specifications Guide
- Fire Magic Current Product Catalog & Warranty Highlights
Warranty
Fire Magic's current residential warranty provides lifetime coverage on cast stainless-steel burners, stainless-steel cooking grids, and stainless-steel housings, with different coverage periods for valves, liners, backburners, infrared burners, ignition systems, electronics, and other components. Coverage is subject to Fire Magic's current written warranty terms and proof-of-purchase requirements.
FAQ
How do I choose the correct Fire Magic variant?
Match the selected SKU to the required fuel and factory options. Fire Magic model codes distinguish natural gas versus propane, burner configuration, thermometer type, backburner package, and certain window options.
Can I use the advertised grill width for the island cutout?
No. Use the current Fire Magic cutout dimensions and installation manual for the exact model.
