30" Built-in Charcoal Grill - 14-SC01C-A
Product Description

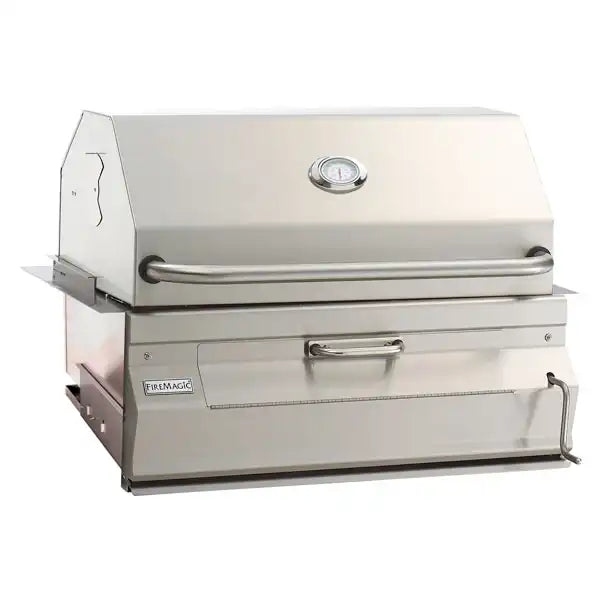

The Fire Magic 14-SC01C-A is a built-in charcoal grill designed for outdoor kitchen islands when you want hands-on heat control and the option to smoke without switching to a separate cooker. The core of the experience is the adjustable charcoal pan - you raise or lower the coals with a front-mounted crank, so you can react to how the fire is burning instead of waiting it out.
For day-to-day cooking, the front access door lets you add fuel during a cook, and the smoker hood uses side air shutters to help manage airflow when the lid is down. It’s a practical setup for cooking across direct heat, then backing off into a steadier, closed-lid rhythm when you want longer cooks.
Key Features
- Adjustable-height charcoal pan controlled by a front crank for on-the-fly heat management
- Front access door for adding charcoal while cooking

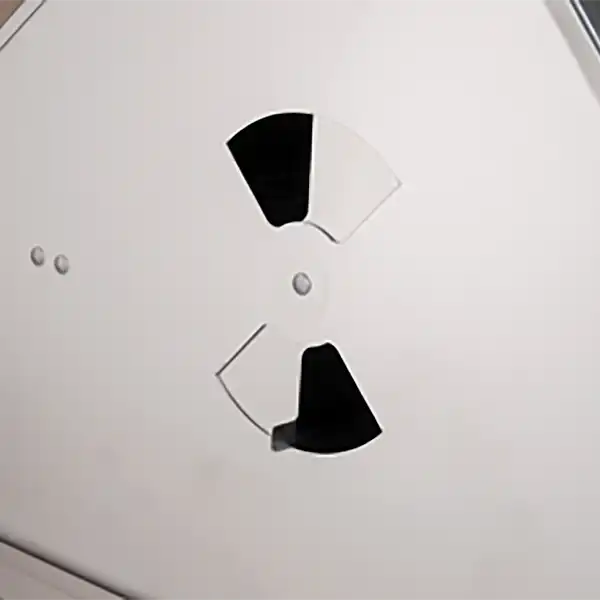

- Smoker hood with adjustable air shutters to help regulate airflow and temperature

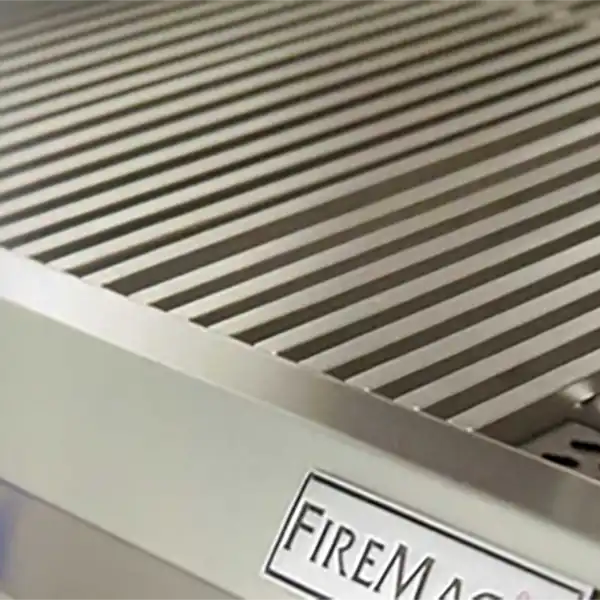

- Stainless construction and stainless cooking grids

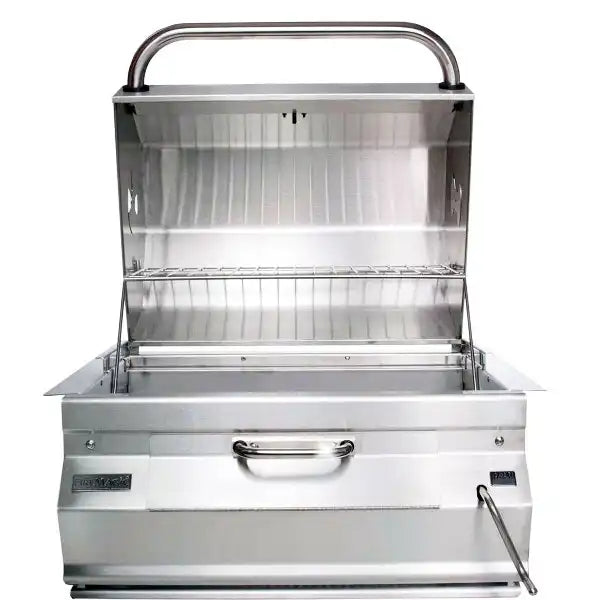

- Charcoal shield and warming rack support indirect cooking and longer sessions

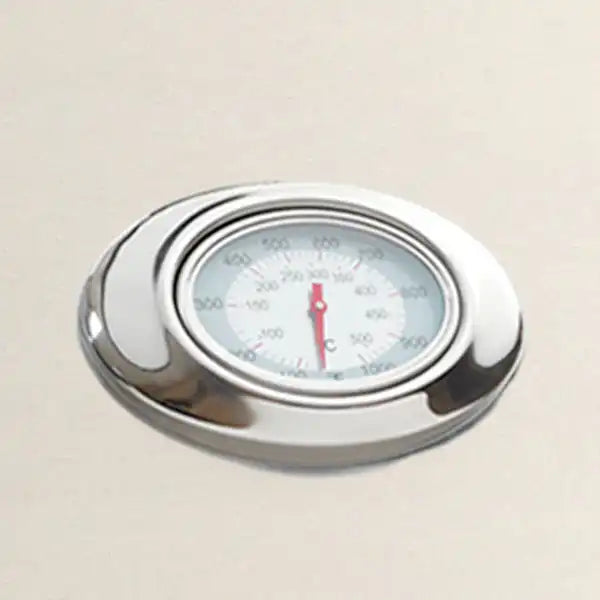

- Analog thermometer for at-a-glance temperature monitoring
- Better control over charcoal intensity without constantly rearranging coals
- Built-in island format with features that suit both quick grilling and slower, lid-down cooking
- A good fit when you want charcoal flavor but still care about repeatable heat control
Practical Note
Built-in models are intended for masonry or other fireproof enclosures, and clearances matter for ventilation and hood opening.
When loading charcoal, spread it evenly and do not exceed a height of 1" above the charcoal pan to help prevent overheating.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Fire Magic (R.H. Peterson) |
| Model Number | 14-SC01C-A |
| Fuel Type | Charcoal |
| Configuration | Built-in |
| Material | 304 stainless steel (stainless construction and cooking grids) |
| Primary Cooking Surface | 540 sq. in. |
| Cooking Grid Dimensions | 30" x 18" |
| Warming Rack Surface | 360 sq. in. (30" x 12") |
| Overall Dimensions (W x H x D) | 32.25" x 25.12" x 19.75" |
| Cutout Dimensions (W x H x D) | 32 1/4" x 12" x 19 3/4" |
| Built-in Opening Requirements (W x H x D) | 32 1/4" x 12" x 19 3/4" |
| Minimum Clearances | From combustible materials: 18" (side and back). From non-combustible wall/backsplash: 4" (right, left, rear). Rear clearance with smoker hood for opening: 11". |
| Heat Control | Adjustable charcoal pan with crank; smoker hood air shutters |
| Thermometer | Analog |
FAQs
-
Does this grill let me adjust the heat without moving the food?
Yes. The charcoal pan is height-adjustable using the crank, so you can change intensity by moving the coals closer to or farther from the cooking surface. -
Can I add charcoal during a cook?
Yes. The built-in design includes a front access door intended for loading charcoal while cooking. -
Is this meant for a standard outdoor kitchen island?
It is designed as a built-in unit, and the manual specifies installation in masonry or another fireproof enclosure, with clearances for ventilation and hood opening. -
What is a practical way to avoid overheating the grill?
Follow the manual guidance on charcoal loading height and keep the charcoal spread evenly across the pan.
