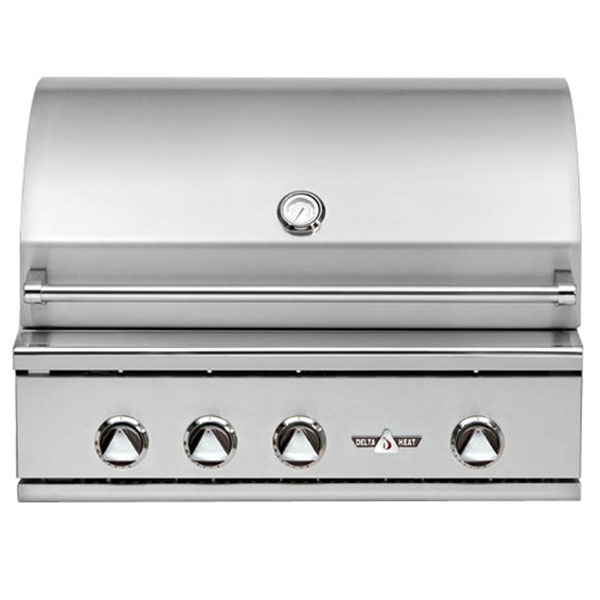

Flexible 32-Inch Delta Heat Grill with Three Cooking Configurations
The 32-inch platform gives buyers the widest configuration choice: a standard G model, an R model with infrared rotisserie, or an RS model that combines rotisserie capability with a sear zone.
Choose the exact fuel and cooking configuration shown in the product options before ordering. Delta Heat identifies the current D-Series grill family by model, size, color, and G/R/RS configuration.
Key Features
- 304 stainless steel body with seamless welded construction

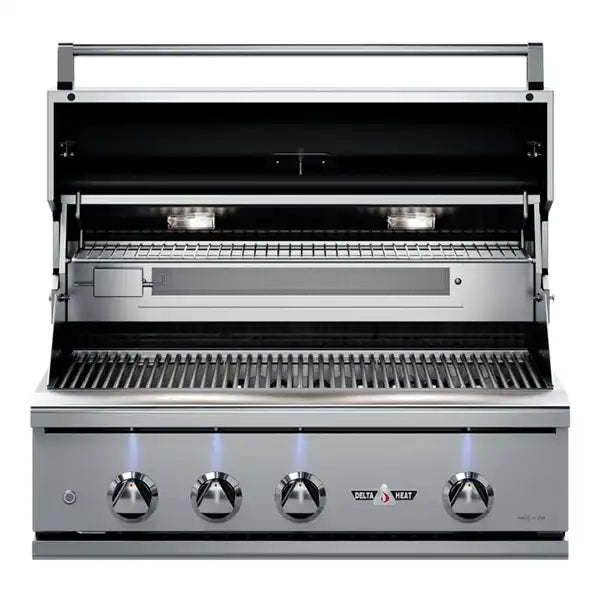

- Double-lined hood with hood-assist system

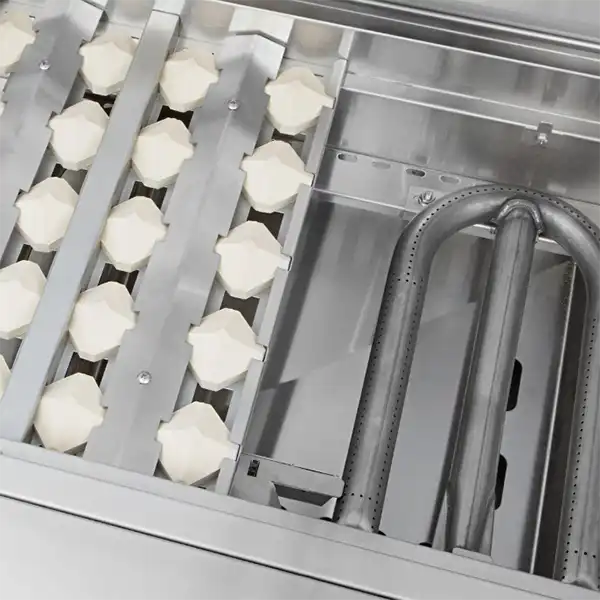

- 18-gauge stainless steel U-burners with ceramic briquettes for radiant heat distribution
- Stainless steel cooking grates

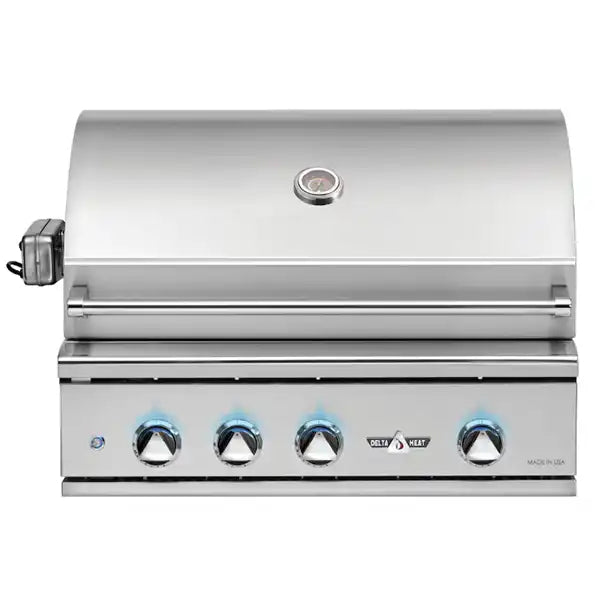

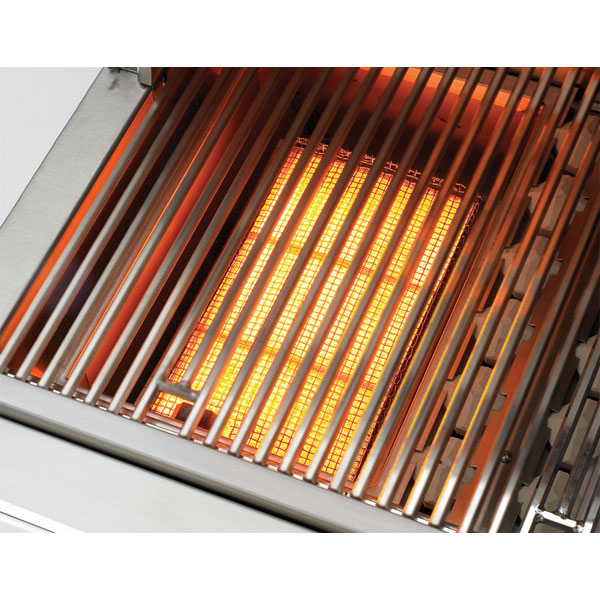

- R configurations add an infrared rear rotisserie burner; RS configurations add a sear zone
- Blue LED control-panel illumination
- Interior halogen cooking-surface lighting
- Oversized stainless steel warming rack
- Available for natural gas or liquid propane
- Designed and manufactured in California
Technical Specifications
| Brand | Delta Heat by Dometic |
|---|---|
| Nominal Grill Size | 32" |
| Current Model Family | DHBQ32G-D, DHBQ32R-D, DHBQ32RS-D; color R/RS models DHBQ32R/RS-K and -W |
| Available Configurations | G standard, R rotisserie, or RS rotisserie + sear; natural gas or liquid propane |
| Burner Configuration | 3 burner positions; R models add an infrared rear rotisserie burner and RS models add a sear zone |
| Total Rated Input | 46,500-59,500 BTUs depending on configuration |
| Cooking Grates | 3 stainless steel cooking grates |
| Construction | 304 stainless steel, welded construction |
| Electrical Supply | 120V, 60Hz, 4A; 15-amp dedicated circuit |
| Power Connection | 5-ft cord with 3-prong grounding plug |
| Gas Supply | Natural gas or liquid propane; 3/4" ID supply line; 1/2" NPT female inlet |
| Cutout Dimensions | 30 1/2" W x 19 3/4" D x 9 1/2" H |
Installation & Ordering Notes
Match the selected model to the intended fuel source and cooking configuration. R and RS models include the rotisserie system; RS models add the sear-zone burner. Color-specific black and white models are R/RS configurations rather than standard G models.
For combustible construction, Delta Heat requires an approved insulating jacket. Follow the current installation manual for clearances, ventilation, gas supply, electrical service, and enclosure requirements. Use the cutout dimensions in the Technical Specifications table when planning the opening.
Manuals & Documentation
Warranty
Delta Heat's current residential warranty provides lifetime coverage for the stainless steel main burners and fabricated stainless steel housing, 15 years for stainless steel grates, five years for briquette trays and gas valves, and two years for other grill components. The first year includes parts and labor under the manufacturer's stated warranty terms.
Frequently Asked Questions
What is the difference between G, R, and RS Delta Heat grill models?
G is the standard grill configuration. R adds the infrared rear rotisserie system. RS combines the rotisserie system with a sear-zone burner.
Are natural gas and propane versions available?
Yes. Delta Heat offers factory configurations for natural gas and liquid propane. Select the fuel type that matches the planned installation.
Do the black and white Delta Heat grills use the same cooking system as the stainless models?
Yes. The color models use the Delta Heat D-Series grill platform with the same welded stainless construction, U-burner and ceramic-briquette cooking system. Black and white versions are offered in R and RS configurations.
Is an insulating jacket required?
An approved insulating jacket is required when the grill is installed in combustible construction. Follow the current Delta Heat manual and jacket instructions for the complete installation requirements.
What is included with a rotisserie model?
The current Delta Heat manual lists the rotisserie motor and bracket, spit rod, and meat-holder forks with R/RS grill configurations.
