Cal Flame 40" Top Gun 5-Burner Convection Built-In Gas Grill - BBQ19875CTG
Cal Flame Top Gun 40" built-in convection gas grill with five 15,000-BTU main burners, dual infrared rotisserie back burners, 304 stainless steel construction, interior lighting, and a full-size rotisserie system.
Cal Flame 40" Top Gun 5-Burner Convection Built-In Gas Grill - BBQ19875CTG
1802 Chico Avenue
1802 Chico Avenue
South El Monte CA 91733
United States
Top Gun Convection Built-In Grill for 40" Outdoor Kitchen Layouts

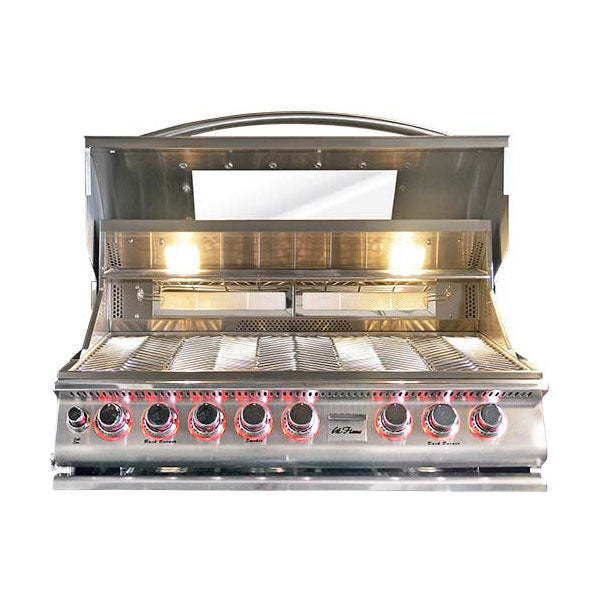

The Cal Flame 40" Top Gun 5-Burner Convection Built-In Gas Grill - BBQ19875CTG is Cal Flame's feature-rich convection grill, adding a hood viewing window, illuminated controls, and expanded rotisserie/smoking capability to the five-burner platform. It uses 5 cast stainless steel main burners and provides 1,000 sq. in. of cooking surface. Cal Flame currently identifies this model as BBQ19875CTG.
Before ordering, confirm the grill opening, fuel plan, and utility access for the island. Cal Flame sells these grills as LP models with manufacturer-supported natural-gas conversion on applicable current models; fuel conversion should follow the current Cal Flame instructions and be performed by a qualified technician.
Key Features

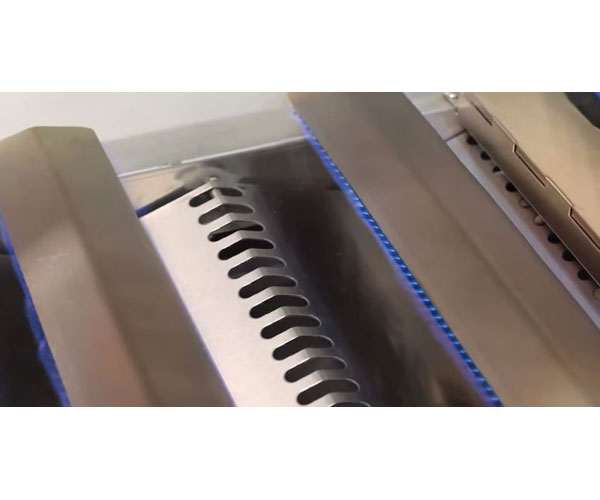

- 304 stainless steel construction
- 95,000 BTUs total output listed by Cal Flame
- Powered convection circulation

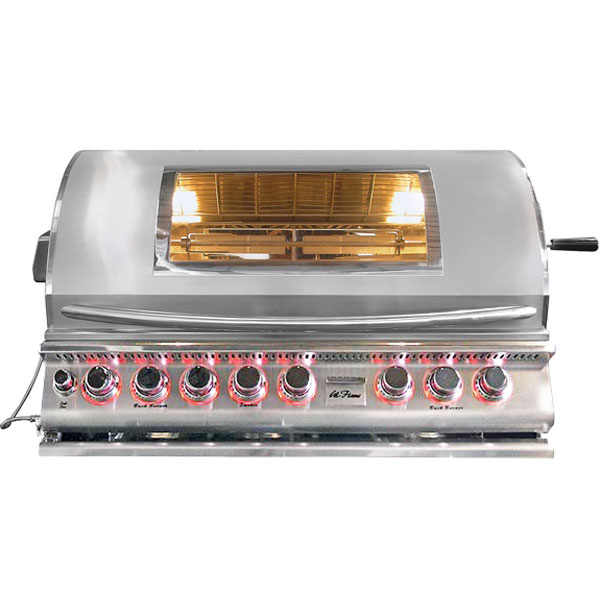

- Glass viewing window in the hood

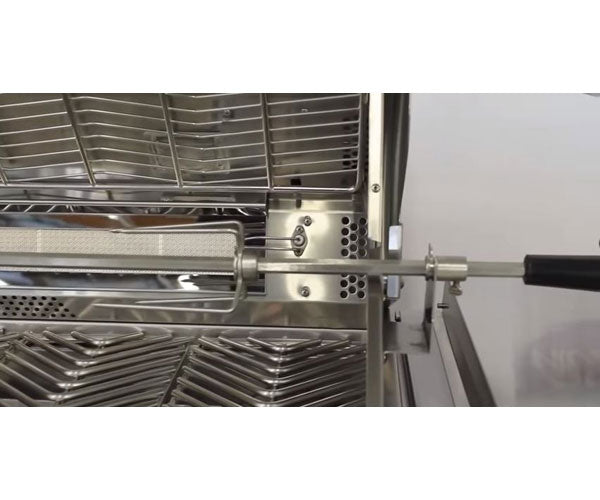

- Rear infrared rotisserie system
- Rotisserie with adjustable motor mount
- Dual halogen interior lights

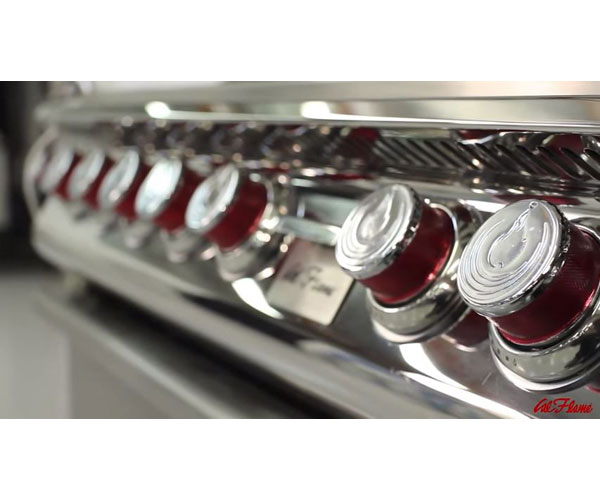

- Illuminated stainless steel control knobs
- Smoker box with independent burner
- Two-position full-width warming rack

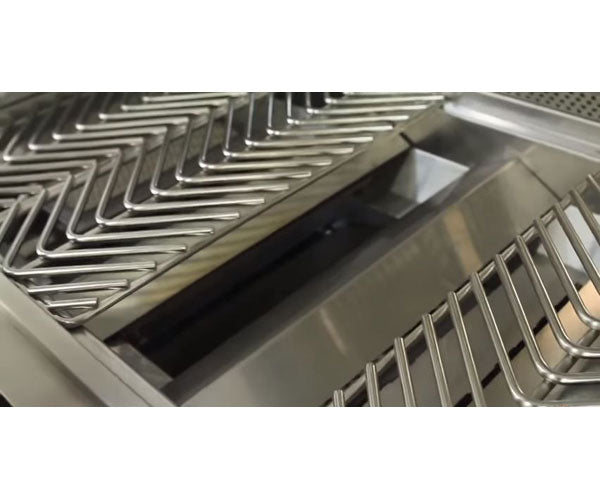

- Removable heavy-duty V-grates
Technical Specifications
| Brand | Cal Flame |
|---|---|
| Model | BBQ19875CTG |
| Product Type | Built-In Gas Convection Grill |
| Nominal Grill Size | 40" |
| Main Burners | 5 |
| Main Burner Output | 15,000 BTU each |
| Total Main-Burner Output | 75,000 BTU |
| Rotisserie Back Burners | 2 infrared back burners, 22,000 BTU total |
| Cooking Surface | 1,000 sq. in. |
| Construction | 304 stainless steel |
| Cooking Grates | Heavy-duty removable V-Grates |
| Warming Rack | Full-width, two-position |
| Ignition | Independent ignition for each main burner |
| Interior Lighting | Dual interior cooking lights |
| Rotisserie System | Full-size rotisserie system with adjustable motor mounting |
| Overall Dimensions | 39" W x 24" D x 22 7/16" H |
| Cutout Dimensions | 38 1/4" W x 22" D x 9 1/2" H |
| Included Accessories | Griddle tray and grill cover |
Installation & Ordering Notes
Use the current Cal Flame line drawing when building or modifying an island. Do not use the nominal grill width as the cutout dimension. Keep the gas shutoff, regulator, and required connections accessible, and follow the ventilation and clearance requirements in the current owner's manual.
Manuals & Documentation
Warranty
Cal Flame lists component-specific warranty coverage for this grill, including up to 10 years on the structure, stainless steel burners, and V-Grates, with shorter coverage periods on other components. Warranty terms, exclusions, labor, shipping, and eligibility requirements vary by component. Review Cal Flame's current written warranty before purchase or submitting a claim.
Frequently Asked Questions
What makes the Cal Flame Top Gun different from a standard 5-burner grill?
The Top Gun adds a convection cooking system, dual infrared rotisserie back burners, a full-size rotisserie setup, interior lighting, and a hood viewing window in addition to its five main cooking burners.

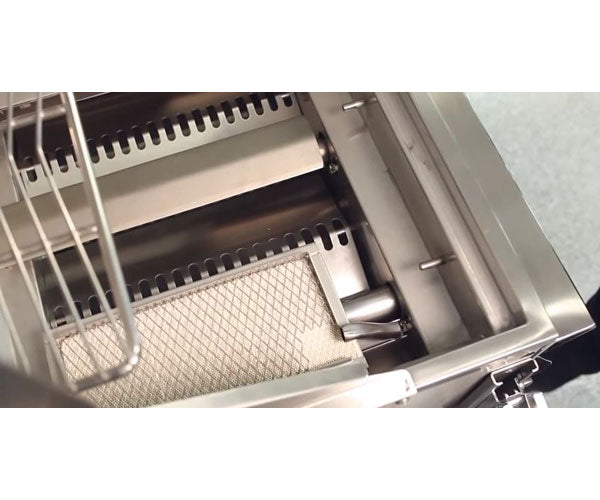

Can one of the main burners be replaced with a Sear Zone burner?
Yes. Cal Flame lists its optional Sear Zone burner as a replacement option for one of the standard main burner positions.
Is the Cal Flame Top Gun a good choice for a larger outdoor kitchen?
Yes. Its 40" size, five main burners, rotisserie system, and larger cooking surface make it better suited to outdoor kitchens where cooking capacity and entertaining space are priorities.
