P Series P6 Built-In Grill for 47" Outdoor Kitchen Layouts

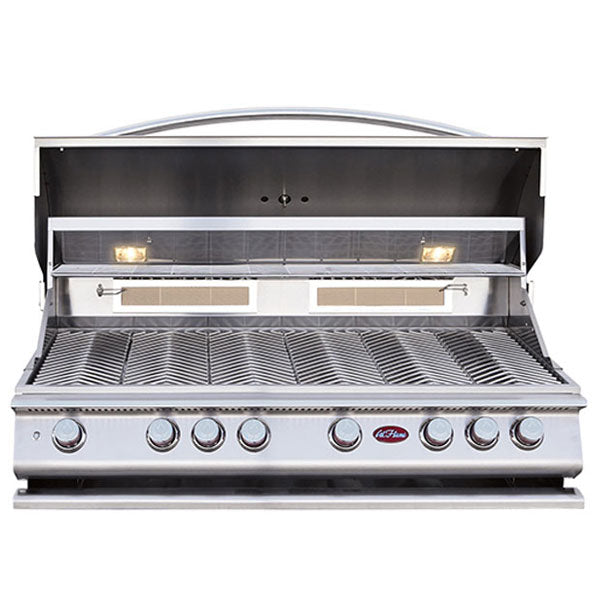

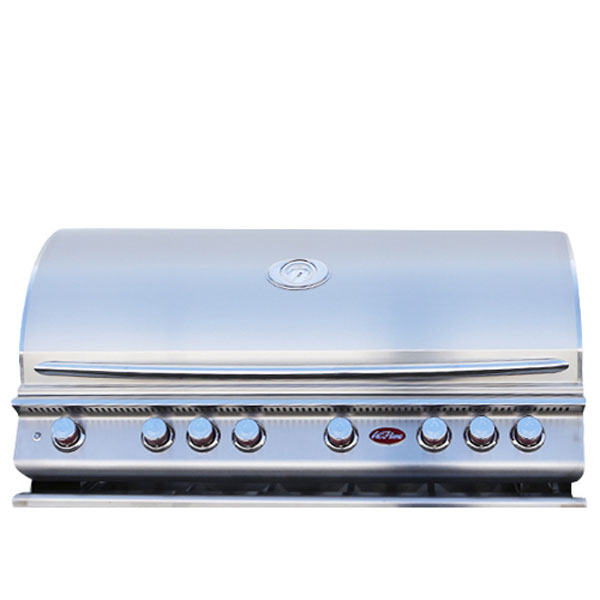

The Cal Flame 47" P Series P6 Built-In Gas Grill - BBQ19P06 is the largest P Series grill, intended for high-capacity outdoor kitchens that need six main burners and broad rotisserie capability. It uses 6 cast stainless steel main burners and provides 1,100 sq. in. of cooking surface. Cal Flame currently identifies this model as BBQ19P06.
Before ordering, confirm the grill opening, fuel plan and utility access for the island. Cal Flame sells these grills as LP models with manufacturer-supported natural-gas conversion on applicable current models; fuel conversion should follow the current Cal Flame instructions and be performed by a qualified technician.
Key Features
- 304 stainless steel construction
- Cal Flame lists 110,000 BTUs total output with six 15,000 BTU main burners and dual infrared rear burners
- Dual infrared rear burners
- Full-size rotisserie capability
- Dual halogen interior lights
- Two-position full-width warming rack
- Heavy-duty V-shaped cooking grates
- Independent burner ignition
- Full-width stainless steel drip tray
- Cal Flame lists a griddle tray, smoker box and grill cover with the P Series package
Technical Specifications
| Brand | Cal Flame |
|---|---|
| Model | BBQ19P06 |
| Series | P Series P6 |
| Product Type | Built-In Gas Grill |
| Main Burners | 6 cast stainless steel main burners |
| Burner Output | Cal Flame lists 110,000 BTUs total output with six 15,000 BTU main burners and dual infrared rear burners |
| Cooking Surface | 1,100 sq. in. |
| Construction | 304 stainless steel |
| Overall Dimensions | 46 1/2" W x 24" D x 22 7/16" H |
| Cutout Dimensions | 45 3/4" W x 22" D x 9 1/2" H |
Installation & Ordering Notes
Use the current Cal Flame line drawing when building or modifying an island. Do not use the nominal grill width as the cutout dimension. Keep the gas shutoff, regulator and required connections accessible, and follow the ventilation and clearance requirements in the current owner manual.
Manuals & Documentation
Warranty
10-year structure, stainless steel burners and V-grates; 3-year flame tamers and warming rack; 1-year gas valves and other listed components under current Cal Flame terms.
Frequently Asked Questions
How much cooking space does this grill provide?
The listed cooking surface is 1,100 sq. in..
Can this Cal Flame grill use natural gas?
Cal Flame currently supports natural-gas conversion for applicable G, P and Convection Series grills using the manufacturer-specified conversion kit and procedure. Have the conversion performed by a qualified technician and follow the current manual.
