Convection Series Built-In Grill for 32" Outdoor Kitchen Layouts

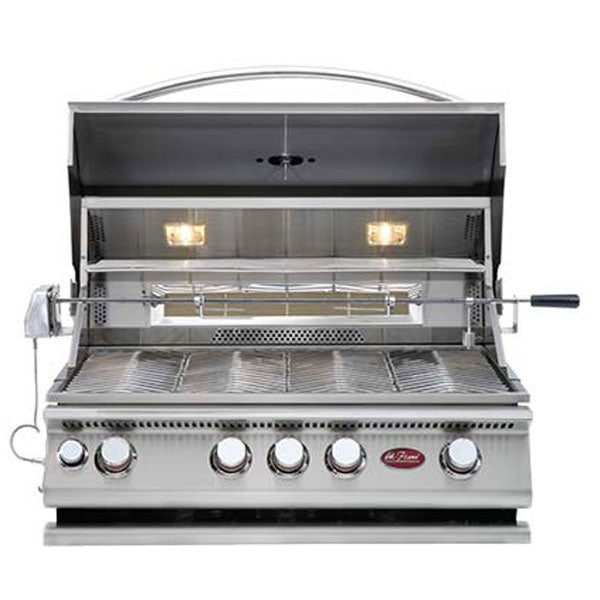

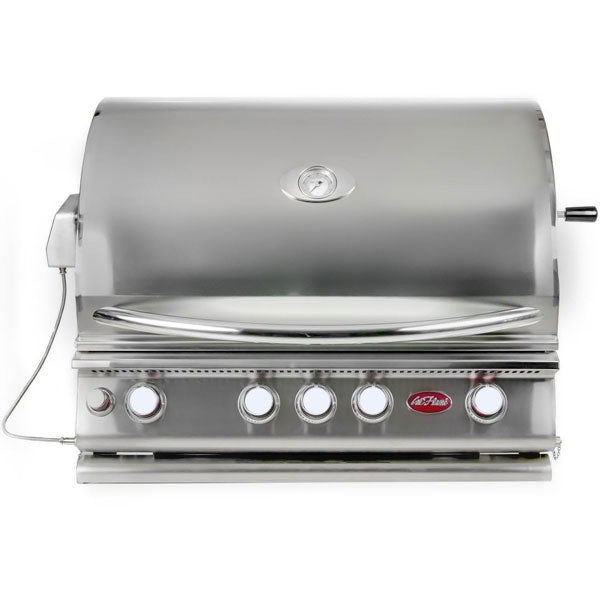

The Cal Flame 32" 4-Burner Convection Built-In Gas Grill - BBQ19874CP is a four-burner built-in grill that adds powered convection circulation for more even closed-hood cooking and quicker heat movement through the grill cavity. It uses 4 cast stainless steel main burners and provides 800 sq. in. of cooking surface. Cal Flame currently identifies this model as BBQ19874CP.
Before ordering, confirm the grill opening, fuel plan and utility access for the island. Cal Flame sells these grills as LP models with manufacturer-supported natural-gas conversion on applicable current models; fuel conversion should follow the current Cal Flame instructions and be performed by a qualified technician.
Key Features
- 304 stainless steel construction
- 72,000 BTUs listed total; 4 x 15,000 BTU main burners plus rear-infrared/convection system output
- Powered convection fan system
- Rear infrared burner for rotisserie cooking

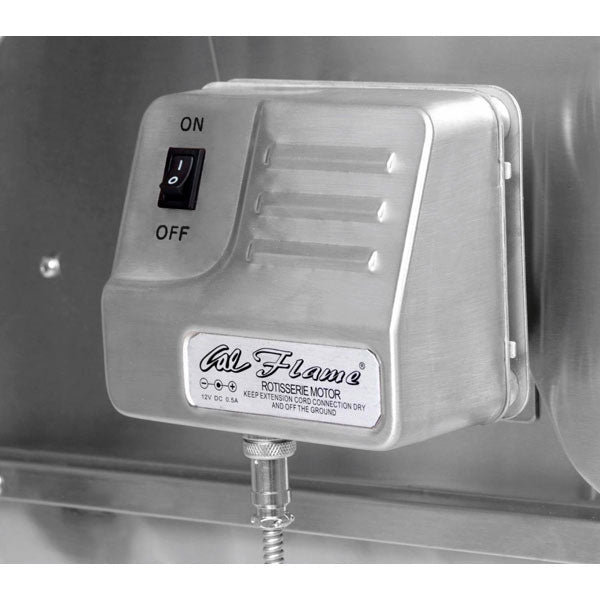

- Full-size rotisserie rod rated by Cal Flame for up to 35 lb.
- Interior grill lighting
- Two-position full-width warming rack

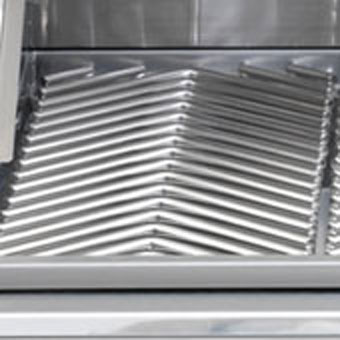

- Removable heavy-duty V-grates
- Independent burner ignition
- Full-width drip tray
Technical Specifications
| Brand | Cal Flame |
|---|---|
| Model | BBQ19874CP |
| Series | Convection Series |
| Product Type | Built-In Gas Grill |
| Main Burners | 4 cast stainless steel main burners |
| Burner Output | 72,000 BTUs listed total; 4 x 15,000 BTU main burners plus rear-infrared/convection system output |
| Cooking Surface | 800 sq. in. |
| Construction | 304 stainless steel |
| Overall Dimensions | 31 3/4" W x 24" D x 22 7/16" H |
| Cutout Dimensions | 30 7/8" W x 22" D x 9 1/2" H |
Installation & Ordering Notes
Use the current Cal Flame line drawing when building or modifying an island. Do not use the nominal grill width as the cutout dimension. Keep the gas shutoff, regulator and required connections accessible, and follow the ventilation and clearance requirements in the current owner manual.
Manuals & Documentation
Warranty
10-year structure, stainless steel burners and V-grates; 3-year flame tamers and warming rack; 1-year gas valves and other listed components under current Cal Flame terms.
Frequently Asked Questions
How much cooking space does this grill provide?
The listed cooking surface is 800 sq. in..
Can this Cal Flame grill use natural gas?
Cal Flame currently supports natural-gas conversion for applicable G, P and Convection Series grills using the manufacturer-specified conversion kit and procedure. Have the conversion performed by a qualified technician and follow the current manual.
