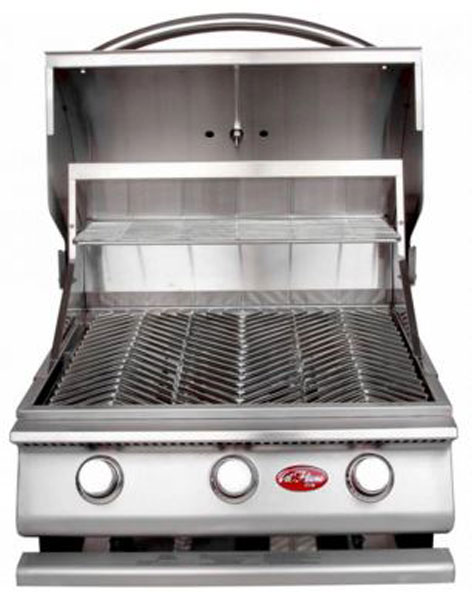

Cal Flame G3 Built-In Grill for Compact Outdoor Kitchens
The Cal Flame G3 BBQ18G03 is the compact 3-burner model in the G-Series built-in grill lineup. It gives smaller outdoor kitchens a full-width grilling surface without requiring the cabinet space of the larger G4 or G5 models.

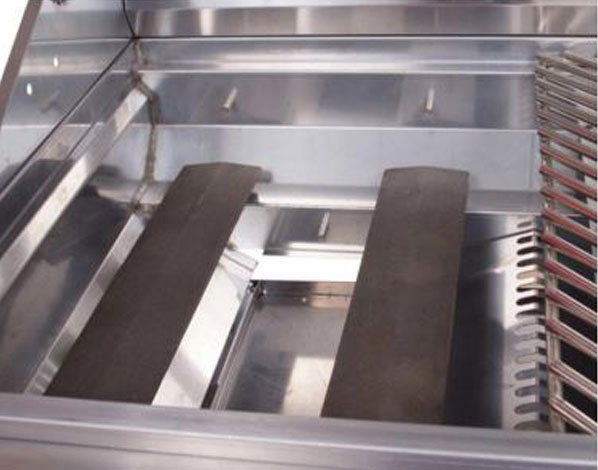

Three porcelain-coated cast-iron burners provide 45,000 BTUs of total cooking power across a 600-square-inch cooking surface. The grill uses 430 stainless steel construction with double-wall body panels, Cal Flame V-Grates, a full-width warming rack, and individual burner ignition controls.
Key Features
- Three porcelain-coated cast-iron burners
- 45,000 BTUs of total burner output
- 600 sq. in. cooking surface
- 430 stainless steel construction
- Double-wall grill body

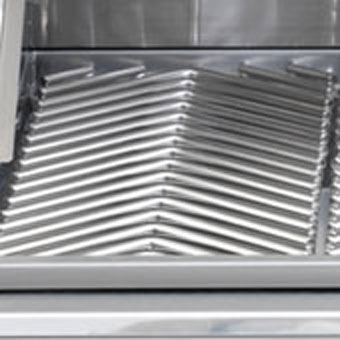

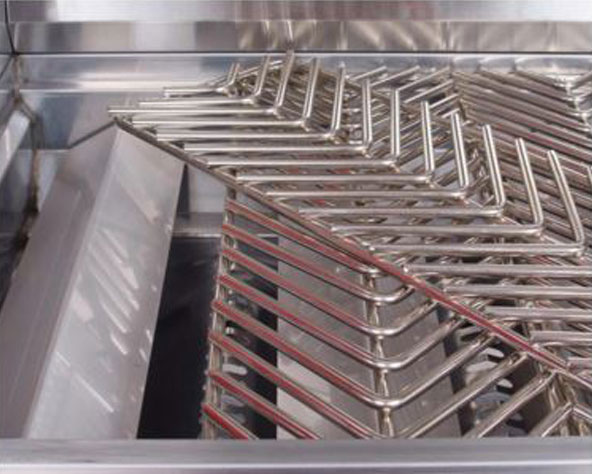

- Removable Cal Flame V-Grates
- Individual burner ignition controls

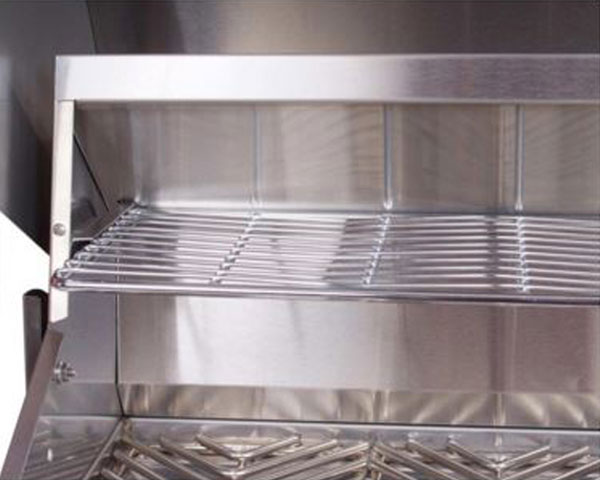

- Two-position full-width warming rack
- Full-width stainless steel drip tray on rollers

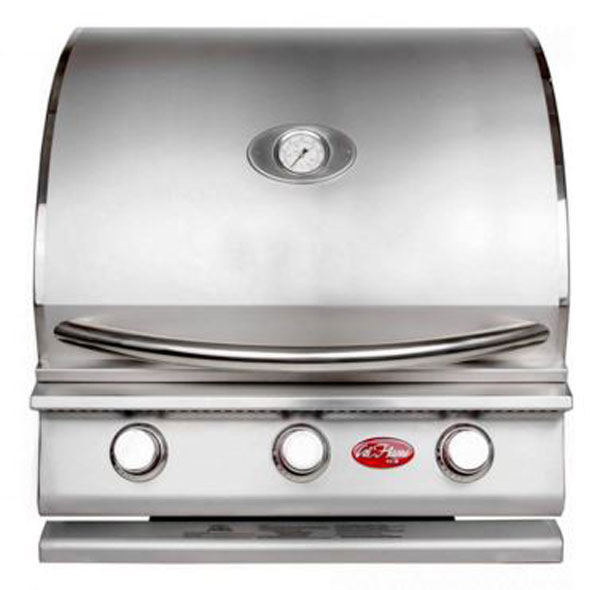

- Built-in temperature gauge
- Vented knob splash guards and burner lip guards
Technical Specifications
| Brand | Cal Flame |
|---|---|
| Model | BBQ18G03 |
| Series | G-Series |
| Product Type | Built-In Gas Grill |
| Main Burners | 3 |
| Burner Type | Porcelain-coated cast iron |
| Total Burner Output | 45,000 BTU |
| Cooking Surface | 600 sq. in. |
| Construction | 430 stainless steel |
| Overall Dimensions | 24 1/2" W x 24" D x 22 7/16" H |
| Cutout Dimensions | 23 3/8" W x 22" D x 9 1/2" H |
Installation & Ordering Notes
- The G3 is designed for built-in outdoor kitchen installations.
- Use the current Cal Flame installation dimensions before fabricating the grill opening.
- Keep gas connections, shutoff valves, and regulators accessible after installation.
- Follow the current Cal Flame owner's manual for ventilation, clearances, and gas-supply requirements.
Manuals & Documentation
Warranty
10-year structural; 3-year flame tamer and warming rack; 1-year porcelain-coated burners and other listed components under current Cal Flame terms.
Frequently Asked Questions
Is the Cal Flame G3 a good choice for a smaller outdoor kitchen?
Yes. The G3 is the smallest gas grill in Cal Flame's current G-Series lineup, making it a practical choice when grill-island space is limited but you still want three main burners.
What type of burners does the Cal Flame G3 use?
The G3 uses three porcelain-coated cast-iron burners. Together, they provide 45,000 BTUs of total burner output.
How does the G3 compare with the larger G-Series grills?
The G3 is the compact 3-burner model. The G4 and G5 provide larger grill bodies and additional burners, so the G3 is better suited to projects where available island space is an important consideration.
