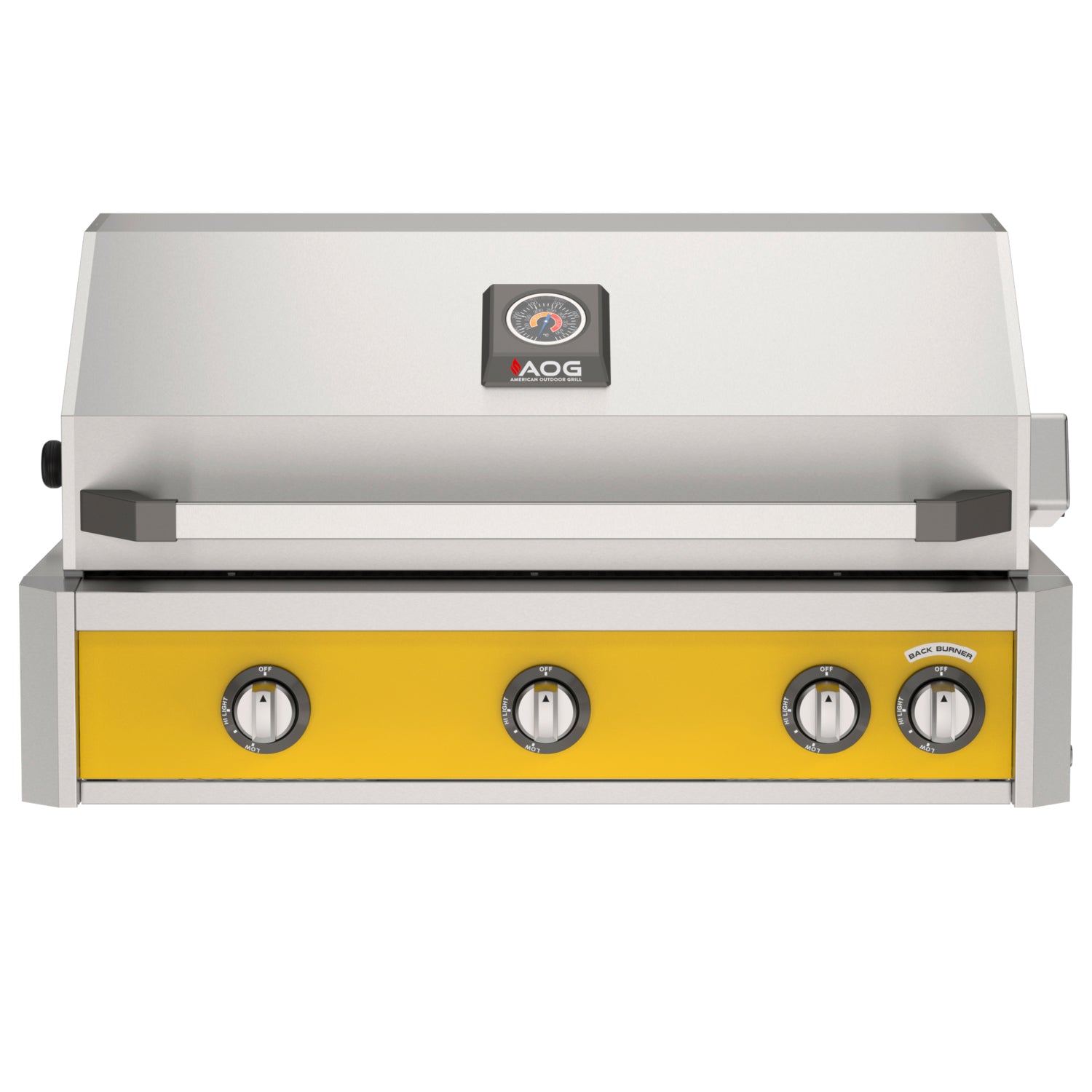

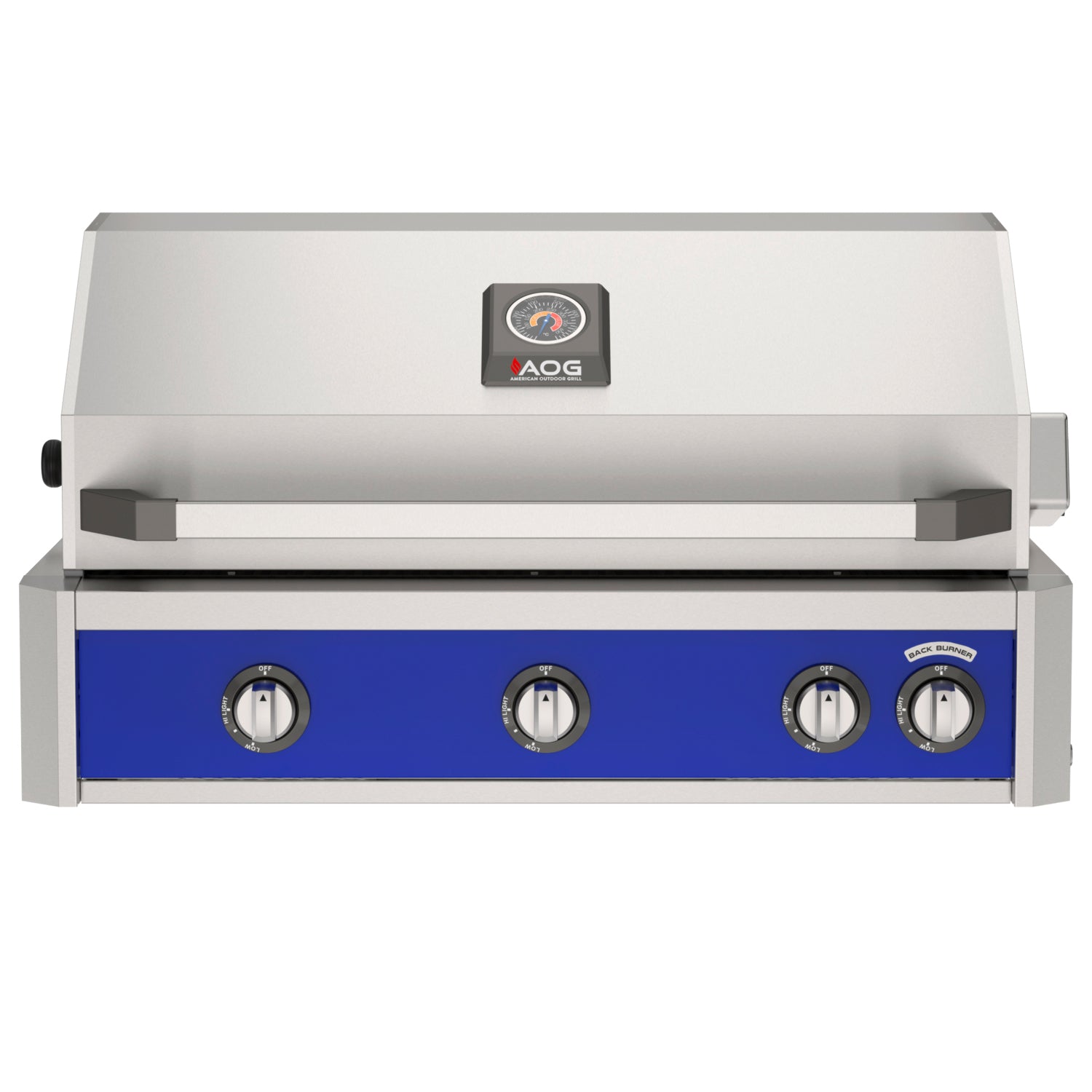

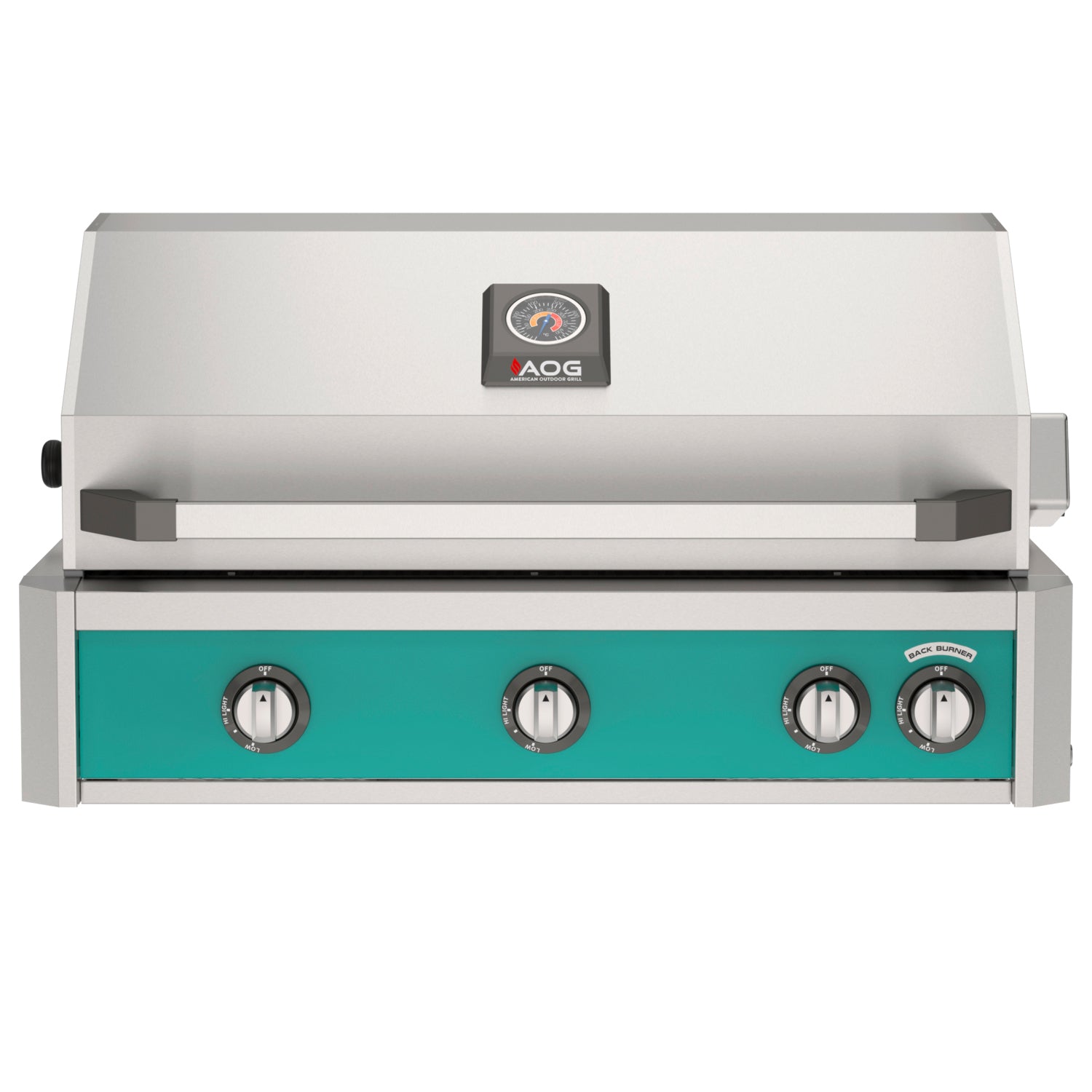

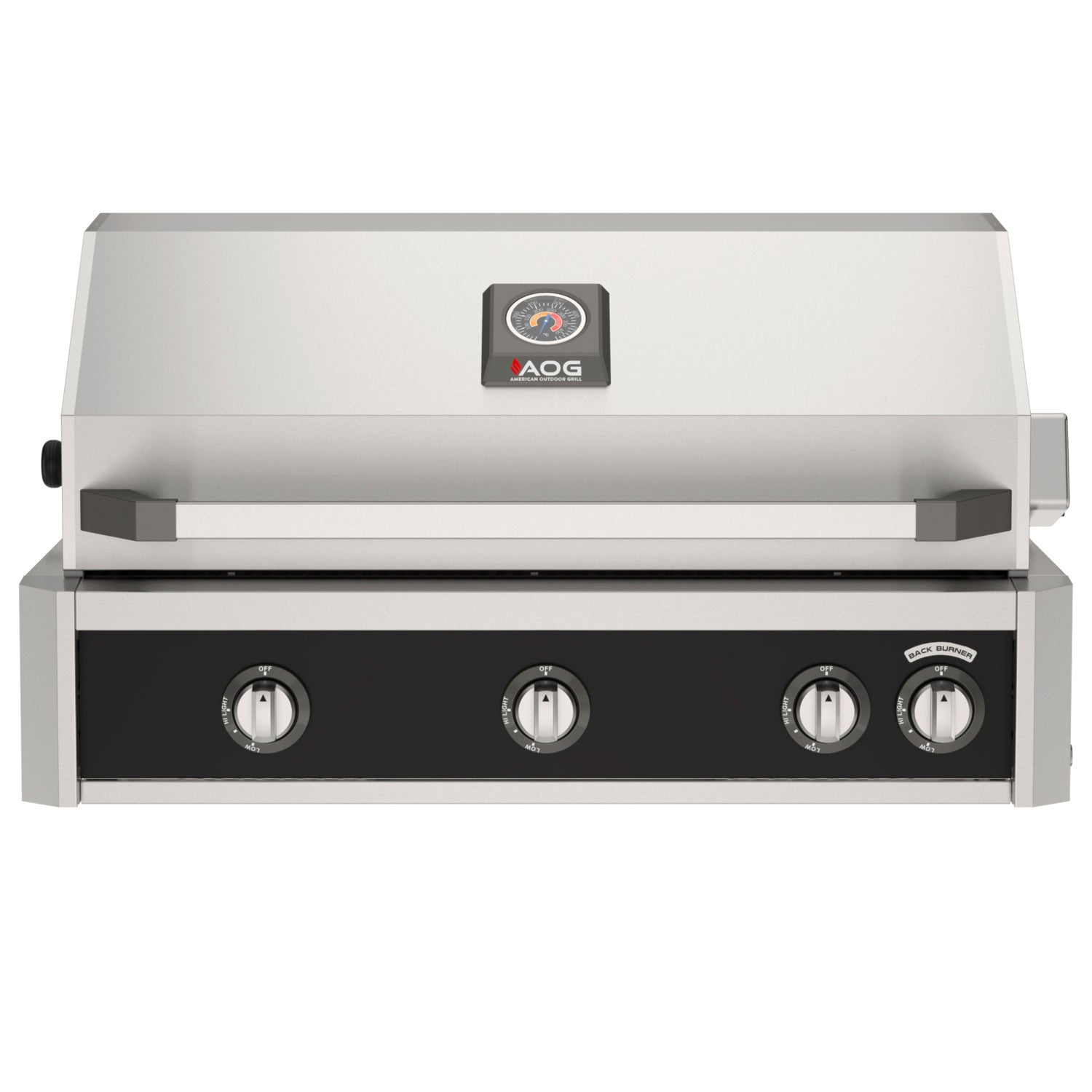

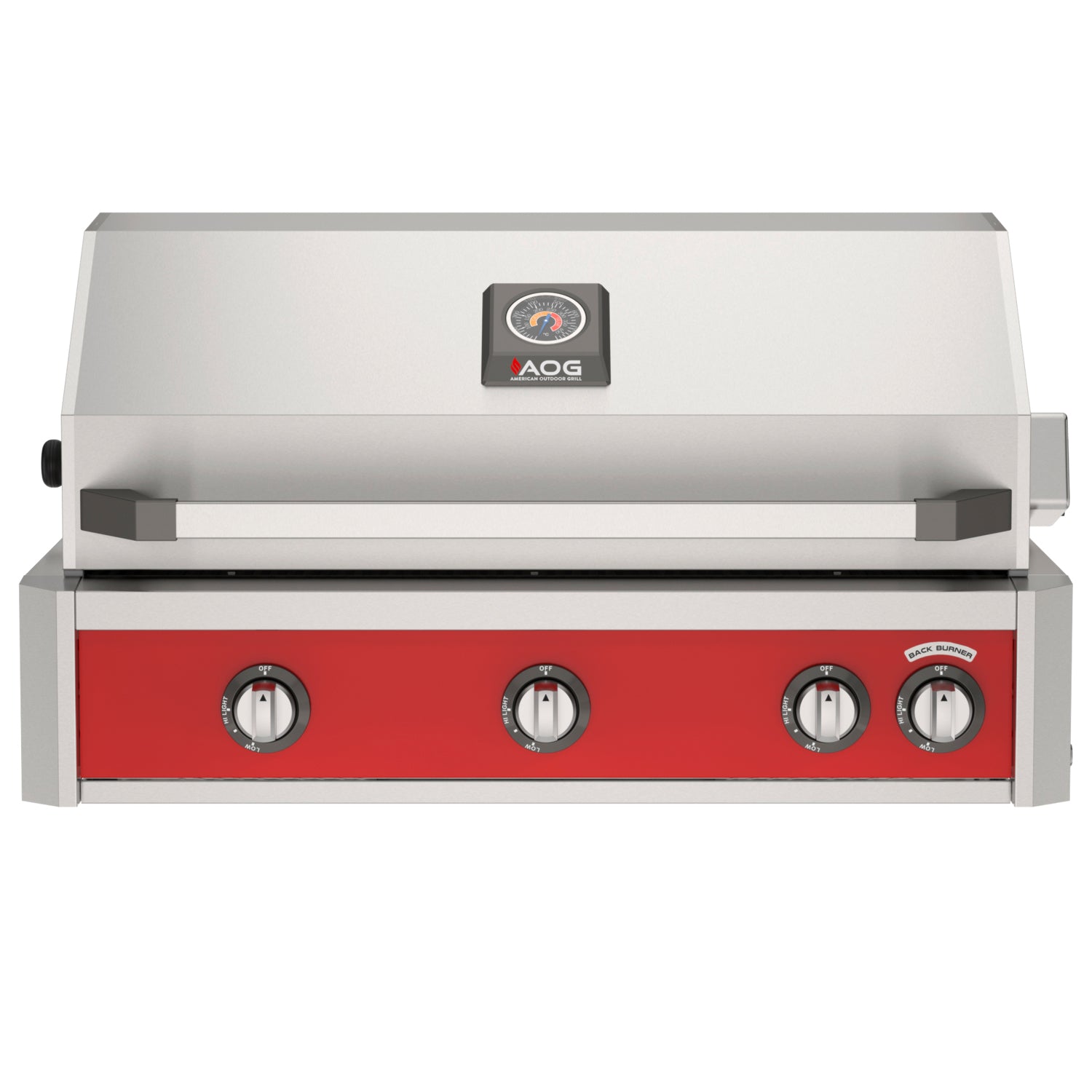

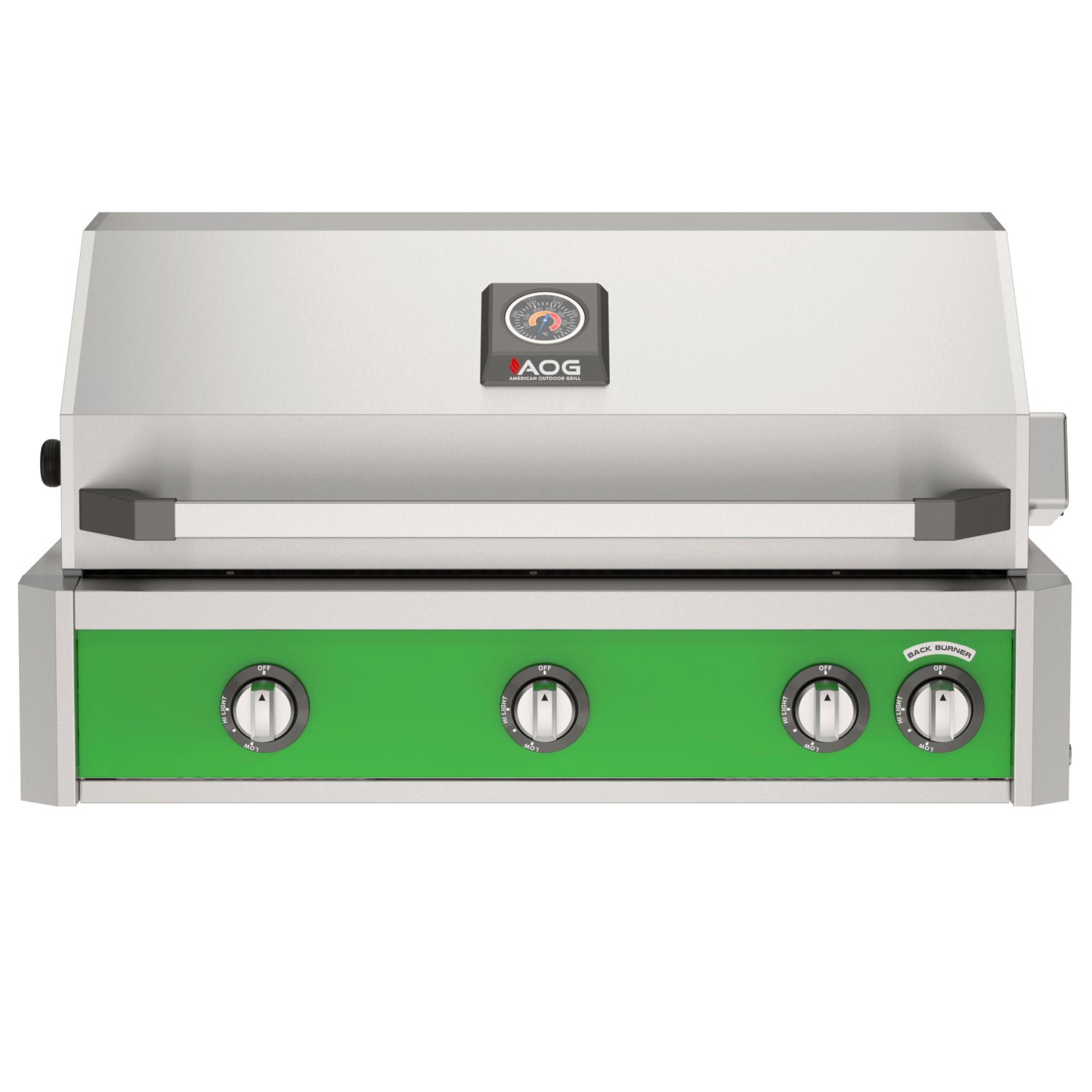

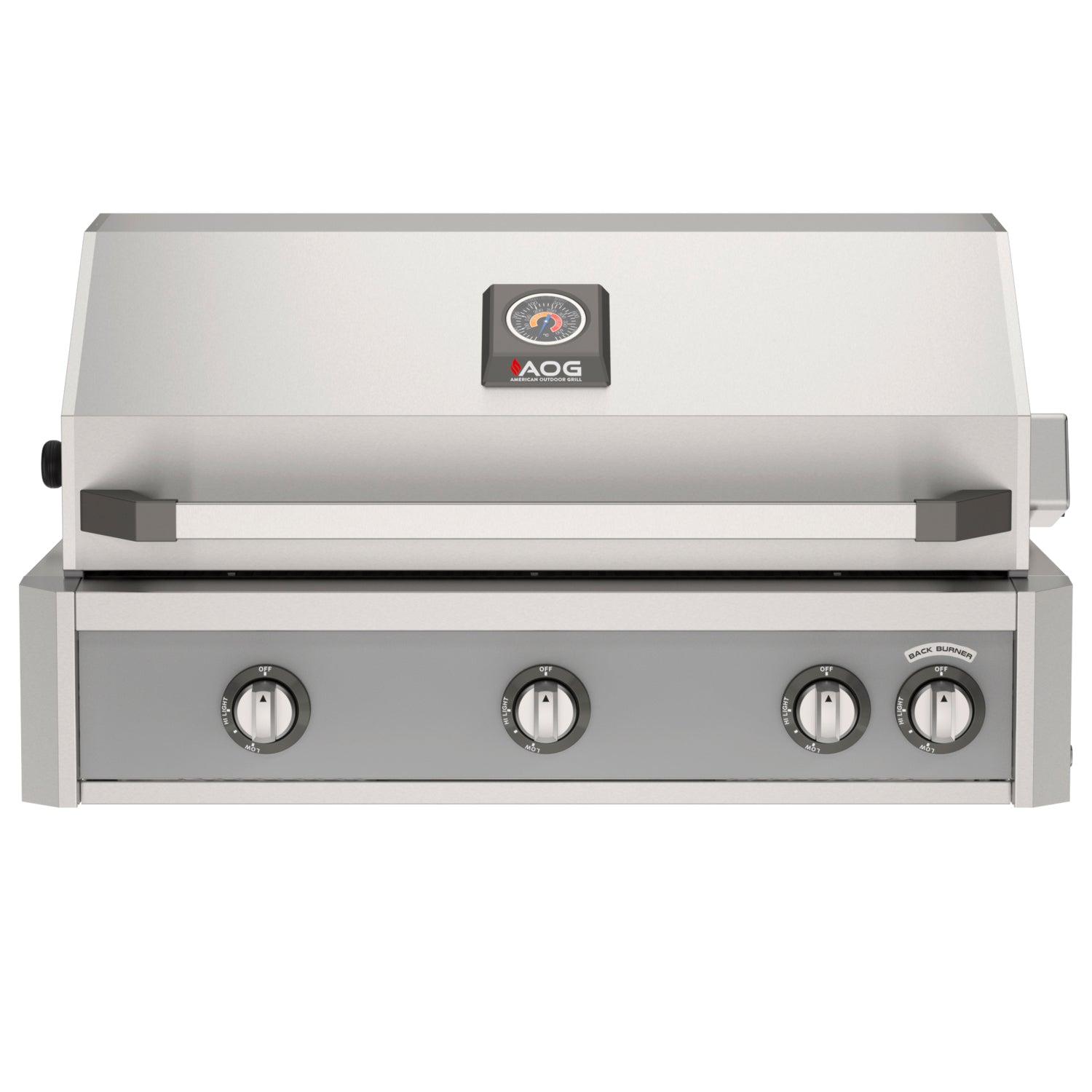

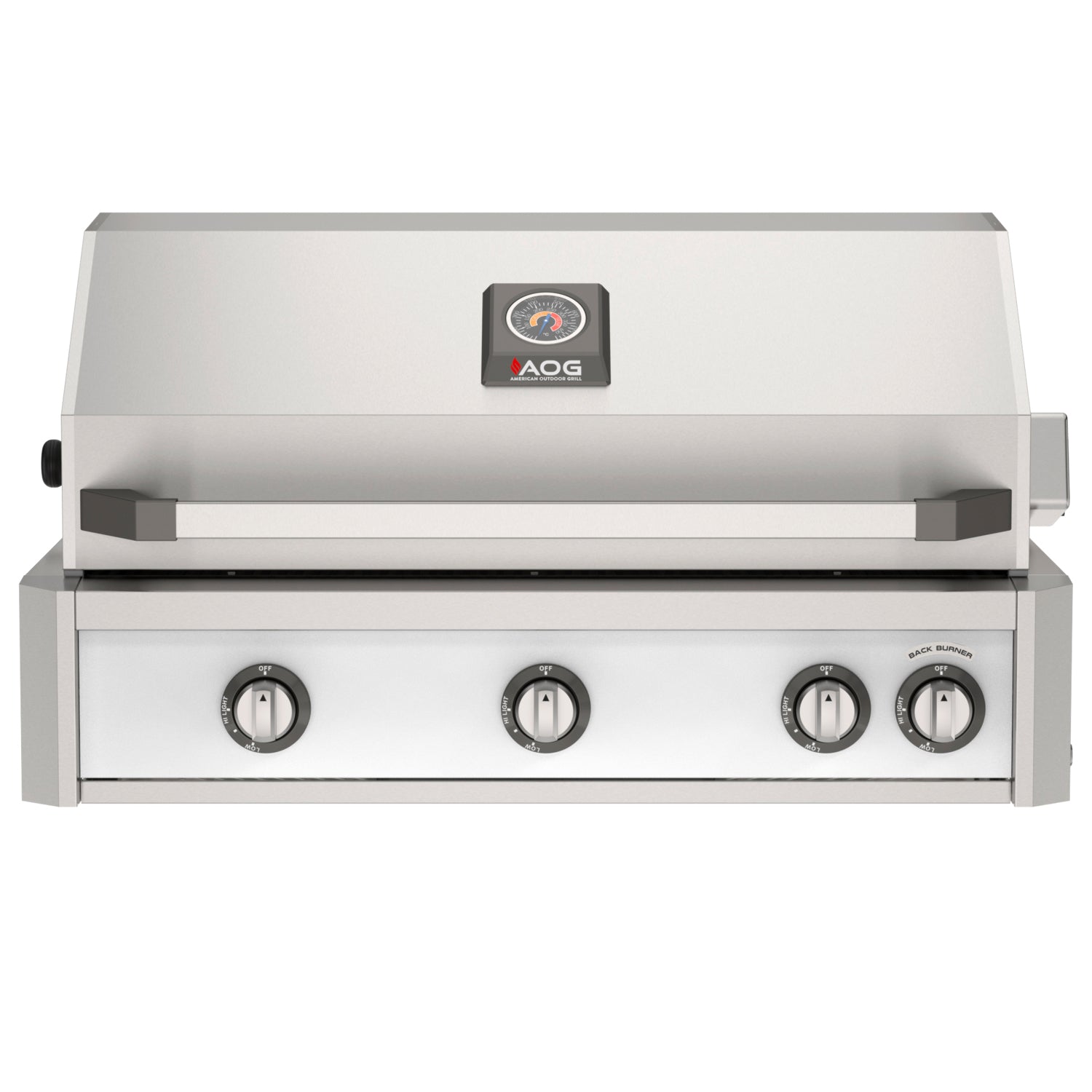

Control Panel Color Options
AOG 36" L-Series Built-In Gas Grill - Natural Gas- AOG36LN

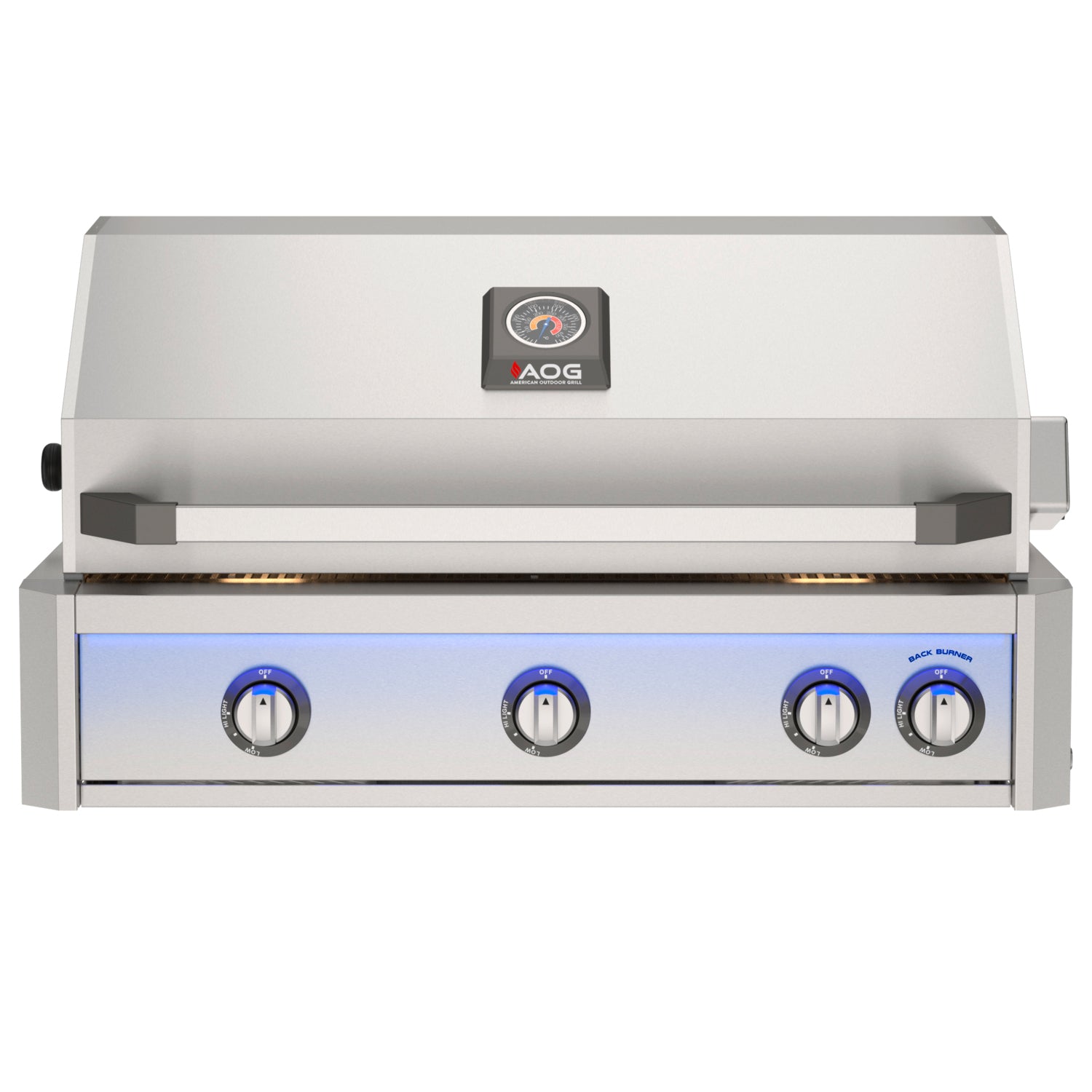

Stainless Steel Control Panel
1802 Chico Avenue
1802 Chico Avenue
South El Monte CA 91733
United States
AOG 36" L-Series Built-In Grill - Natural Gas
Product Description
The AOG 36" L-Series Built-In Gas Grill - Natural Gas is ideal for outdoor kitchens needing the most extensive AOG L-Series cooking area connected to a fixed gas source. This 36" model features a spacious stainless steel cooking surface along with the enhanced L-Series features, such as interior halogen lights, a multi-color light bar, and an infrared backburner with rotisserie support. It is well-suited for larger islands where the grill functions as the main cooking station.
Installation Cutout: 36 3/4" W x 19 1/2" D x 8 1/2" H
Key Features
- 648 sq. in. primary cooking surface for larger outdoor cooking sessions

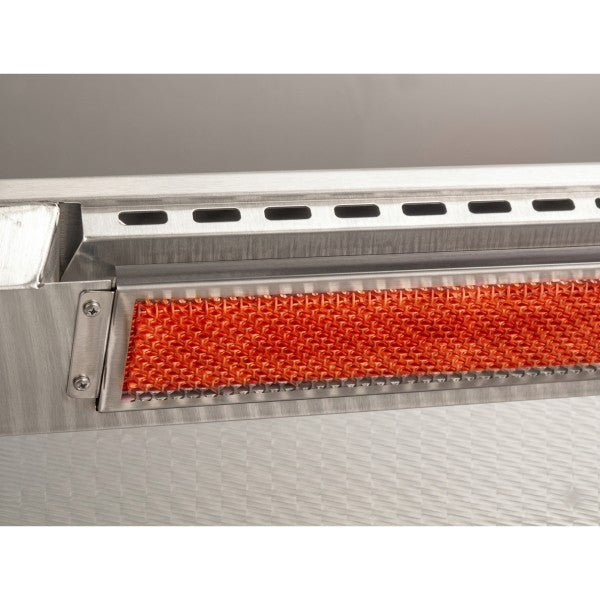

- 50,000 BTUs of primary burner output plus a 12,000 BTU infrared backburner

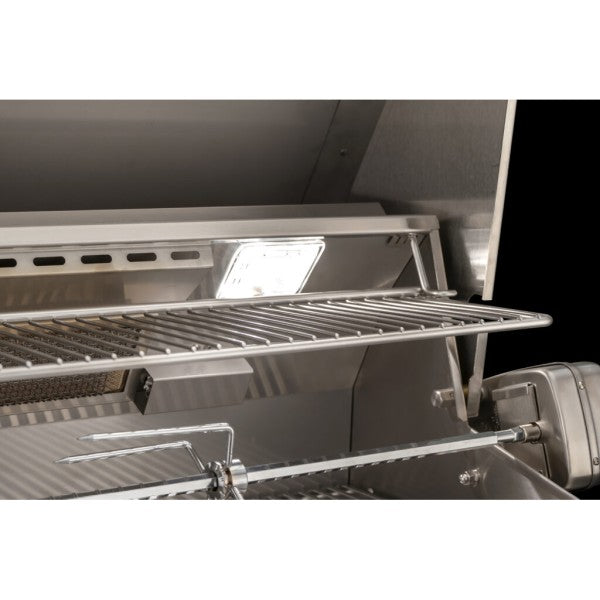

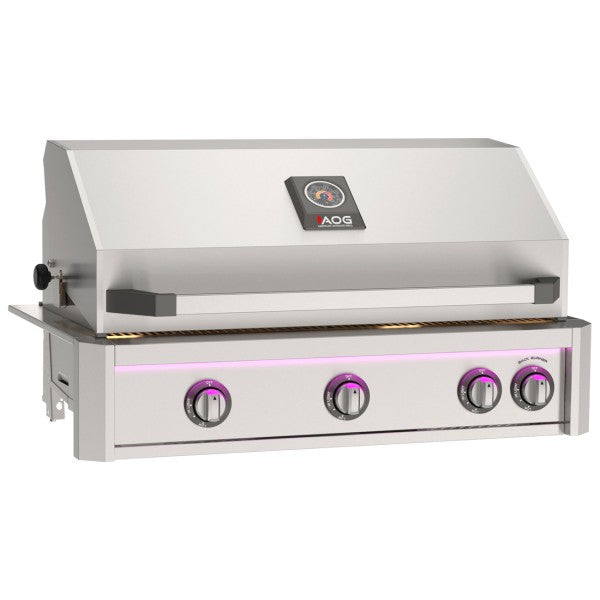

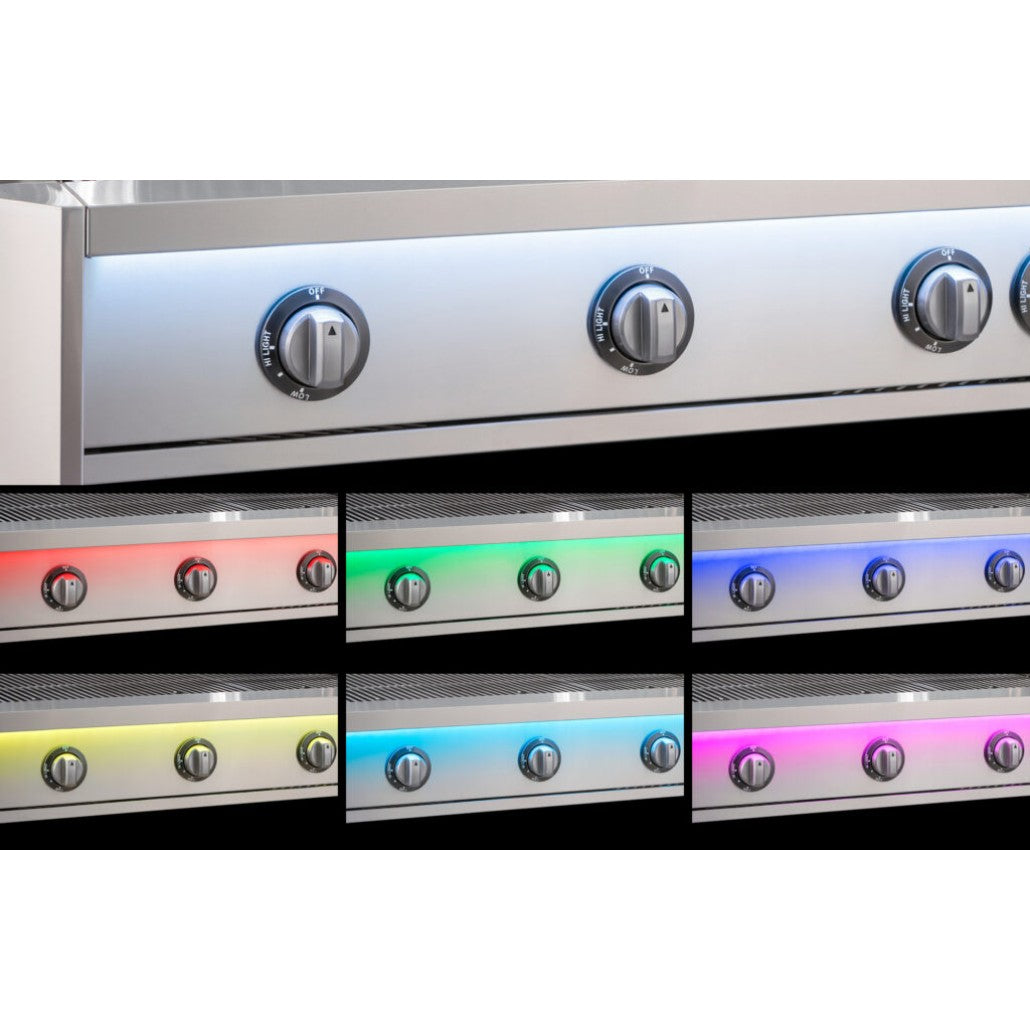

- Interior halogen lights and a multi-color light bar for better nighttime visibility

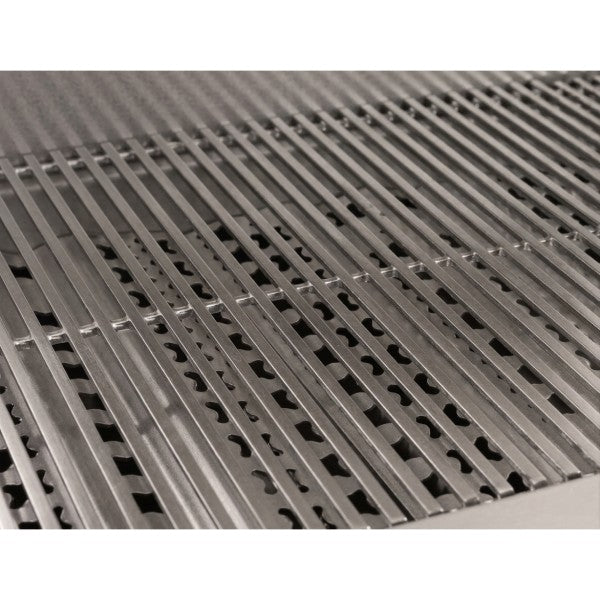

- Diamond Sear stainless steel cooking grids with stainless warming rack
- Built-in natural gas configuration with rotisserie-ready L-Series design
- Optional control panel colors available
For outdoor kitchens already planned around a permanent natural gas connection, this version is especially useful because it supports longer cooking sessions without the fuel-change planning required with propane. The larger 36" format gives the grill better capacity for entertaining and multi-zone cooking, while the L-Series lighting package adds practical value for evening use and after-dark service. The AOG product catalog and specifications guide also state that L-Series grills require 120 Volt AC power, so the enclosure should be planned around both gas and electrical access.
Why Buy
This model is the better choice when you want the largest AOG L-Series built-in grill, and the project already has natural gas in place. It gives a larger island more cooking capacity, stronger nighttime usability, and a more permanent utility plan for outdoor kitchens built around regular use.
FAQ
Q: What makes the AOG36LN different from the 36" T-Series grill?
A: The L-Series adds interior halogen lights, a multi-color light bar, and an infrared backburner with rotisserie support, while the T-Series is the simpler line without those L-Series lighting features.
Q: What fuel type is this 36" L-Series model built for?
A: This item is a natural gas setup, but has a Propane Version: AOG36LP
Q: Does this grill require electricity?
A: Yes. L-Series grills require 120 Volt AC power.
Q: Is this the natural gas version?
A: Yes. AOG36LN is the natural gas version of the 36" L-Series built-in grill.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | AOG |
| Model Number | AOG36LN |
| Series | L-Series |
| Fuel Type | Natural Gas |
| Configuration | 36" built-in gas grill |
| Primary Cooking Surface | 648 sq. in. |
| BTU Output | 50,000 primary + 12,000 backburner |
| Cutout Dimensions | 36 3/4" W x 19 1/2" D x 8 1/2" H |
| Countertop Overhang Cutout | 40 3/4" W |
| Overall Dimensions | 40 1/8" x 25 7/8" x 22 1/4" |
| Power Requirement | 120 Volt AC |
Expert Installation & Performance Notes
The enclosure should be built on a hard, level surface, and the cutout should follow the listed built-in dimensions and countertop overhang allowance. Because this is an L-Series model, electrical planning matters as much as gas planning. The AOG specifications guide also notes that if a solid area exists beneath the unit, a 1 1/2" round or square hole is needed for electrical supply access.
Manual / Spec Sheet Links
Free Shipping: Enjoy Free Standard Shipping on all orders over $299 within the contiguous United States.
Processing Time: Most orders are processed and shipped within 5–7 business days.
Delivery Estimates: * Small Items: Delivered via UPS/FedEx (approx. 3–7 business days).
Large Items (LTL Shipping): Delivered via Curbside Freight. The carrier will call you to schedule a delivery window. Note: Someone must be present to sign for freight deliveries.
Inspection Tip: Please inspect your package upon arrival. If you notice any visible damage, note it on the delivery receipt before signing.
Order Tracking: You’ll receive a tracking number via email as soon as your order heads out.
The content on our site is intended to be used for customer information only. Please read all manuals and documentation (i.e. Product packaging, owners’ manuals, installation instructions, and/or operating instructions) pertaining to your purchase before installing or using the purchased product, as it may include more detailed information than what is shown on our website.
WARNING for California residents: this product may contain chemical(s) classified by the state of California to cause birth defects, cancer, or other reproductive harm. For More Information visit www.p65warnings.ca.gov
American Outdoor Grill warrants your grill to be free from defects in material and workmanship.
American Outdoor Grill stainless-steel burners and stainless-steel barbecue housings are warranted for as long as the original purchaser owns them -- LIFETIME.
American Outdoor Grill Diamond sear stainless-steel cooking grids are warranted for FIFTEEN (15) YEARS.
American Outdoor Grill valves, controls, manifolds and vent hood housings are warranted for TEN (10) YEARS. (Except as noted below.)

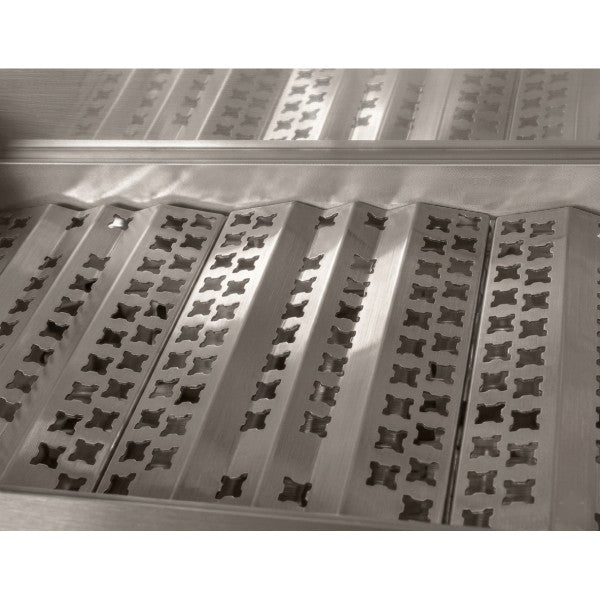

American Outdoor Grill backburners, rotisserie kits, vaporizer panels, and exterior Glass Fiber Reinforced Concrete (GFRC) grill island systems are warranted for THREE (3) YEARS.
American Outdoor Grill ignition systems (excluding batteries), electronic components (including vent hood controls and blowers), grill parts and accessories are warranted for TWO (2) YEARS.
